0432-INS-400 Rev. E
5-3
• POD / ID Select
Pod / ID indicates which WeldWise™ 2400 ID is currently selected. The factory setting is 60.
• Weld Status Indicators
Indicates the status of the displayed weld. If a check mark is displayed then the weld was accepted.
If a flashing up or down arrow is displayed then the weld was rejected.
• Job Status Indicators
Indicate whether any weld made in a series of welds has been rejected. If all of the welds have
accepted, a check mark is displayed. If any one of them has rejected, either one or both of the
arrows will flash, the same as in the Weld Status box. By selecting the Weld Summary option in
the Data Menu, you can find out which weld(s) were rejected. See Chapter 6, WMS Reference
Guide for more details.
Smaller arrows are displayed to the right of the bar graphs for each parameter display. While the
big arrows in the both the Weld Status and Job Status boxes tell you if any of the multiple
parameters are over or under limit, these smaller arrows will show up next to the failed parameter.
If the arrow points up, the parameter was over the tolerance limit; down signifies it was under the
tolerance limit. Remember, if no master has been updated or masters are not enabled, all weld
parameters will fail by default and the arrows will flash.
• Clear Indicator Button
This button at the bottom of the Job Status box will clear all flashing arrows from the screen and
display check marks.

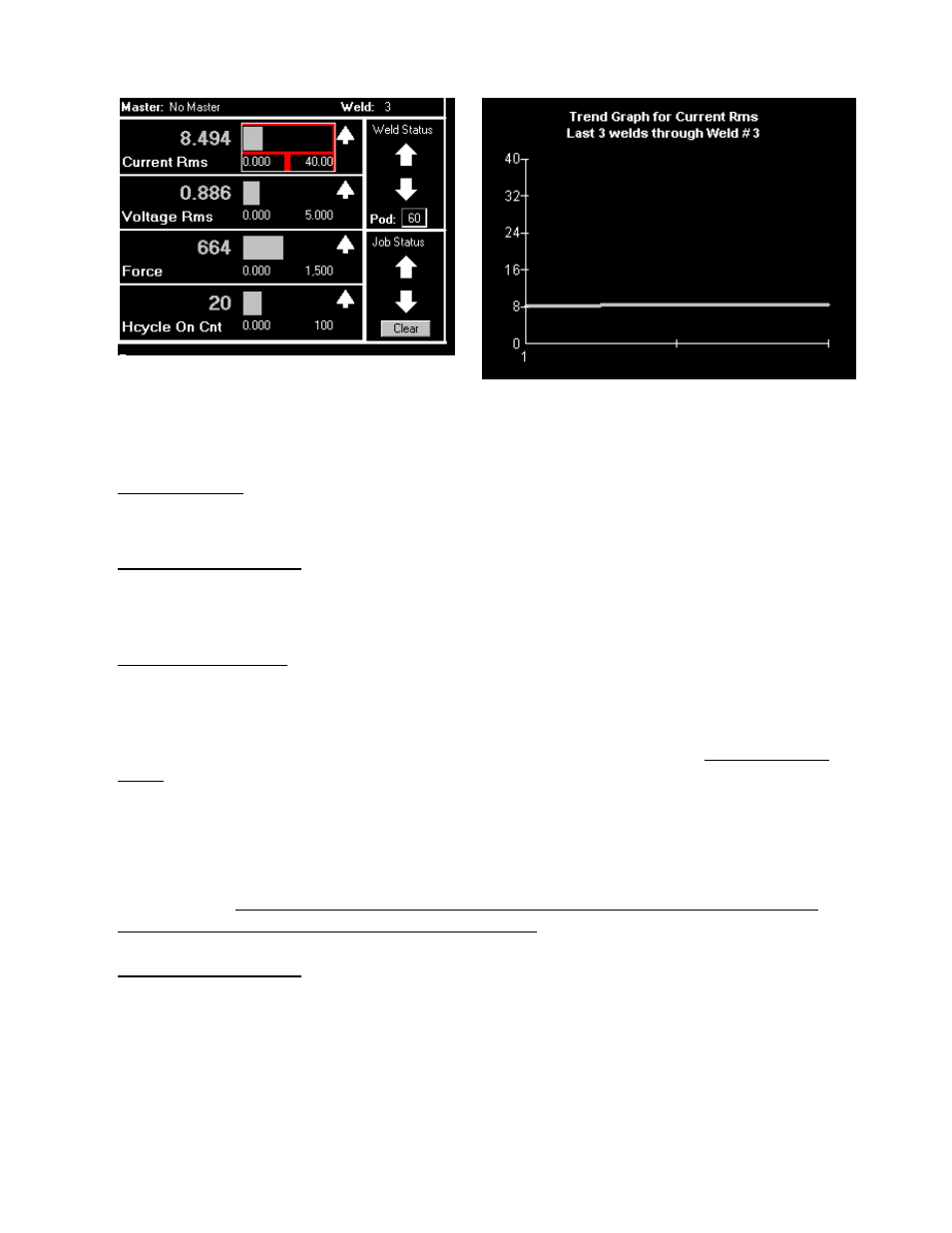

Figure 5-3 Select the bar graph to the right of a
parameter (shown here with an outline around
it) by touching the graph on the screen.
Figure 5-4 The Trend Graph for the selected
parameter will display information for up to 30 welds.
