Testing Sensor Installation
This quick test will verify if all sensors have been properly installed by confirming that the weld
monitor is receiving incoming sensor readings. To test the sensor installation, the WeldWise™ 2400
must be installed and the WMS program running.
Note:
Incoming sensor readings will not be accurate if the sensors have not been calibrated.
Current Toroid
Non-conductive Toroid Support
Voltage Leads
In-line Pressure Transducer
Mounting Bracket
Voltage Noise Suppression Filter
Double Rod End Displacement Sensor

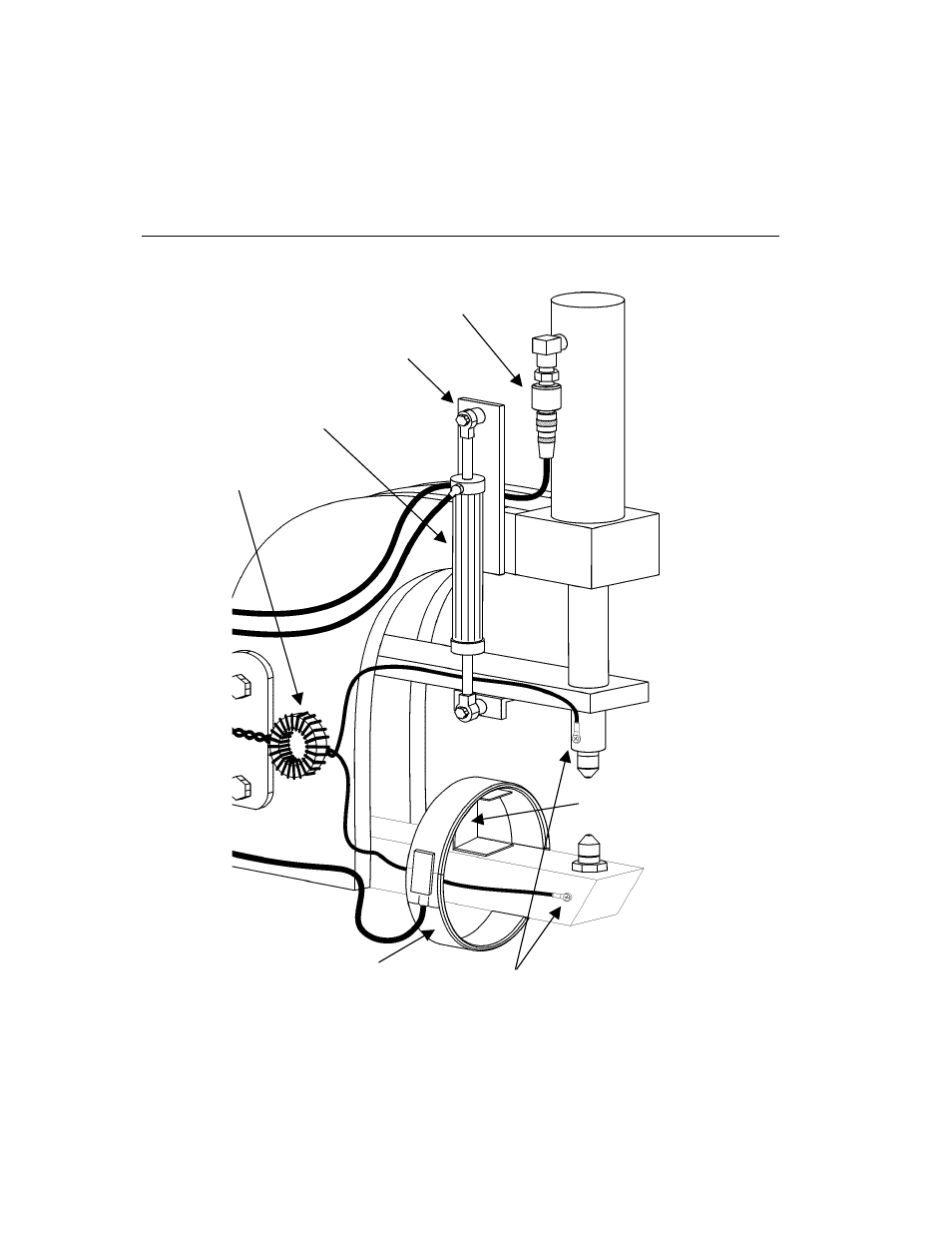

Figure 7-5 Example of a welder with all four sensors attached
