0432-INS-400 Rev. E
5-5

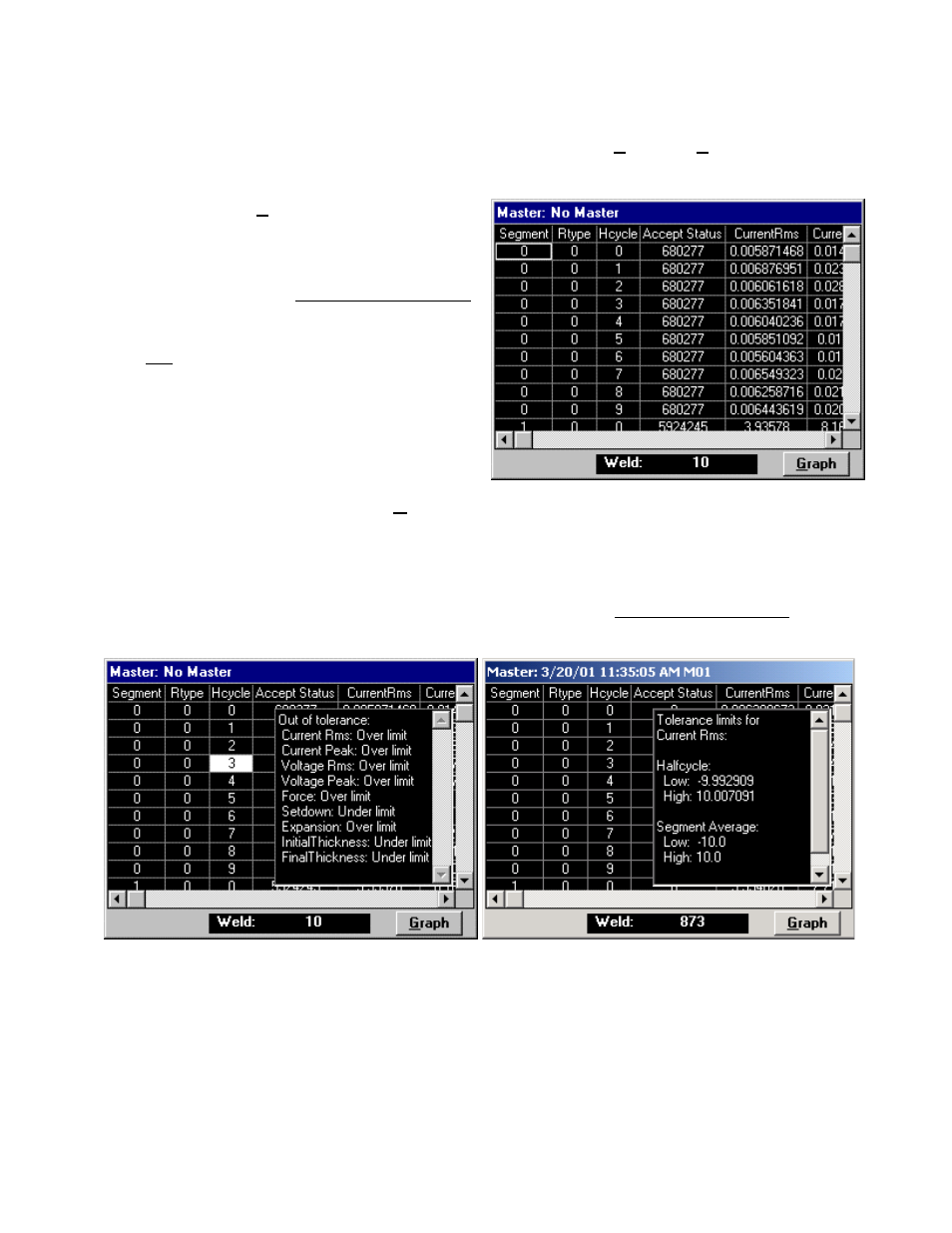

At the bottom of the Halfcycle Summary screen are two buttons: Zoom and Table. In between
them is a box labeled "Weld:" that is followed by the number of the weld being displayed.
• Selecting the Table button will display a
table of the collected weld data for the weld
by the halfcycle as shown in figure 5-8.
Definitions of these parameters can be
found in Chapter 6, WMS Reference Guide.
• The information shown in this table is for
one weld, the weld number displayed on the
bottom of the screen. To see data for past
welds, select the Weld number by touching
it on the screen and using the arrow keys to
scroll through or enter the desired weld
number.
• To return to graph format, select Graph.
Highlight any cell in the Accept Status column and press the SELECT key. A window will appear
giving a summary of failed parameters as shown in figure 5-9. By highlighting a specific parameter
value and pressing the SELECT key, a window will display the high and low tolerance limits for
that parameter based on the master tolerances. Refer to Chapter 6, WMS Reference Guide for
additional details.
• ESCAPE to the Data Menu and then select Weld Summary.
Figure 5-9 Pop-up window of failed parameters in the
Halfcycle Summary
Figure 5-8 Halfcycle Summary (table)
Figure 5-10 Tolerance Limits are displayed by using
the SELECT key on a parameter value once a master
has been made and toleranced
