Rockwell Automation 1441-PEN25-Z Enpac 2500 Data Collector User Manual
Page 55
Rockwell Automation Publication GMSI10-UM002D-EN-E - August 2012
55
The Enpac 2500 Data Collector
Chapter 1
The OS Loader then completes the final stages of the upgrading the
Firmware, by automatically restoring any backed up files, for example,
Calibration Data, License Files, and Module Data and Routes.
17.
Determine if you need to install any modules.
18.

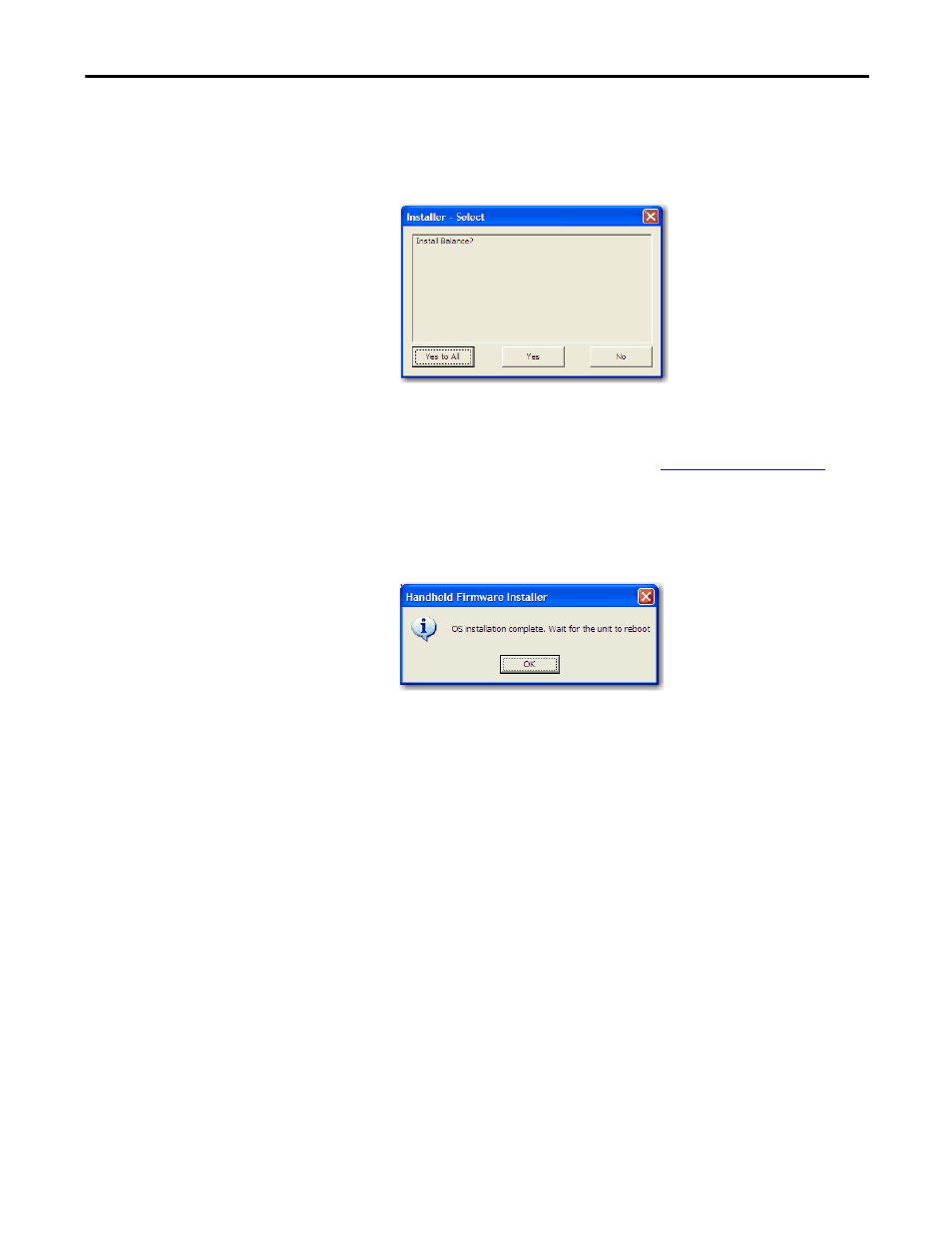

Choose to install All Modules (Yes to All) or individually (Yes/No).
After the Modules have been installed, the OS Loader completes and tells
you to wait for the Reboot.
TIP
We recommend that you select to install modules individually based on the modules
you have activations for listed in the table
Data Collector Modules on page 51
.
If you click Yes to All, the modules that you have not purchased activations for will
appear greyed and are unavailable.
