Time Recorder Application
Chapter 9
Previewing the Measurement
You can preview the measurement before you record it to validate the parameter
settings.
1.
To enter Preview mode, press F4 (Start) on the Recorder - Setup screen.

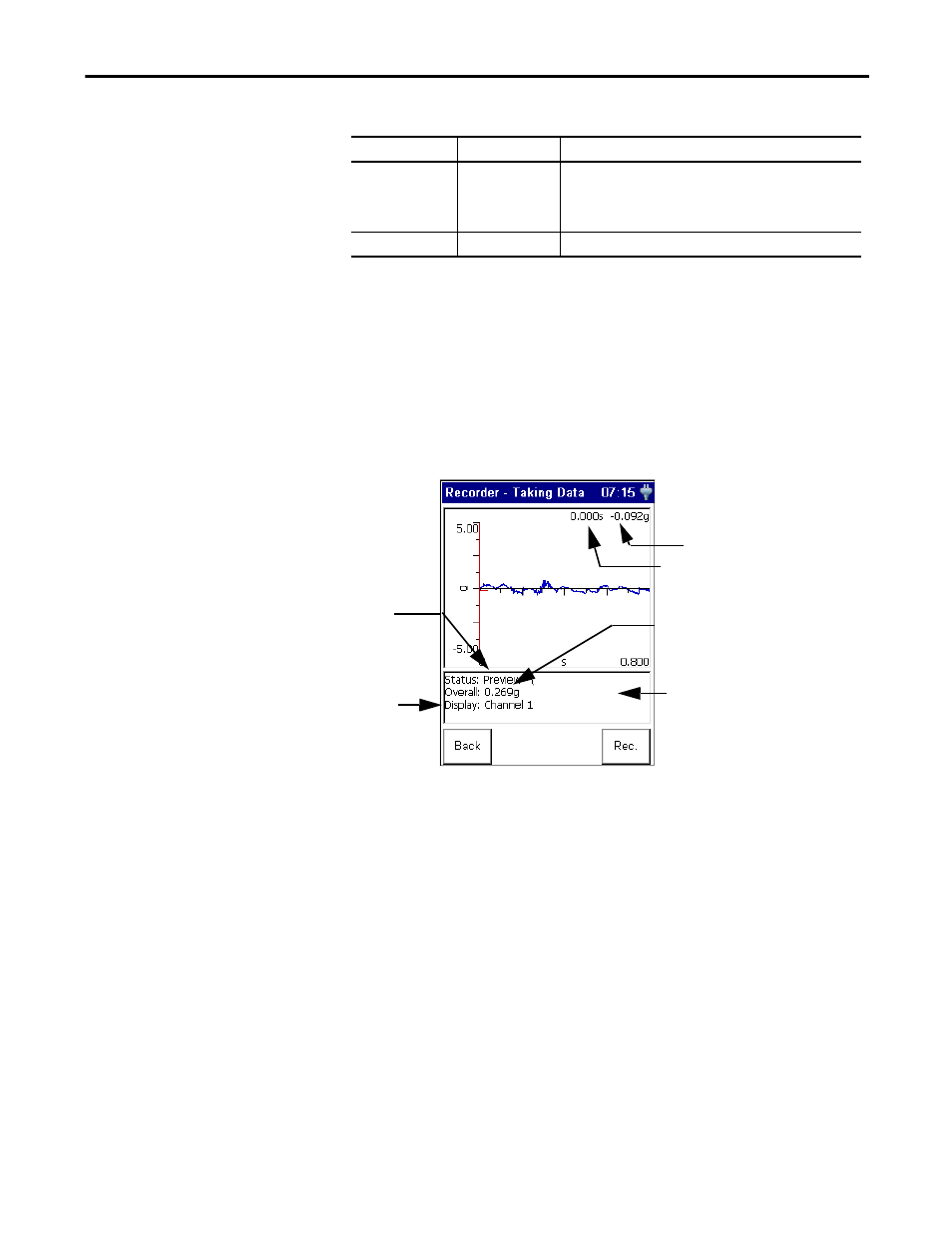

The Recorder - Taking Data screen appears.
In Preview mode, the screen continuously updates to display the channels live
time waveform signal and overall vibration reading. The message area is used to
display error messages, such as a clipping error, or to prompt you to press a ‘1 or 2‘
to view the other channels time waveform data.
If you need to adjust the setup parameters, press F1 (Back) to return to the Setup
screen.
Amber
Solid
An error has occurred during the recording. The status indicator
remains solid even when the error condition disappears.
The recorded .csv file also contains a flag indicating that the
corresponding .wav file may contain flawed data.
Green
Flashing Green
The status indicator toggles on/off for each new data block.
Table 43 - Recorder Status Indicators
Status Indicators
State
Definition
Preview Mode
Channel You are
Currently Viewing
Overall Reading
Message Area
Cursor Time
Cursor Amplitude
