Chapter 6
Multi-channel Measurements
Set Up an Offroute Cross Channel Phase Measurement
The Cross Channel Phase Offroute measurement is configured by creating a user-
defined measurement point. The Enpac 2500 keeps the user-defined parameters
until you collect another measurement point or press F2 (Default) on the
Offroute User screen.
Create and Collect a User-defined Point on page 141
for more information.
1.
Select Data Collection from the Main Menu and press the Enter key.
The Data Collection screen appears.
2.
Select the route. The Enpac 2500 always associates Offroute measurements
with a list.
3.
Press F2 (Offroute) to collect an Offroute measurement. The Offroute
screen appears.
4.
Press F2 (User).

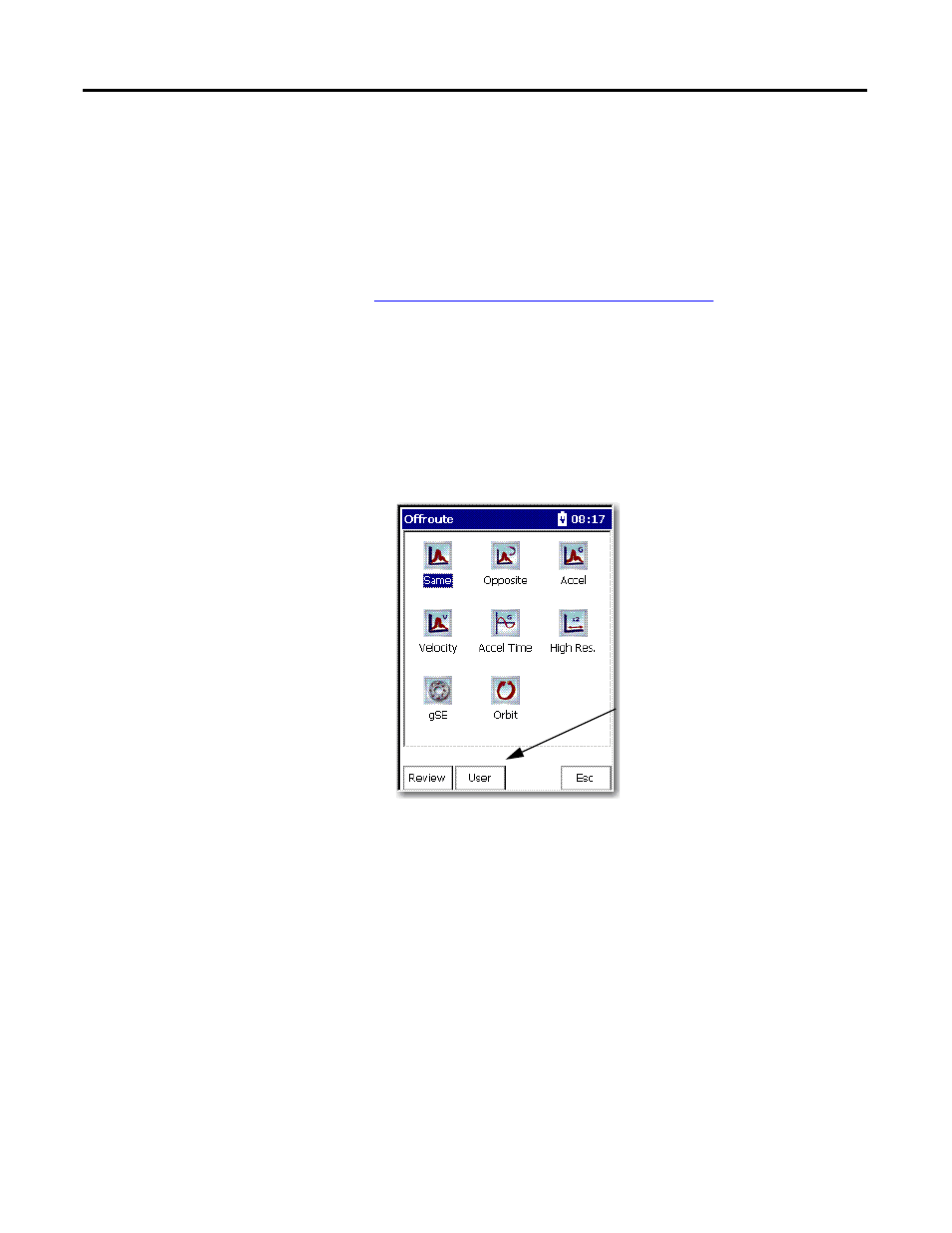

Press F2 (User) to create a user-
defined point.
