Balancing Application Chapter 8
Combining Weights Screen
The Enpac 2500 can combine selected weights into one equivalent weight. The
result will have the same effect on balancing the rotor as the multiple weights,
provided the same plane and radius are used.
To combine the weights, follow these steps.
1. Press F3 (Comb Wt) on the Weights Summary Table screen.
The Combine Weight screen appears.
2. Highlight a weight and press F3 (Select). Enpac 2500 places a check mark
next to the selected weight.
3. Repeat step 2 until you have selected all the weights you want to combine,
then press F2 (Accept).
4. Press F2 (Yes) to combine the weights.
If you do not want to combine the weights, press F3 (No).
5. Enter the radius (in inches) for the combined weight and press F2 (OK).

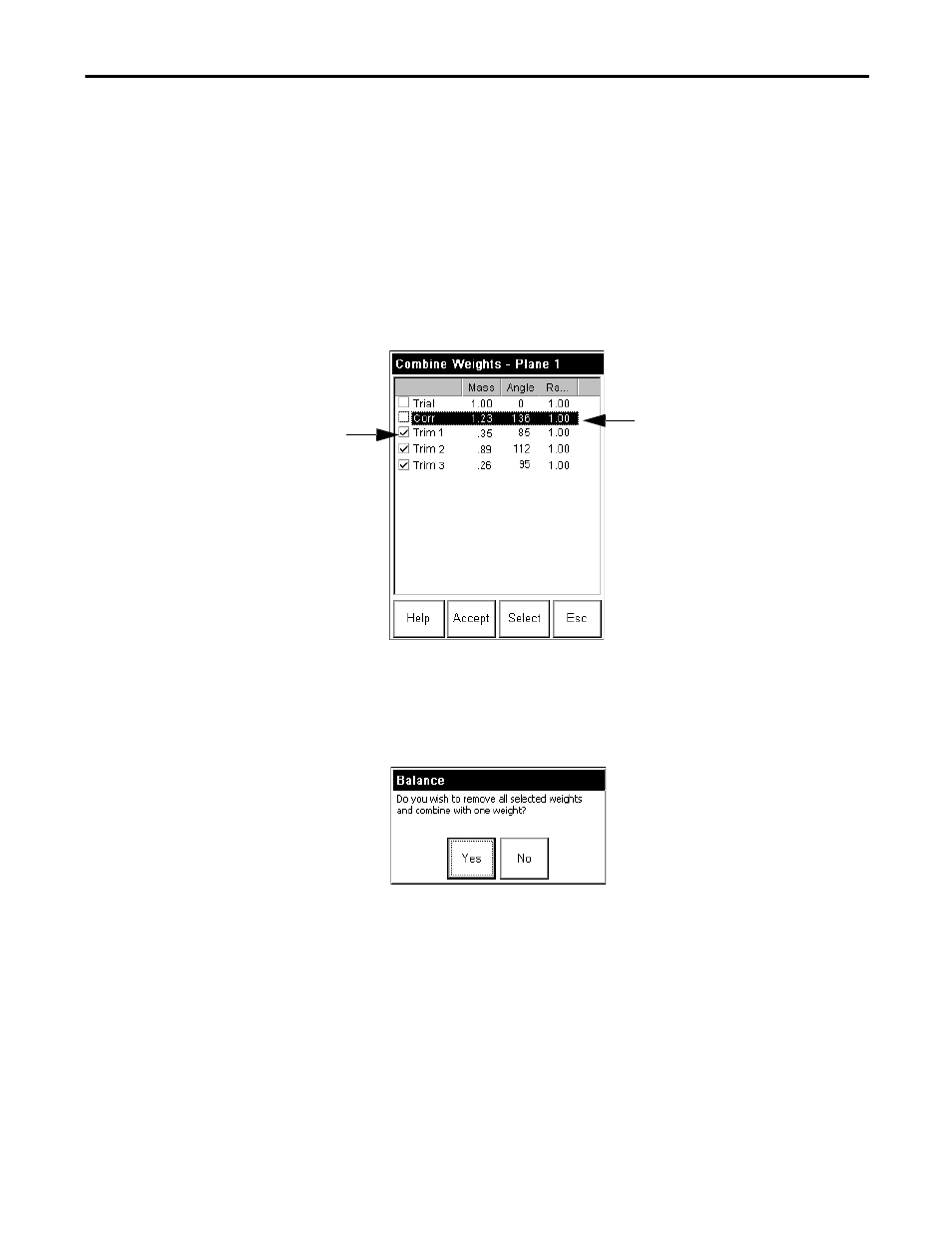

Highlight a weight and press F3
(Select). Enpac places a check
mark next to the selected
weight.
All the weights with check
marks next to them will be
combined when you press F2
(Accept).
To highlight an option, press the UP or
DOWN ARROW key.
