156

Rockwell Automation Publication GMSI10-UM002D-EN-E - August 2012

Chapter 4

Collecting and Reviewing Data

Review Waterfall Spectra Data

When you collect more than one spectrum for a point, the Enpac 2500 data
collector can display the spectrum in a waterfall mode, one after the other.

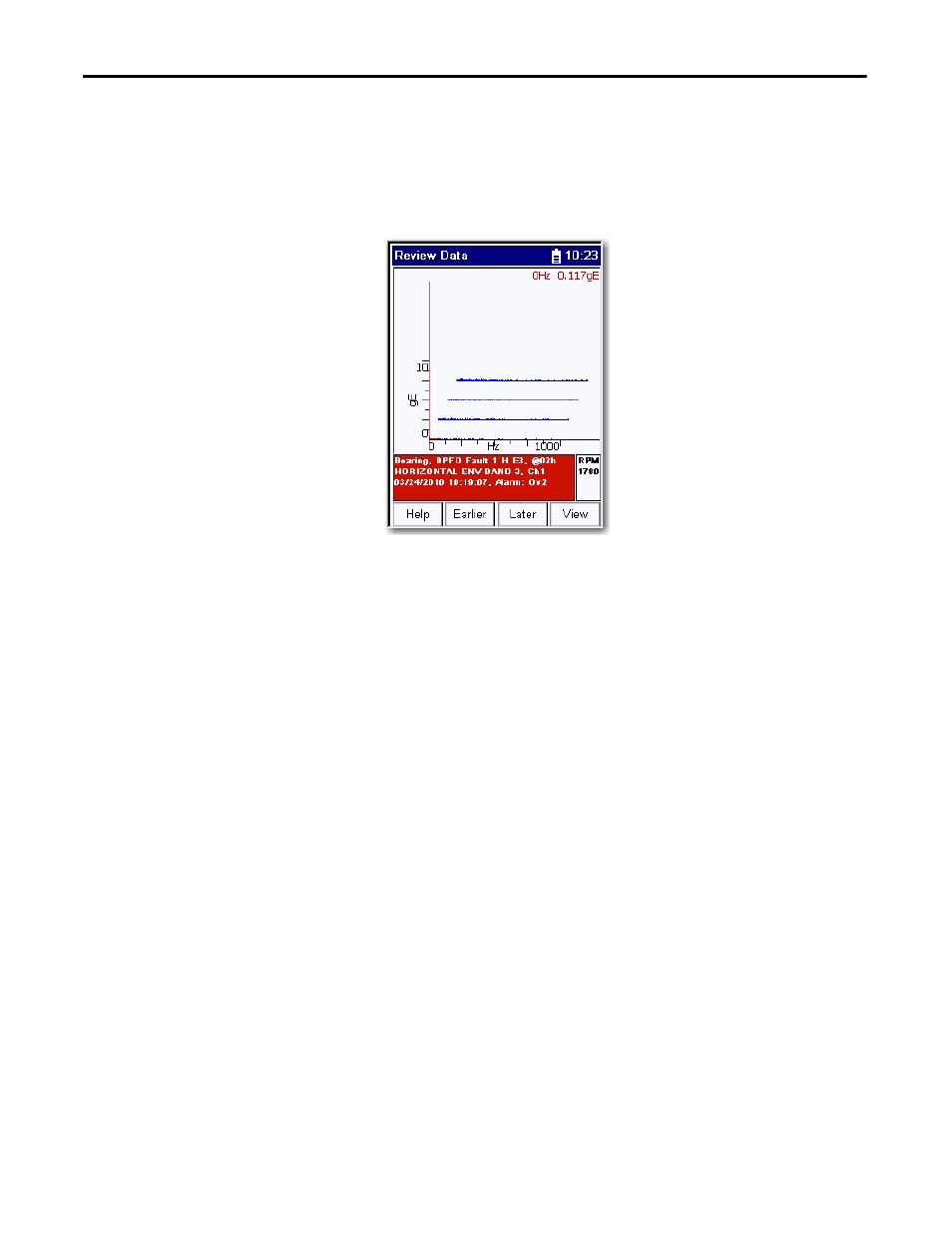

Figure 25 - Waterfall Spectral Data

Press the Left and Right arrow keys to move the frequency cursor within
the spectrum plot.

Use the Up and Down arrow keys to move between the spectrum plots.

Delete a Measurement

You can delete a previously collected measurement from the data collector when
the Delete function appears on the screen.

Follow these steps to delete a measurement.

1.

Review the previously collected route measurement point.

The appropriate Overall or Signature screen appears.

2.

Press F3 (Delete).

A dialog box appears to confirm the deletion.

3.

Press F2 (Yes) to delete the measurement point.

A warning appears that states that all historical data will be removed.

TIP

The Waterfall spectra data will not appear if you set Hist. Data Review to
Always Single in the Instrument Configuration screen.
