Multi-channel Measurements Chapter 6

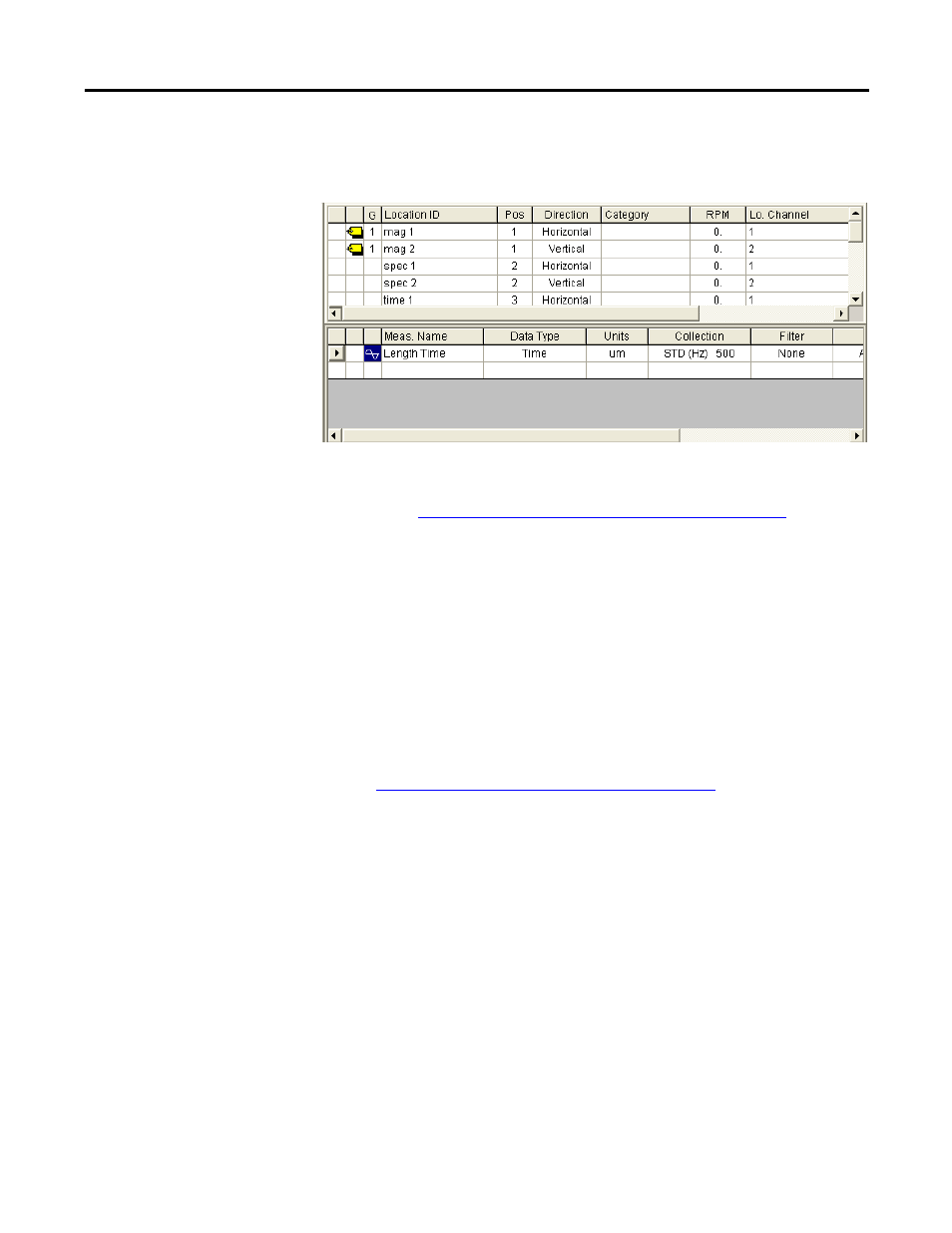

This figure shows a typical setup for a two-channel measurement.
Figure 34 - Two-channel Measurement Definitions
9.
Connect the data collector to the computer and load the list to the unit.
Loading Selected Lists to the Data Collector on page 111
10.
Once you have prepared the unit for data collection, select the route and
collect the dual channel measurement.
Collect an Offroute Two-channel Measurement
The two-Channel Offroute measurement is configured by creating a user-defined
measurement point. The Enpac 2500 data collector keeps the user-defined
parameters until you collect another measurement point or press F2 (Default) on
the Offroute User screen.
Create and Collect a User-defined Point on page 141
for more information.
1.
Select Data Collection from the Main Menu and press the Enter key.
The Route Manager screen appears.
2.
Select a route.
3.
Press F2 (Offroute) to collect an Offroute measurement.
