The Enpac 2500 Data Collector
Chapter 1

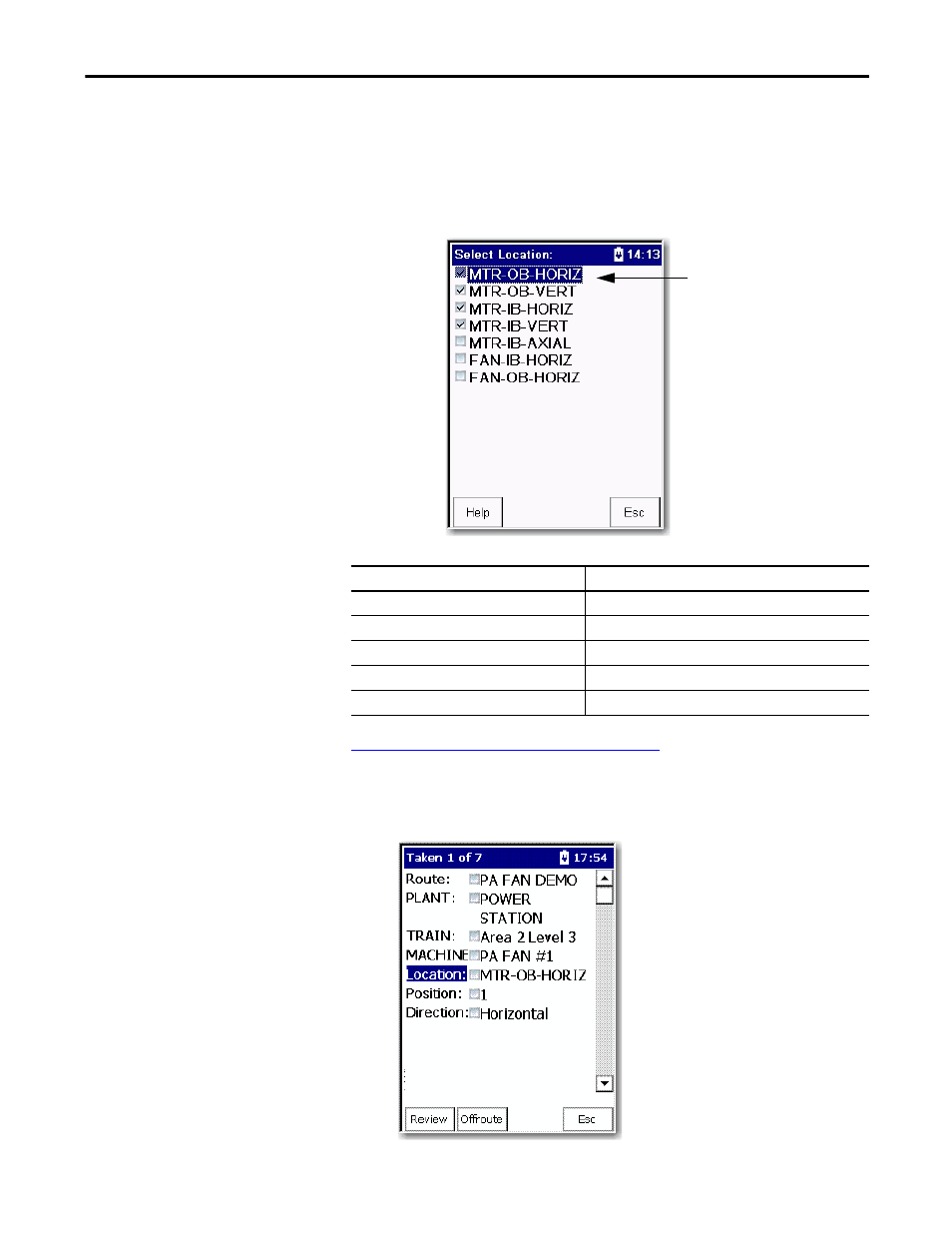

The Select Location screen appears.
See Collecting and Reviewing Data on page 119
for more information.
3.
To select an item, highlight the item and press the LEFT ARROW key.
To leave the screen without selecting an item, press F4 (Esc).
TIP
The Selection screen does not appear if you set the route
Navigation mode to `DataPac’ in the Setup Utility menu. Instead,
the Enpac 2500 data collector automatically moves to the next
point in the route when you press the Right arrow.
Task
Action
Select an item.
Highlight the item and press the Left arrow key.
Leave the screen without selecting an item.
F4 (Esc)
Start collecting data.
Enter
Review previously collected route data.
F1 (Review)
Collect and review Offroute data.
F2 (Offroute)
Use the Up and Down arrow keys
to highlight the point.
