Rockwell Automation Publication GMSI10-UM002D-EN-E - August 2012 115
Loading and Unloading Chapter 3
Unloading Unscheduled (off route) Data from the Enpac 2500 Data
Collector
Unscheduled measurements are measurements that are taken with the Off Route
function in the Enpac. They are called off route measurements in the data
collector. See the Emonitor online help for more information on setting the
Unscheduled Measurement Destination.
You can unload the unscheduled measurements automatically when unloading a
list.

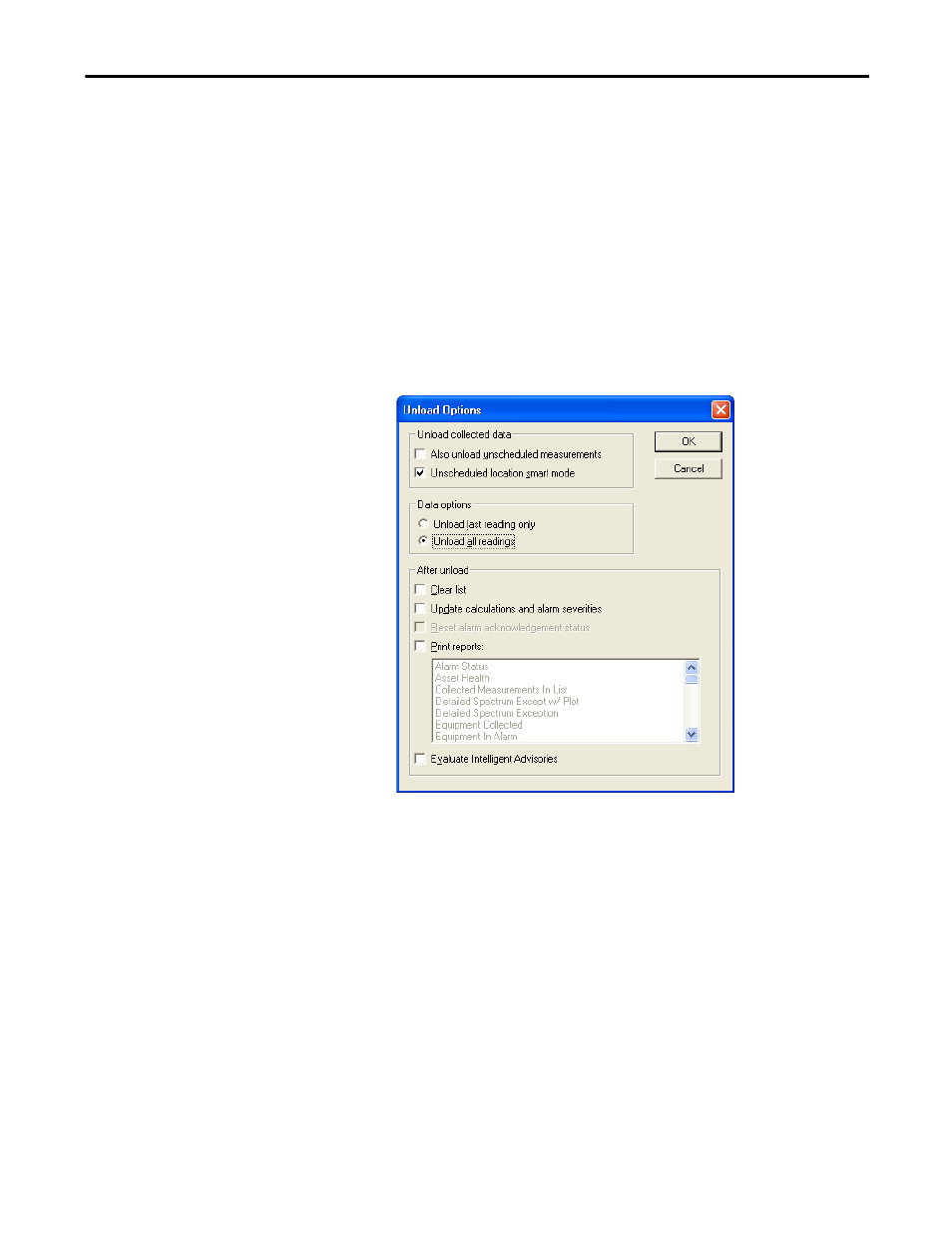

1. Click the Unload Options button in the Load/Unload dialog. The
Unload Options dialog appears.
2. Check the Also unload unscheduled measurements checkbox.
3. Click OK.
Unloading Measurements using Smart Unscheduled Mode
You can collect off route measurements in the Enpac 2500 that match your
existing measurement definitions in Emonitor. This is done by choosing one of
the pre-defined measurement icons on the Off Route Measurement screen in the
Enpac. When you unload the data, Emonitor stores the data under the correct
measurement definition.
TIP To have Emonitor put all unscheduled measurements in one location, open
the Load/Unload dialog and click the Unload Options button. Uncheck the
Unscheduled location smart mode checkbox.
