Multi-channel Measurements Chapter 6
7.

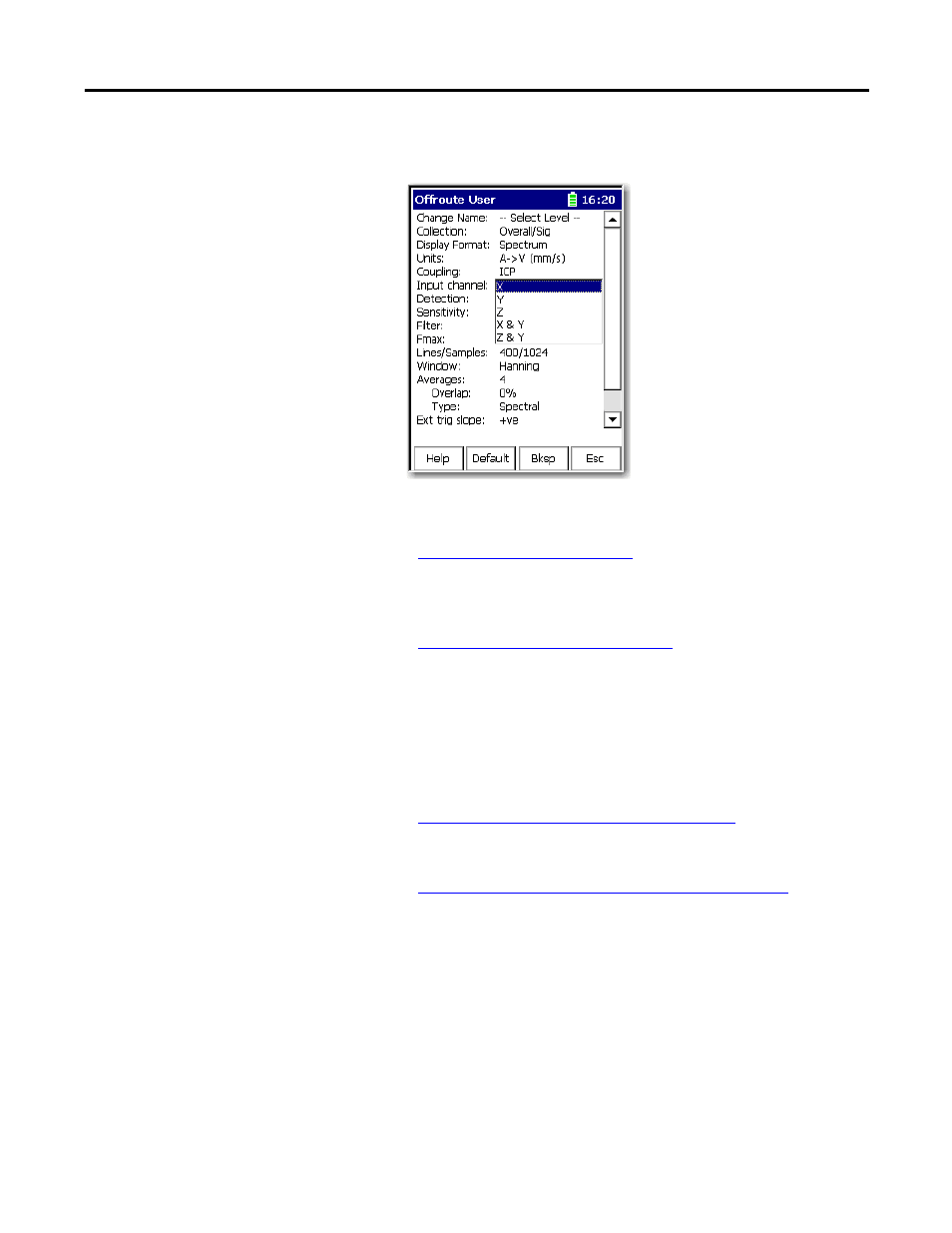

Select Input Channel and press the Right arrow to display the input
channel choices.
8.
Select the channel and press the Left arrow key.
External Connections on page 23
for complete information on the
connectors and related channels.
9.
Change the other parameters as needed.
See
Offroute Orbit Parameters on page 167
for assistance.
You can also set the Acquisition parameter in the Instrument
Configuration screen to Single Shot or Continuous.
–
In Single Shot mode, the unit halts when the data collector has settled
and the data is stable.
–
In Continuous mode, the unit constantly analyzes and displays the
moving signals until you store the data by pressing the Enter key.
Instrument Configuration Parameters on page 44
10.
You are now ready to collect the dual channel measurement.
Collect a Cross Channel Phase Measurement on page 178
.
