Review orbit data screen – Rockwell Automation 1441-PEN25-Z Enpac 2500 Data Collector User Manual
Page 172
172
Rockwell Automation Publication GMSI10-UM002D-EN-E - August 2012
Chapter 6
Multi-channel Measurements

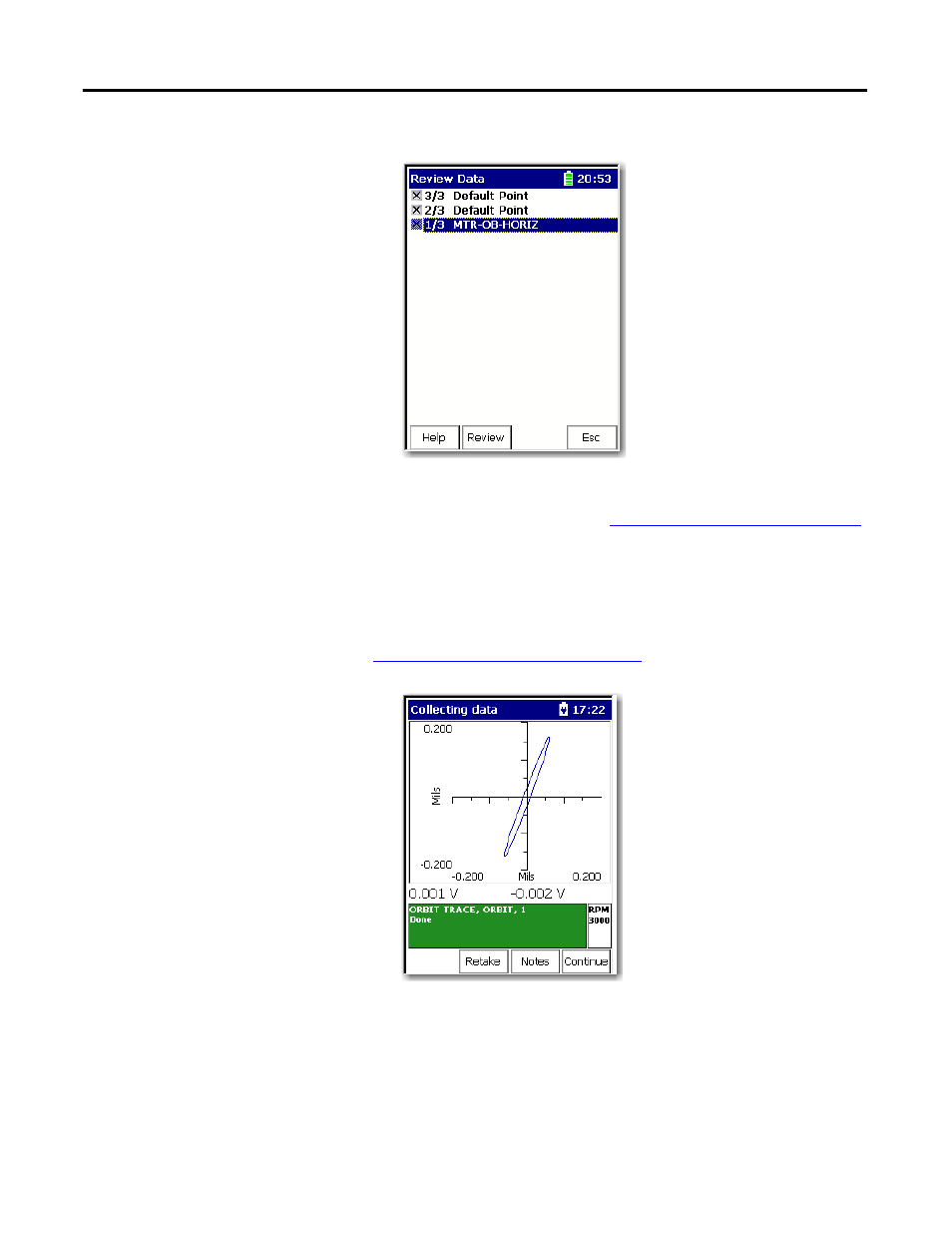

The Review Data screen appears.
3.
Select the point that you want to review and press F2 (Review).
For information on orbit data, see
Review Orbit Data Screen on page 172
Review Orbit Data Screen
The Review Orbit Data screen lets you view the data in an orbit plot.
Understanding an Orbit Plot on page 160
for more information about orbit
plots.
•
To expand or compress the orbit, press the Up and Down arrows.
•
To view the data in a time waveform, select Time X & Time Y from the
View menu.
•
Use the Left and Right arrows to move the frequency cursor.
•
Use the Up and Down arrows to move the amplitude cursor.
