Balancing Application Chapter 8

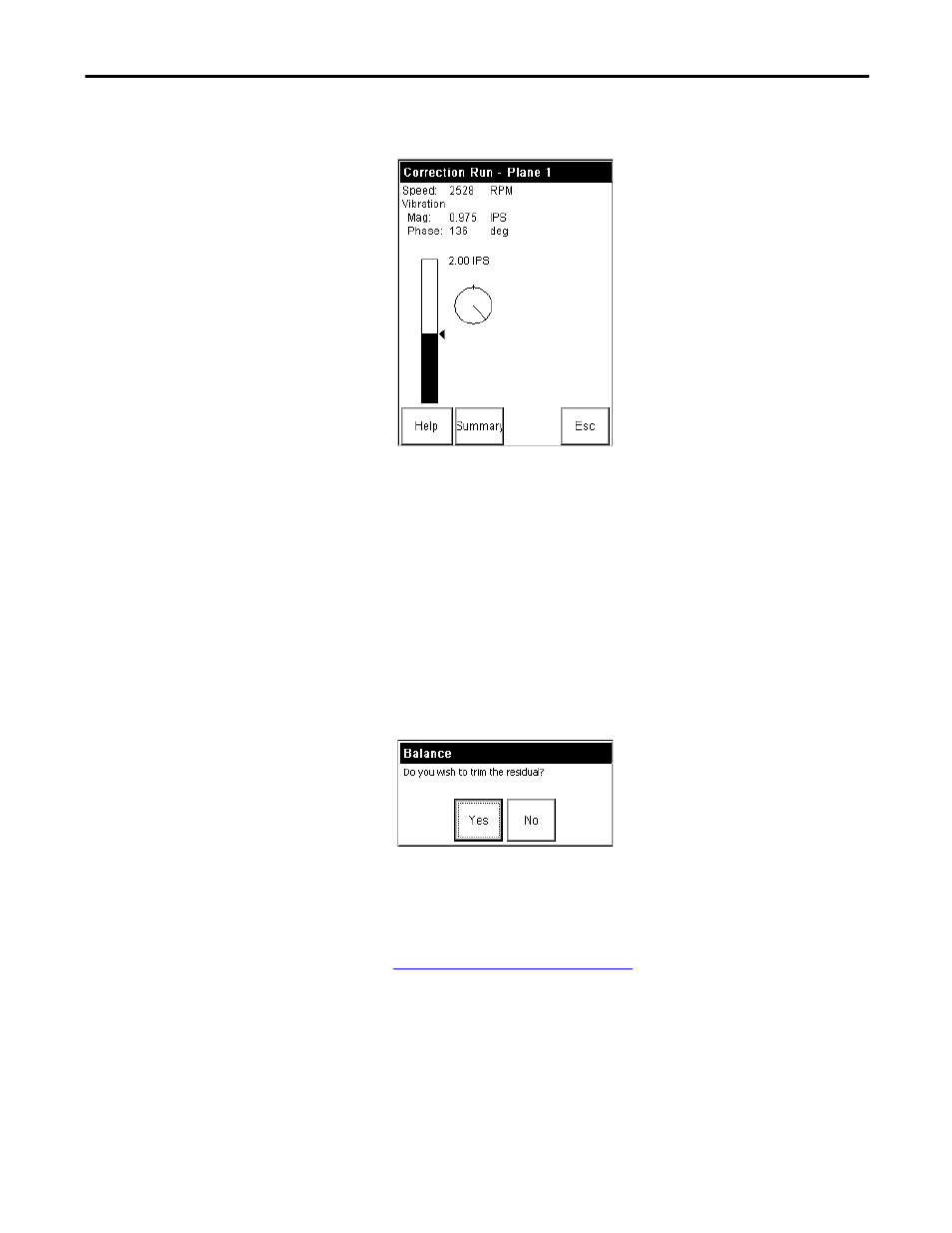

4. The Enpac 2500 automatically measures the speed, vibration, and phase.
The values are constantly updated on the screen.
5. When the speed, vibration, and phase values are stable, press READ/OK.
This completes the plane 1 measurement.
6. The Enpac 2500 asks you if the transducer is attached to plane 2. If the
transducer is attached, press the F4 (OK) to measure plane 2 speed,
vibration, and phase.
The Enpac 2500 automatically measures the speed, vibration, and phase in
the second plane and constantly updates the values on the screen.
7. When the values stabilize, press READ/OK to complete the
measurement.
The residual measurement is complete. The following message appears.
8. Do one of the following.
•
Press F2 (No) if you do not want to trim the residual. The Vibration
Summary Table appears.
Refer to Reviewing Data on page 233 .
• Press F3 (Yes) to trim the residual. The Enpac 2500 calculates the trim
correction weights and displays the following screen. Note that you can
split the trim weight and modify the radius.
