Rockwell Automation 1441-PEN25-Z Enpac 2500 Data Collector User Manual
Page 31
Rockwell Automation Publication GMSI10-UM002D-EN-E - August 2012
31
The Enpac 2500 Data Collector
Chapter 1

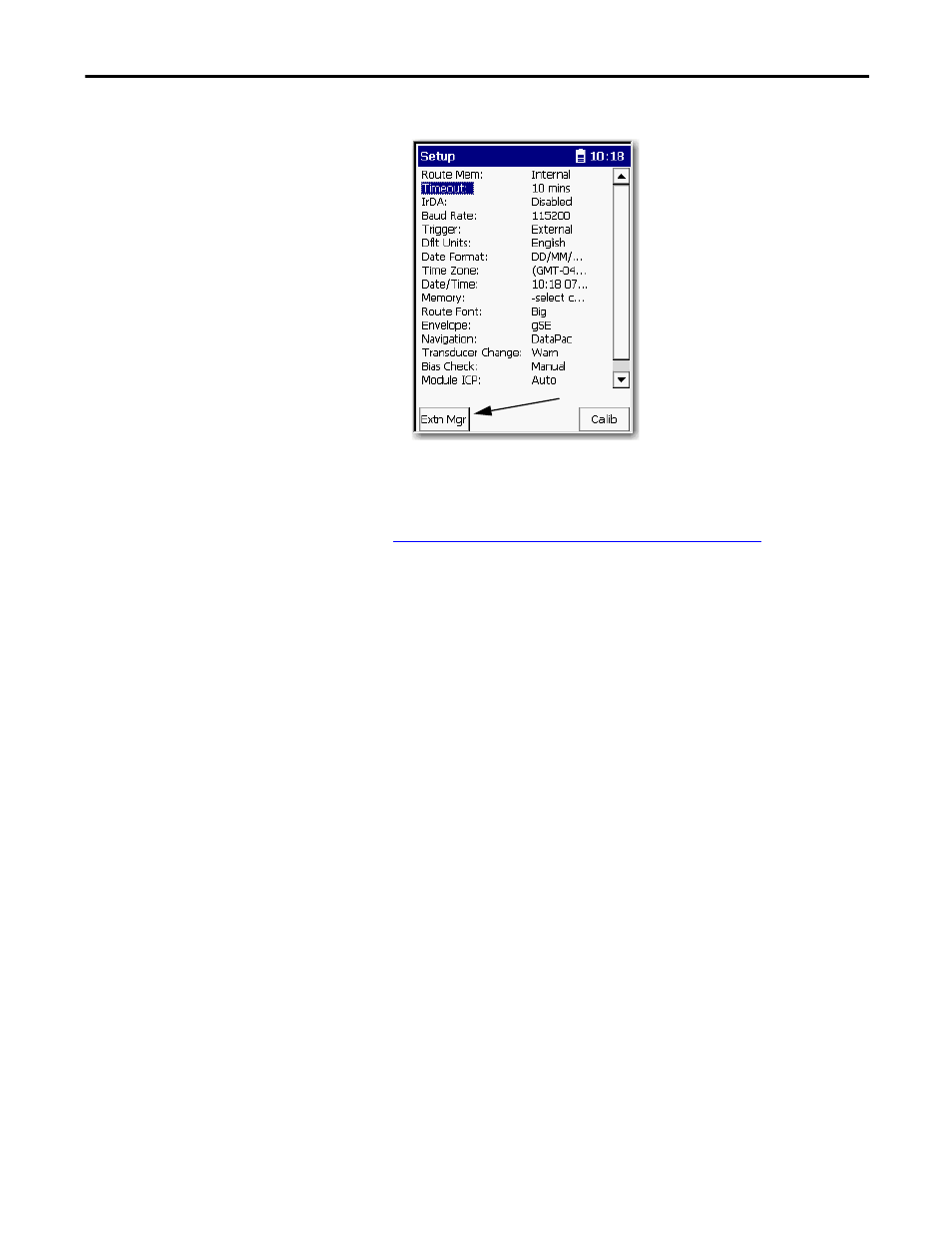

The Extension Manager and Calibration buttons appear.
The Extension Manager lists the option extension modules installed on
the data collector.
Refer to Install Optional Extension Modules on page 189
When you are finished, press F4 (Apply) to return to the Main Menu.
