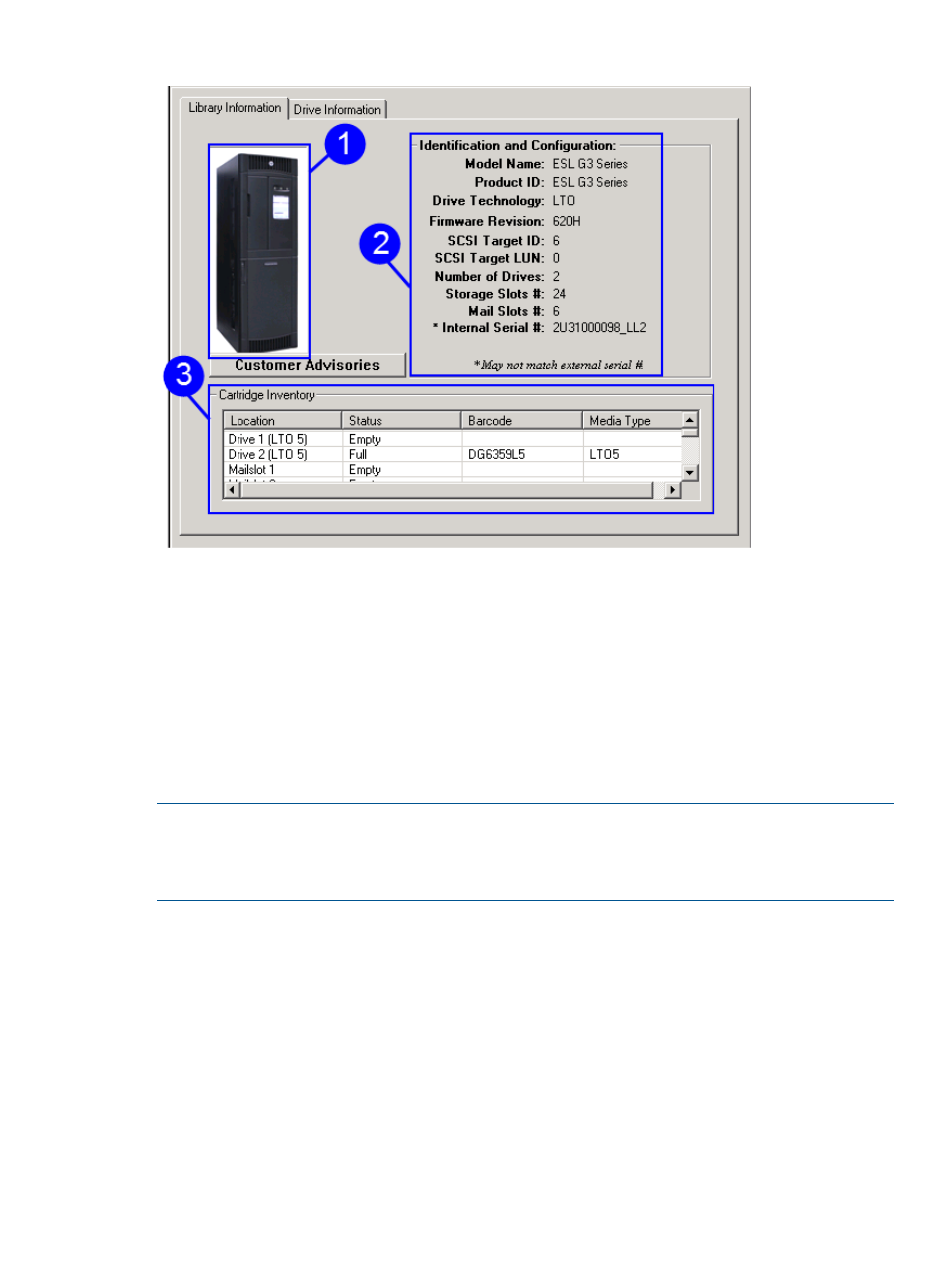

Figure 7 Device information screen showing a library
1. A visual representation of the selected product (the images are in grayscale).
2. As with a standalone drive, this area provides the relevant information on the selected library product.
3. This provides a cartridge (media) inventory for all the drives and slots. The current status (full or empty) of all the
storage elements, bar code number (if bar code reading is available), and media type are displayed here.
To see information for the drives within the library, select the Drive Information tab. This tab displays
a screen very similar to the one for standalone products, with the addition of the Selected Drive
menu.
Because a library can contain multiple drives, you can select and view information for each drive
using the Selected Drive menu. All of the drives in the library are available in the menu.
NOTE: Selecting individual drives within a library from the By Product/By Connection device list
displays the drive as though it were a standalone product. The recommended method of diagnosing
embedded drives is to first select the library they belong to, and then select the specific drive within
each tool window.
Using the firmware management screen
The firmware management functionality of L&TT allows easy upgrades to the storage product
firmware. To access the firmware management screen, click the device you want to update in the
device list, then click Firmware on the main toolbar.
