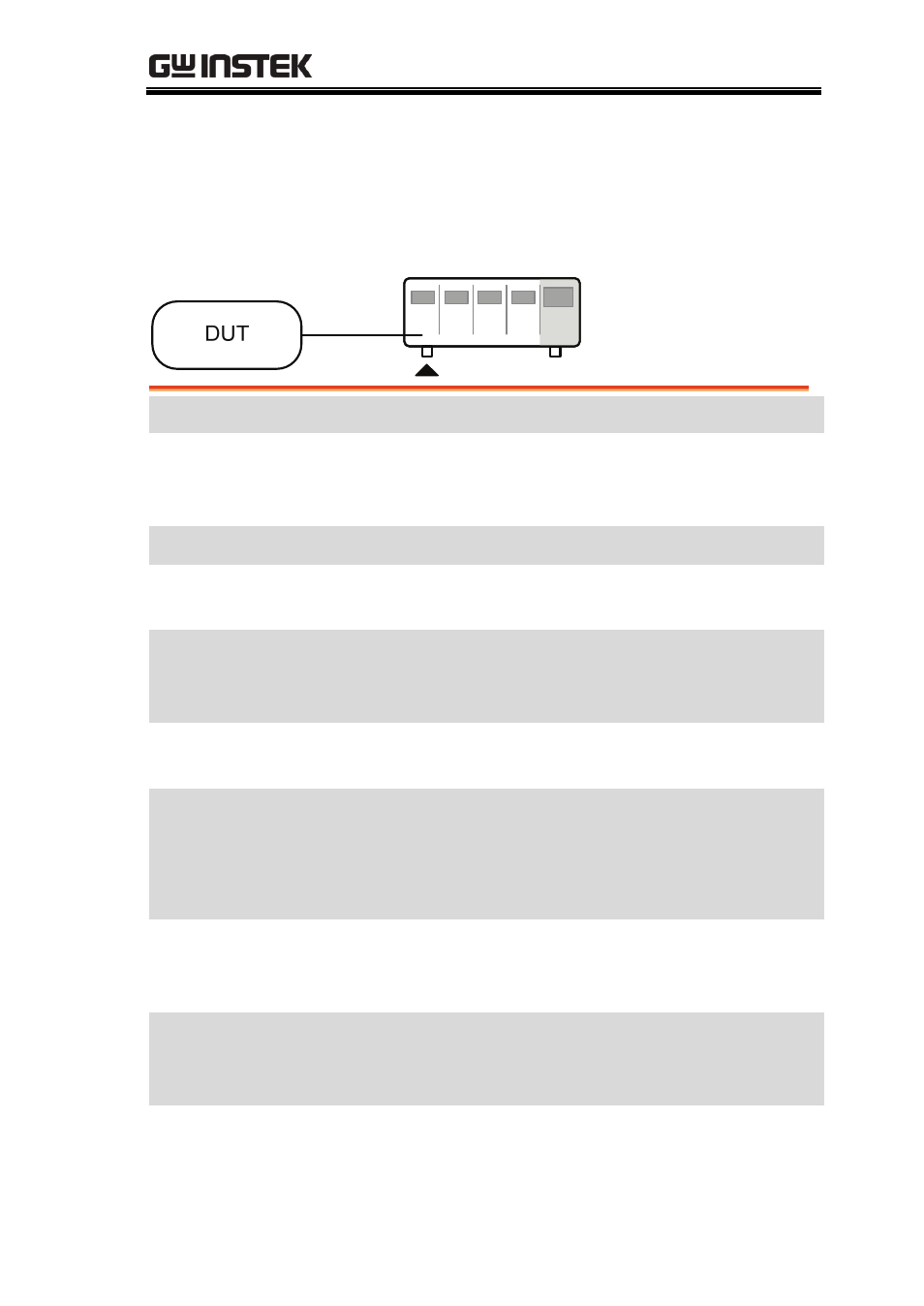

Single Channel Load
Single channel loads are used to manually test a DUT quickly or to
configure channel settings for Program Sequences using the
mainframe panel.
Step Description Details
1. Setup Choose the appropriate load
module and make sure it is
installed. Page 35
2. Connection Connect the terminals to the DUT. Page 43
3. Channel
selection
Select the load channel on the
mainframe. Page 119
4. Measurement
mode
selection
Select measurement mode (CC,
CV, CR). CC Page 122
CV Page 134
CR Page 128
5. Range
selection
Set the range to high or low (CC,
CR mode). CC Page 123
CR Page 128
6. Mode
selection
Choose Static or Dynamic mode
(CC & CR mode only). CC Pages 123,
126
CR Pages 129,
132
7. Dynamic
levels
(CC,CR)
Set the dynamic levels, slew rate
and timers. Applicable to CC &
CR mode only. CC Page 124
CR Page 130
8. Static Values
(CC, CV,CR)
Set the A(B) Value, slew rate (CC,
CR) and current limit (CV) CC Page 126
CR Page 132
CV Page 135
