TUTORIALS
103
Sequences

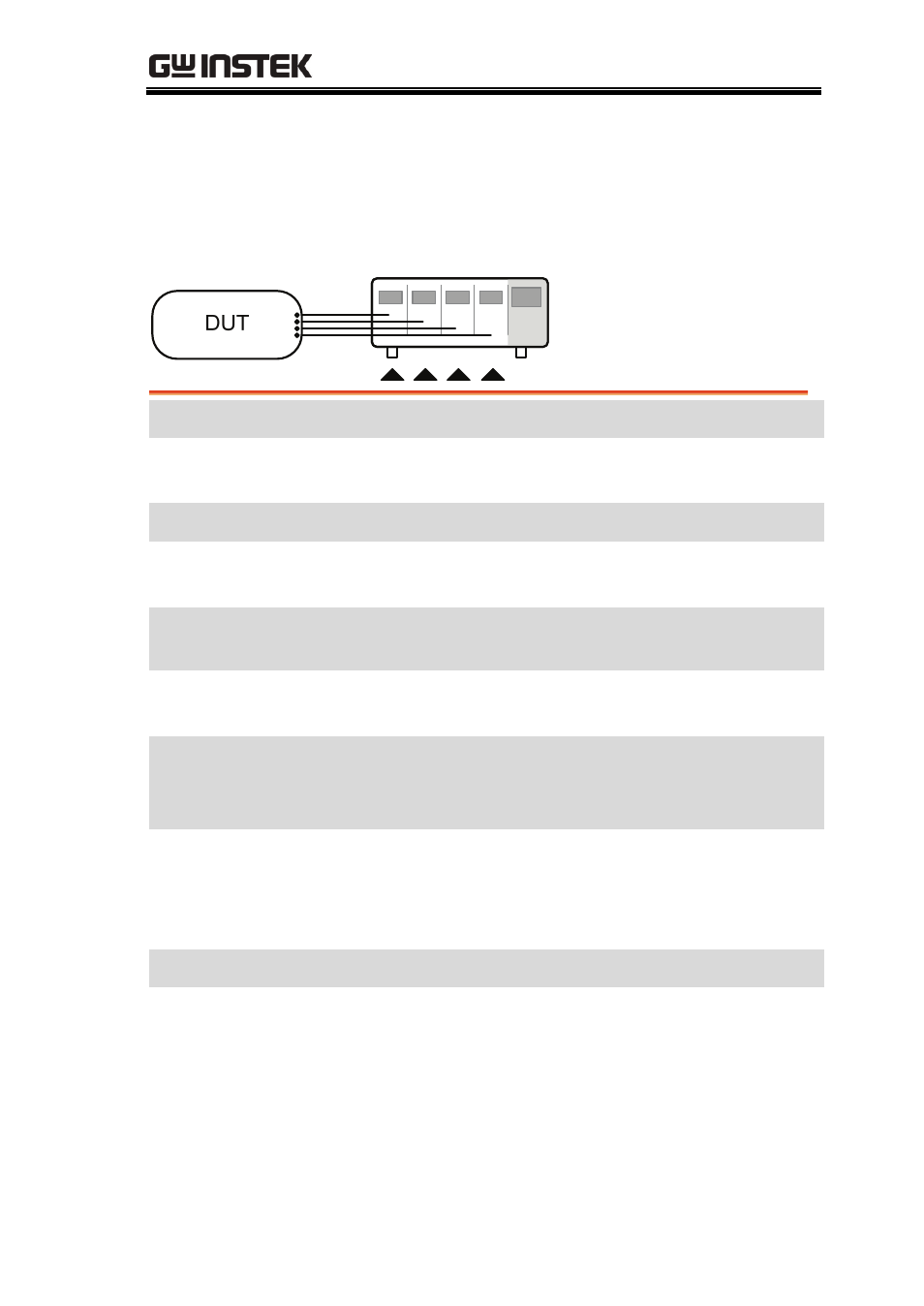

Sequences are used to accurately simulate loads. As each Sequence
is independent, Sequences are ideally suited to test multiple output
power sources.
Step Description Details
1. Setup Choose the appropriate load
module(s). Page 35
2. Connection Connect the terminals to the DUT. Page 43
3. Channel
selection
Select a load channel with the
mainframe. Page 119
4. Channel
setup
Create a sequence. Page 151
5. Sequence
loop
Create a sequence loop if
necessary. Page 153
6. Multiple
channels
If multiple channels need to be
configured, follow steps 1-5 for
any remaining channels.
7. Channel
Duration
menu
Edit the sequence channel
duration information. Ensure that
the channels containing Sequences
are not set to OFF. Page 155
8. Run Run the Sequence(s) Page 157
