TUTORIALS
101
Programming

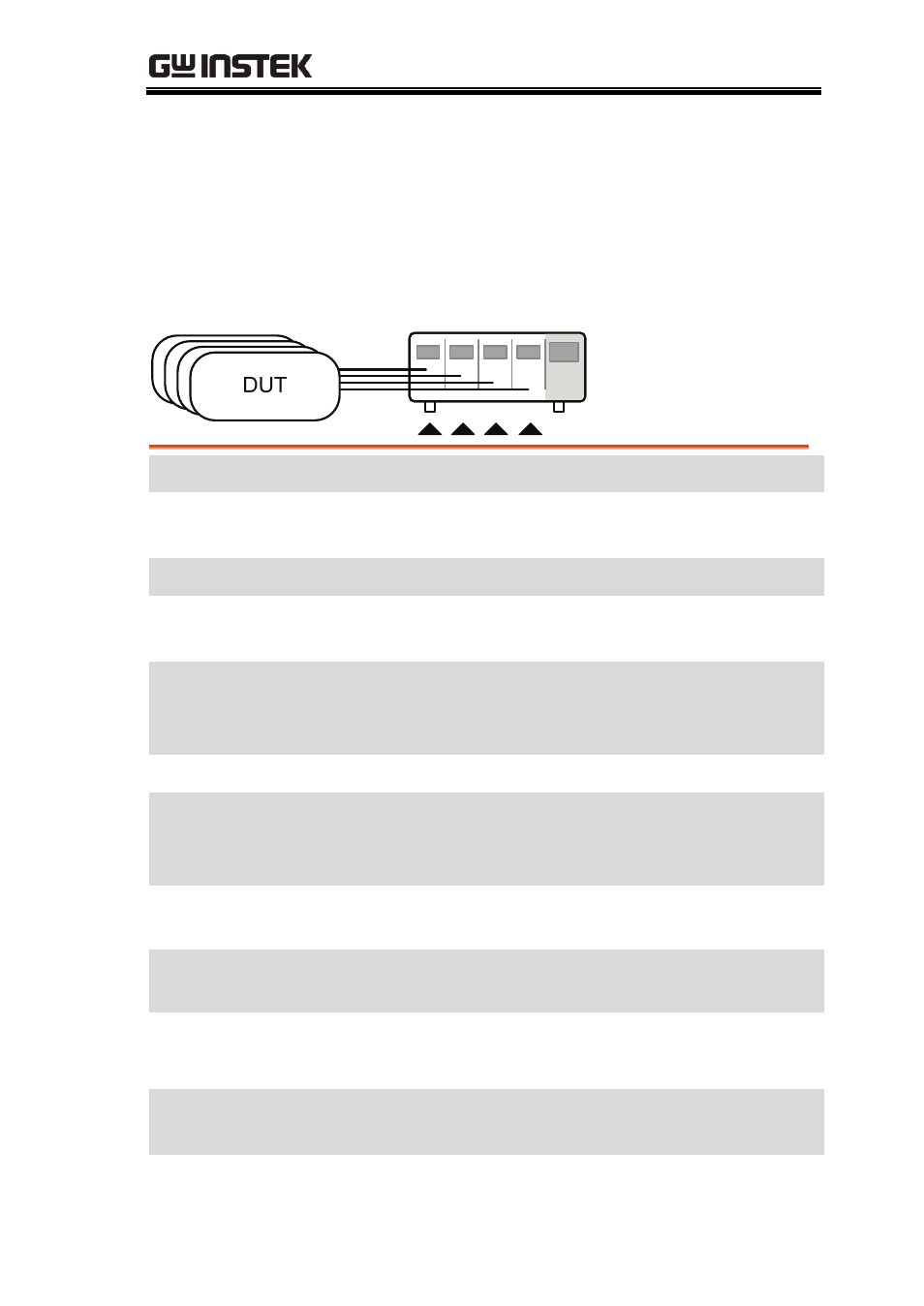

When creating a Program Sequence or Chain, all channels are used
at the same time unless programmed otherwise. Program
Sequences use the channel settings stored from Memory Data.
Program sequences are primarily used to perform a battery of
pass/fail tests on DUTs.
Step Description Details
1. Setup Choose the appropriate load
module(s). Page 35
2. Connection Connect the terminals to the DUT. Page 43
3. Channel
selection
Select the load channel(s) on the
mainframe. Page 119
4. Channel
setup
See the “Single channel load”
tutorial to configure a single
channel. Do not activate the load. Page 99
5. Save channel Save the configured channel. Page 201
6. Multiple
channels
If multiple channels need to be
configured, follow steps 1-5 for
any remaining channels.
7. Program
menu
Enter the Program menu. Page 138
8. Configure the
sequence
Configure the first program.
9. Save
sequences
Save the Program in the FUNC

Program menu.
10. Program
Chains
If required, Program chains can be
created. Page 143
11. Save Program Save the chain in the Chain menu.
