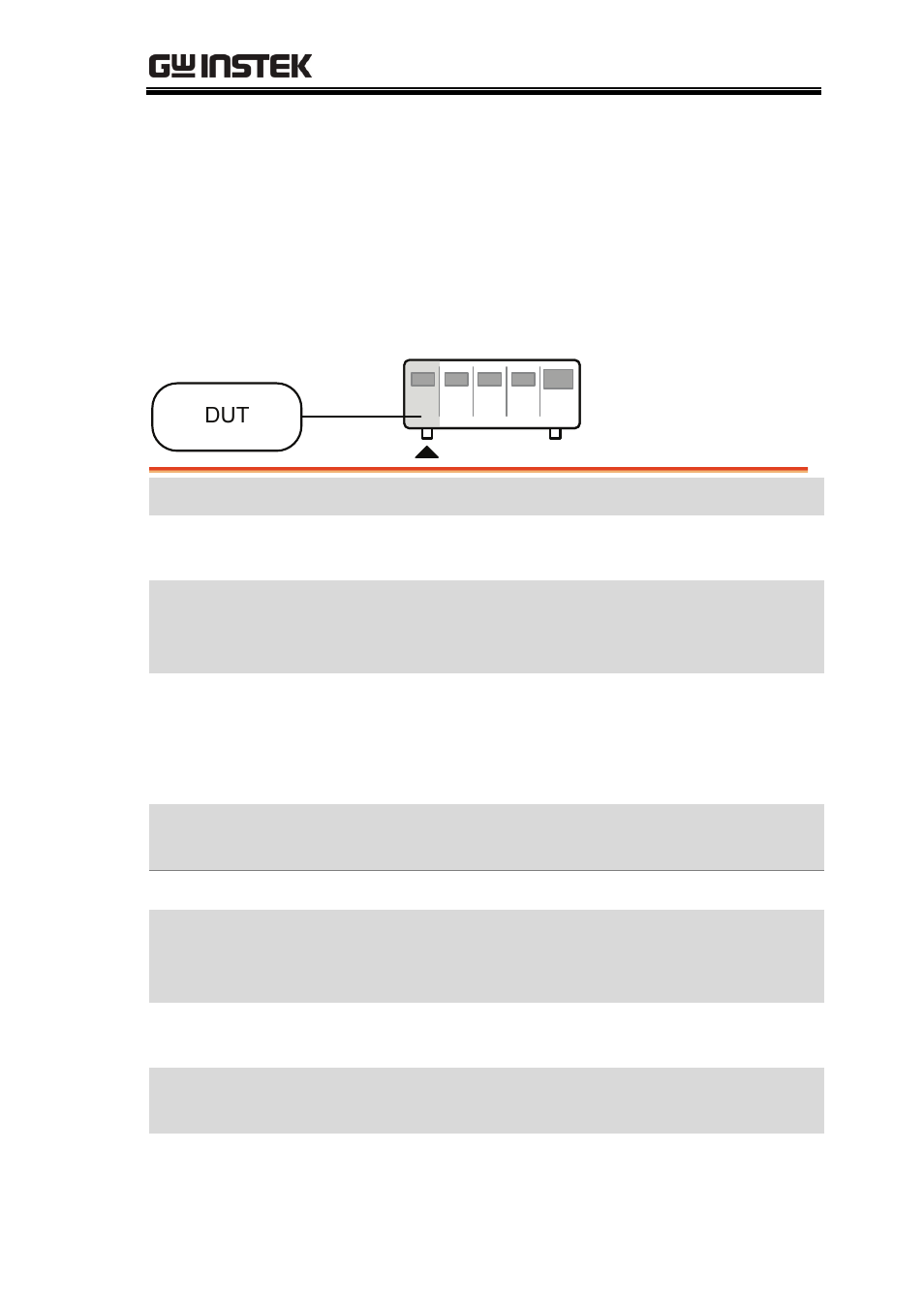

Local loads
Local mode operation is useful to quickly test loads using the load
module control panel rather than the mainframe control panel.
Local load modules can be configured to operate independently to
the mainframe. This can be useful when settings need to remain
unchanged on the mainframe. Note however that the local modules
cannot change the modes (CC, CV, CR), only the values.
Step Description Details
1. Setup Ensure the channel load is set up
as desired. Pages 35, 43
2. Channel
selection
Ensure the correct channel or
Value (A/B) is selected by using
the R/L or A/B key. Page 113
3. Measurement
Mode
selection
If in CC or CR mode, Static or
Dynamic mode can be selected. CC Pages 114,
126
CR Pages 129,
132
4. Run the Load Press the LOAD key to start/end
loading the device under test. Page 115
Optional
5. Short
configuration
Configure the SHORT key to
hold/toggle short circuit
configuration. Page 116
6. Display To change the display output, use
the DISPLAY key. Page 117
7. Shorting the
load
To short the load, use the SHORT
key when the load is on. Page 116
8. Independent
load
The local load modules can be set
to independent load. Page 171
