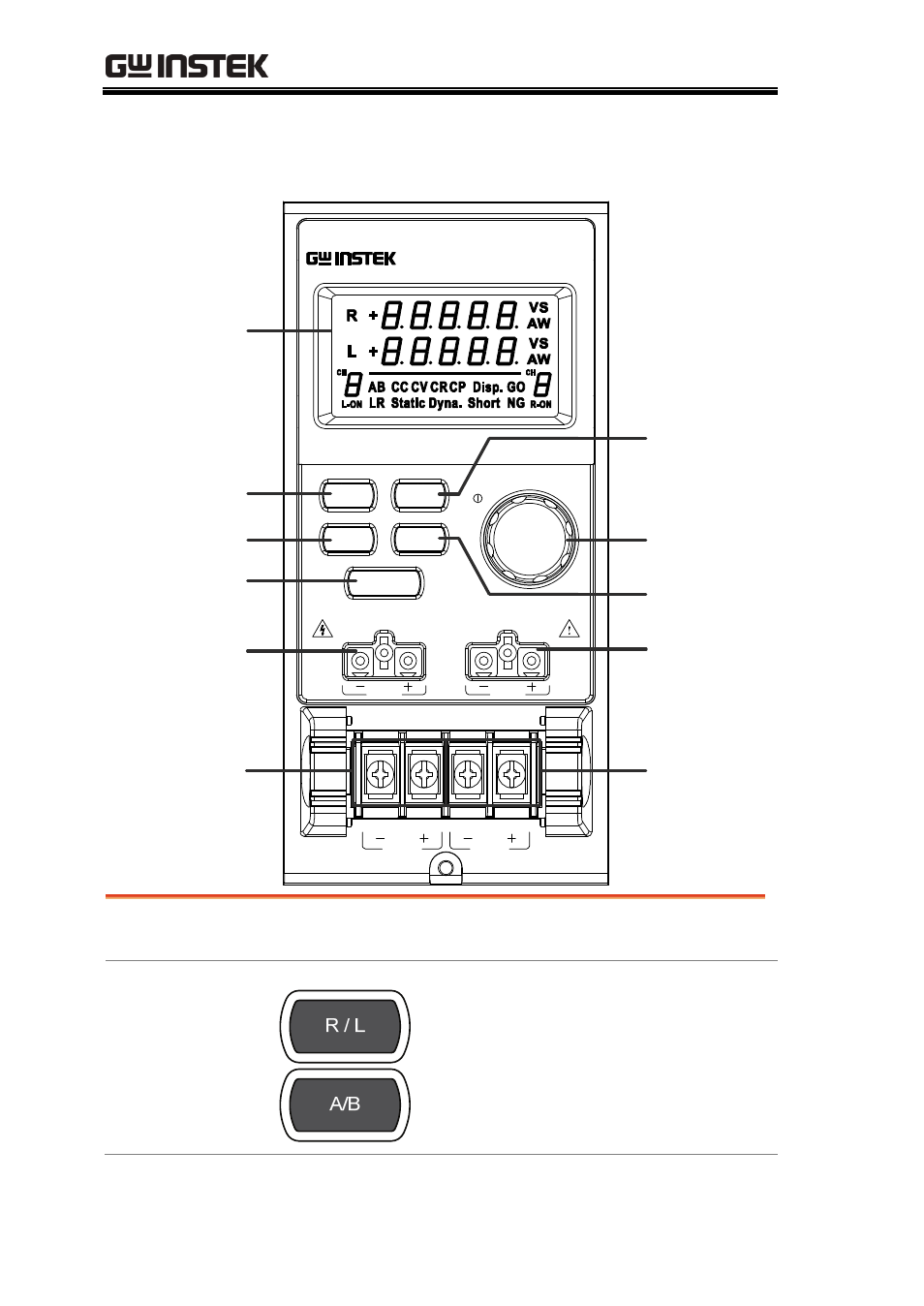

Front Panel Overview – Load Module
PEL-2020
DC Electronic Load
L
R 20A / 80V , 100W
20A / 80V , 100W
R / L
DYNA.
STATIC/
SHORT DISPLAY
LOAD
L
V sense V sense
R
80V DC
MAX
80V DC
MAX
L
80V DC
MAX MAX
80V DC
R
LED
display
R/L A/B Key
Display Key
Load Key
Selector
Knob
Static/
Dynamic
Key
Short Key
V Sense L V Sense R
Terminals
(Left)
Terminals
(Right)
LED display 2x5 digit custom LED display.
Right/Left Key
or
A/B Key
The L/R key is used to switch
between the right and left load
channel on a dual channel load
module. The A/B key is used to
switch between A&B Values for
single channel load modules.
