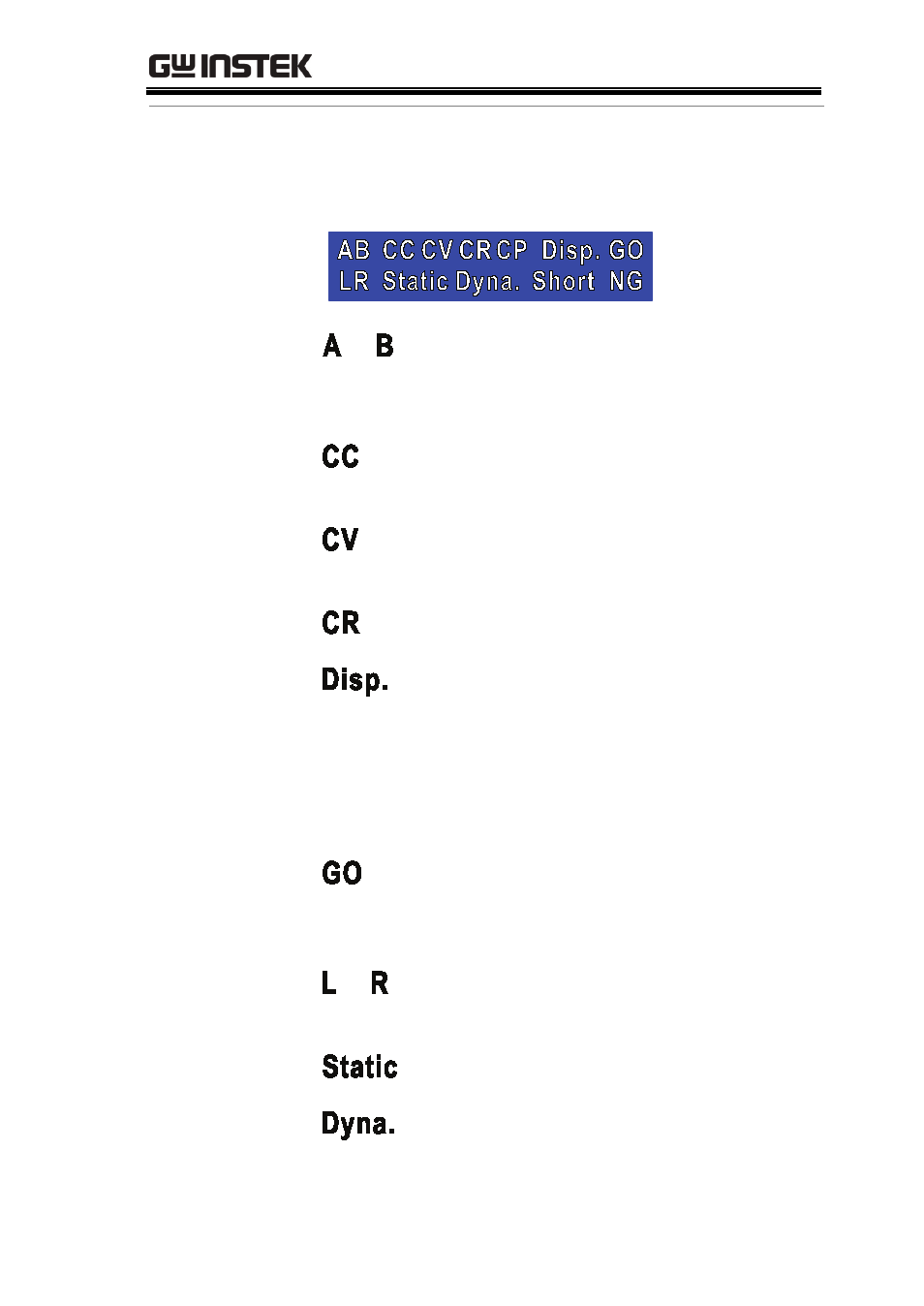

4. Mode Indicator The Mode Indicator LEDs will indicate what the
current mode or settings are on the active
channel(s).
or Value A or B for a single channel load
module. Applies to CR, CV, and CC
static mode only.
Constant Current Mode (CC) mode
activated.
Constant Voltage Mode (CV) mode
activated.
Constant Resistance Mode (CR).
Display is shown on dual channel load
modules when both left (L) and right (R)
channel information is displayed.
Press the Display button repeatedly to
show information for both channels.
Lights up when Go/NoGo is activated
and the load passes (GO) the Go/NoGo
limits.
or L or R will light up when the left or right
channel is selected.
Lights up when in Static mode.
Lights up when in Dynamic mode.
