OPERATION

165

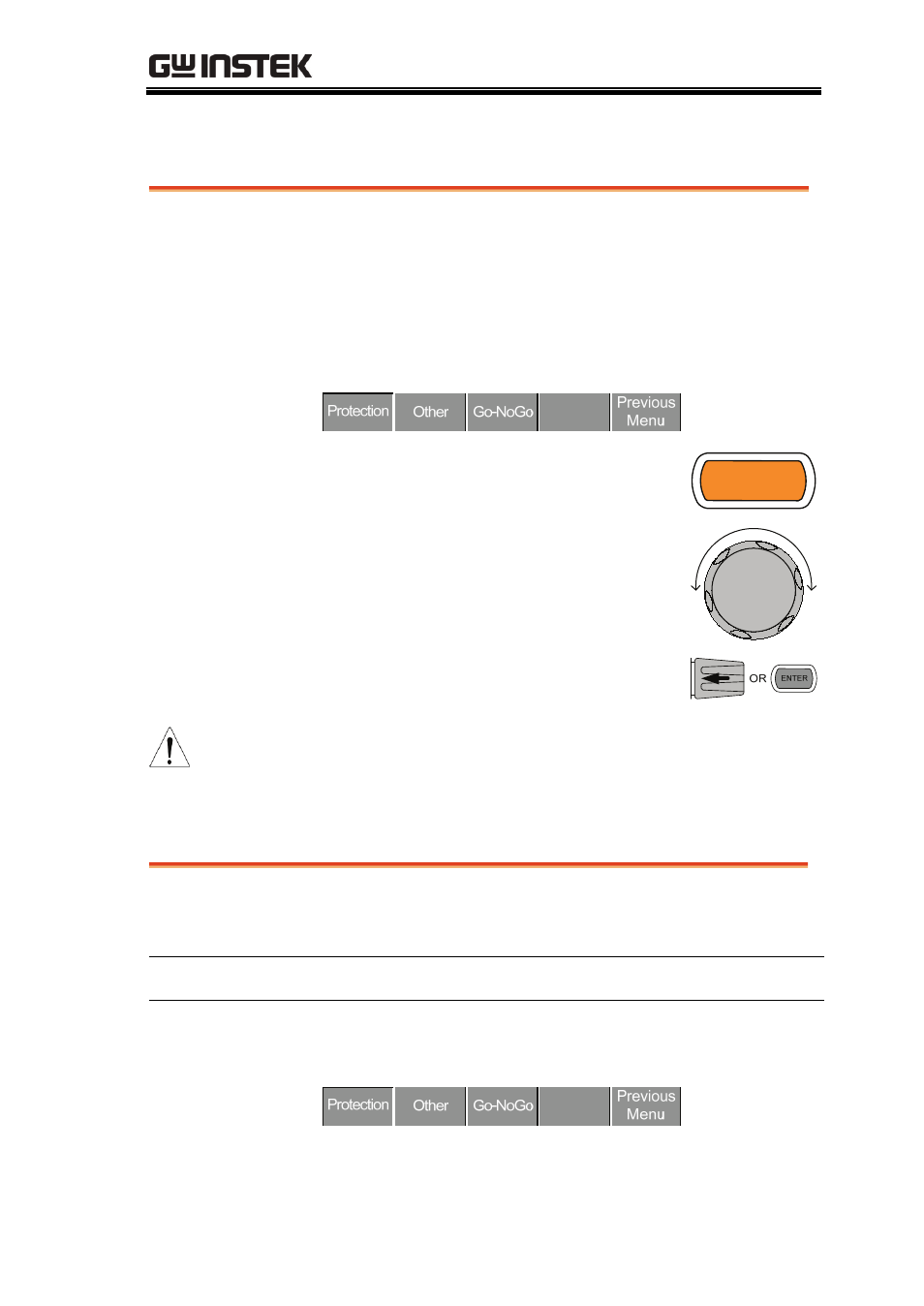

Protection Clear

Background

When any of the protection circuits have been
tripped, the Protection Clear function can be used
to reset the alarms.

Panel operation

Ensure the menu is in the
configuration menu. See page 160.

1. Turn the load off by pressing the

load key if necessary.

ON /
OFF

LOAD

2. Use the selector knob to scroll

down to Protection Clear.

3. Press the Selector knob or Enter

to clear all.

Note

The configuration settings only apply to the current
channel, other channels will not be affected.

Setting the CC Voltage Range

Background

The Constant Current Voltage range can be set to
high or low.

Parameter

CC Vrange High/Low

Panel operation

Ensure the menu is in the
configuration menu. See page 160.
