Display Overview – Mainframe
Mainframe Status
Panel

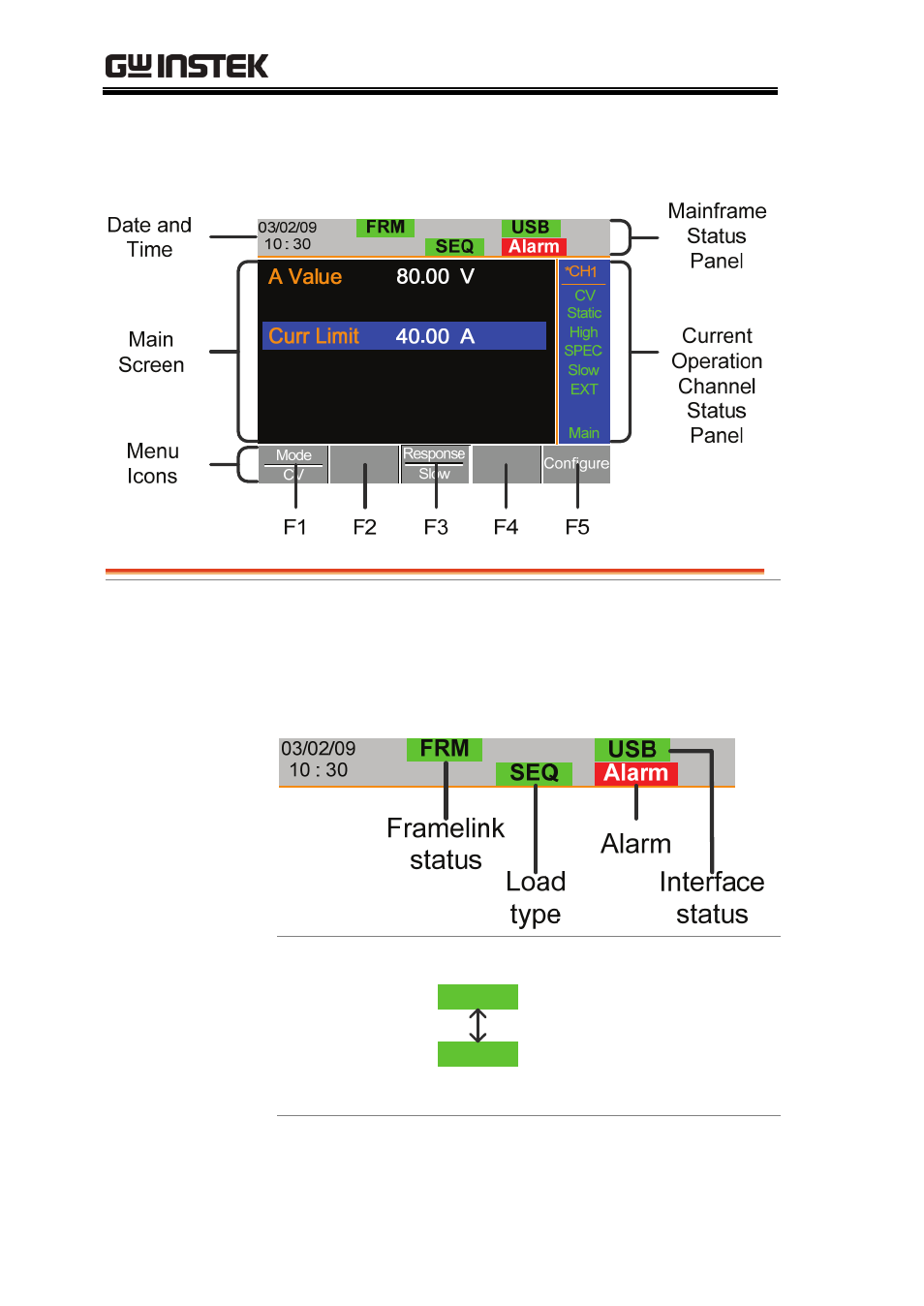

The Mainframe Status Panel displays the status of
the Mainframe interface, programs and alarm
status.
Frame Link
Status
FRS
FRM
Indicates Frame Link is
turned on and that the
mainframe is set as either
a master (FRM) or slave
(FRS) unit.
