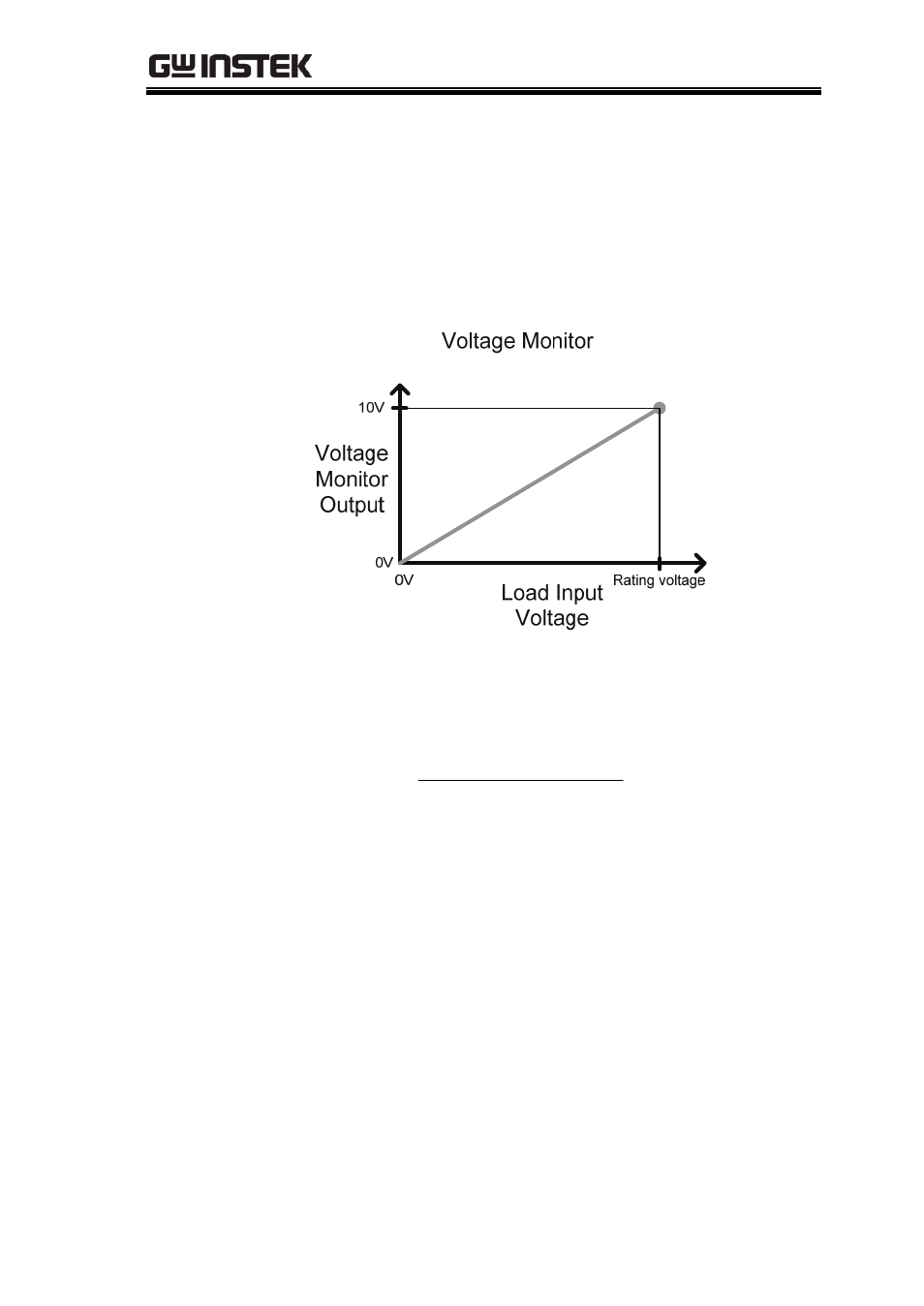

Voltage Monitor

The input voltage, like the load input current can be
externally monitored with the channel control
connectors. The VMON pin of the channel control
connector outputs a voltage of 0~10V to represent
the load input voltage as a percentage (0~100%) of
the rating voltage.

To determine the Voltage Monitor Output
(VMON) , use the following formula;

V

V

Rating

voltage

input

Load

VMON

10

Where “Rating V” is the rating voltage of the load
module.
