PEL-2000 Series User Manual
132

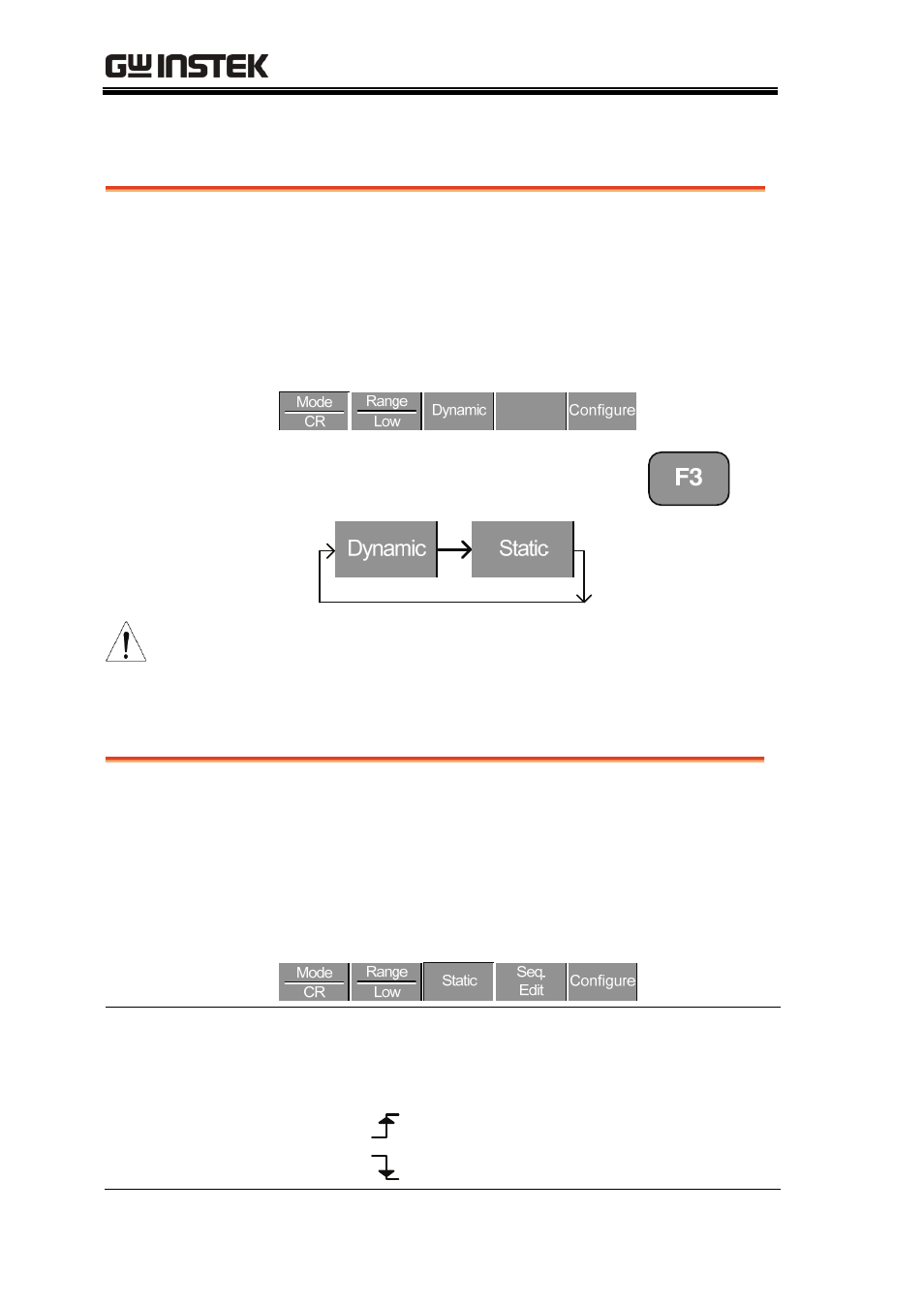

Select CR Static Mode
Background Constant Resistance mode can be set to dynamic or
static mode. Static mode is for manually varying
the load for single channel load modules or to set a
static load on dual channel modules.
Ensure the menu is in CR Mode. See page 128.
Panel Operation 1. Press the F3 key until Static
mode is selected.
Note
Changing from static to dynamic mode will only affect
the current (active) channel.
Editing CR Static Parameters
Background Single channel load modules have two resistance
levels, A Value & B Value. Dual channel load
modules have only one resistance level per
channel, A Value.
Ensure the menu is in CR Static Mode. See page 132.
Parameters A Value 0~rating Ω
B Value 0~rating Ω
SlewRate Load module dependent
SlewRate
