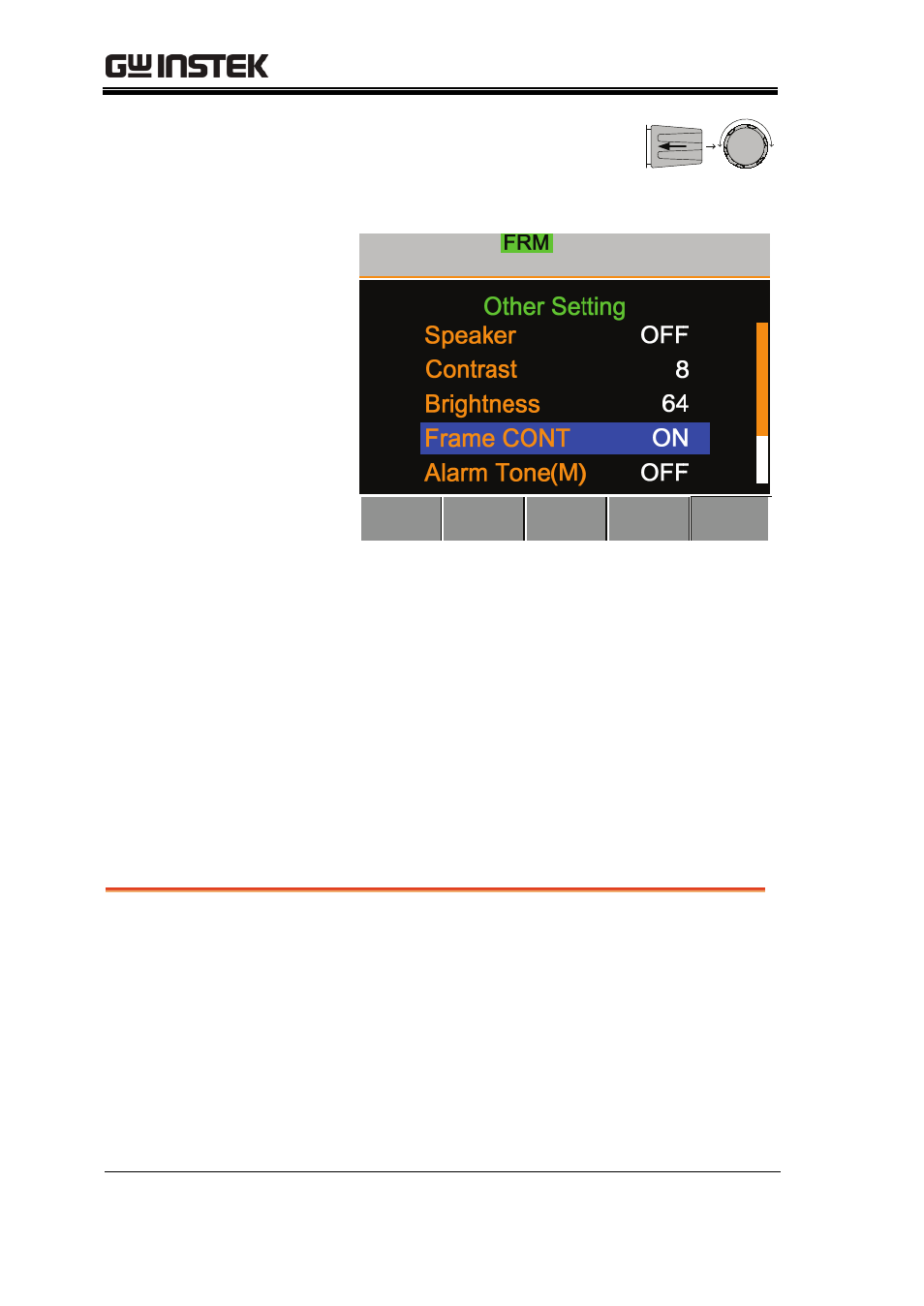

5. Press the Selector knob to edit,
then turn to turn Frame CONT
(frame control) ON or OFF.
03/02/09
10 : 30
Configure Other
System
Info
Load Interface Time Set
When Frame CONT is set to ON the mainframe will
display FRM (Master) or FRS (Slave) on the top of the
display.
6. Repeat the above steps for any
connected slave mainframe
units.
Frame control is now ready for both master and slave
mainframes.
Adjusting the Knob Control Type
Background The load module control knobs can be set to
operate independently to the mainframe.
With the Knob type set to Updated, dependent
operation is activated. Both the local (load module)
selector knob and mainframe selector knob can
change the resistance (CR mode), current (CC
mode) and voltage (CV mode). Changes from local
mode are updated on the mainframe and vice
