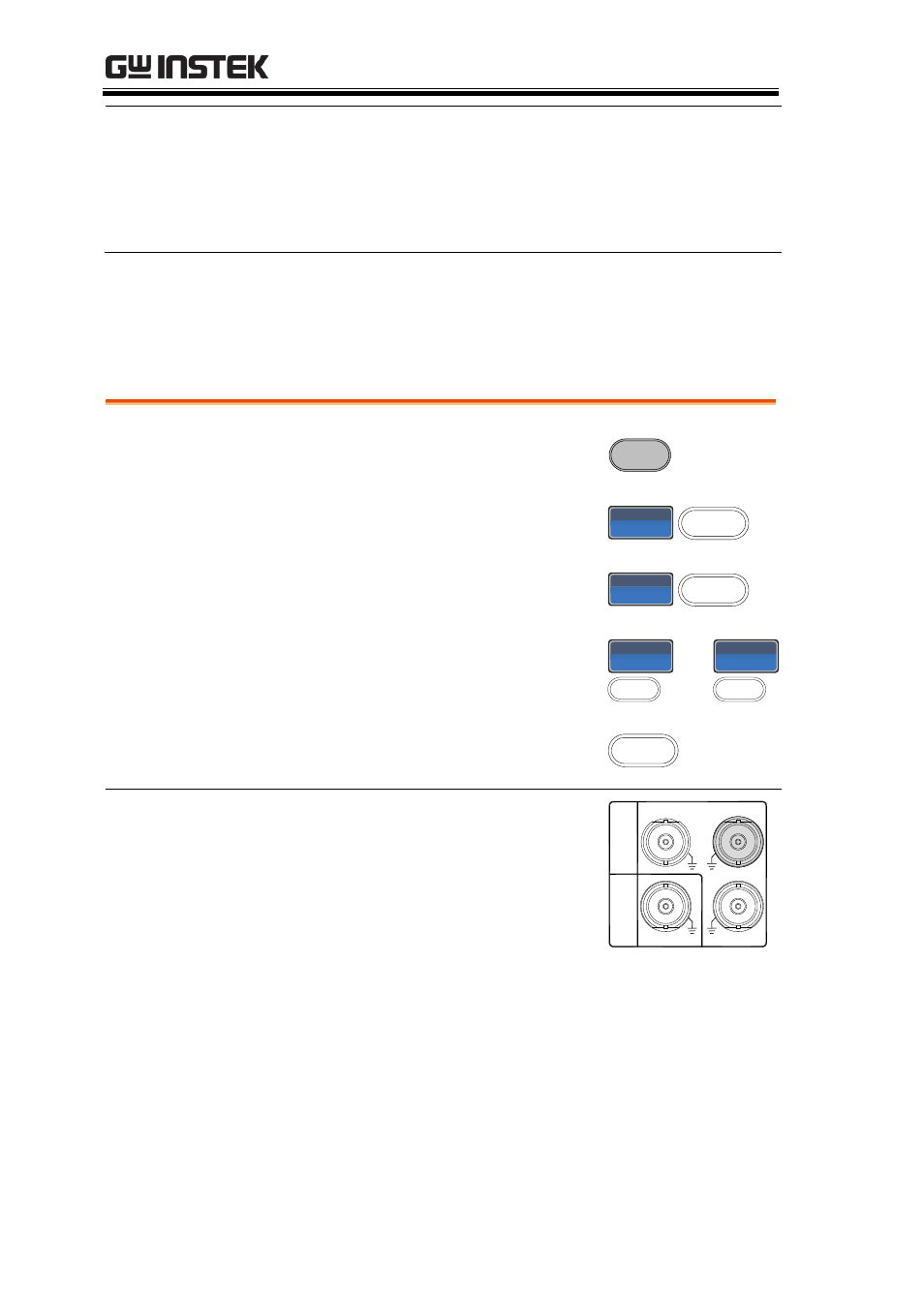

AFG-2225 Series User Manual

82

Range

Frequency Deviation

DC~25MHz
DC~15MHz(square)
DC~1MHz (Ramp)

Default depth

100Hz

Selecting (FM) Modulation Source

The function generator will accept an internal or external source for
FM modulation. The default source is internal.

Panel Operation

1. Press the MOD key.



2. Press F2 (FM).





3. Press F1 (Source).

our



4. To select the source, press F1

(Internal) or F2 (External).





~





5. Press Return to return to the

previous menu.

Return

External Source

Use the MOD INPUT terminal
on the rear panel when using an
external source.

IN

OUT

Trigger

Counter

Trigger

MOD
