AFG-2225 Series User Manual

152

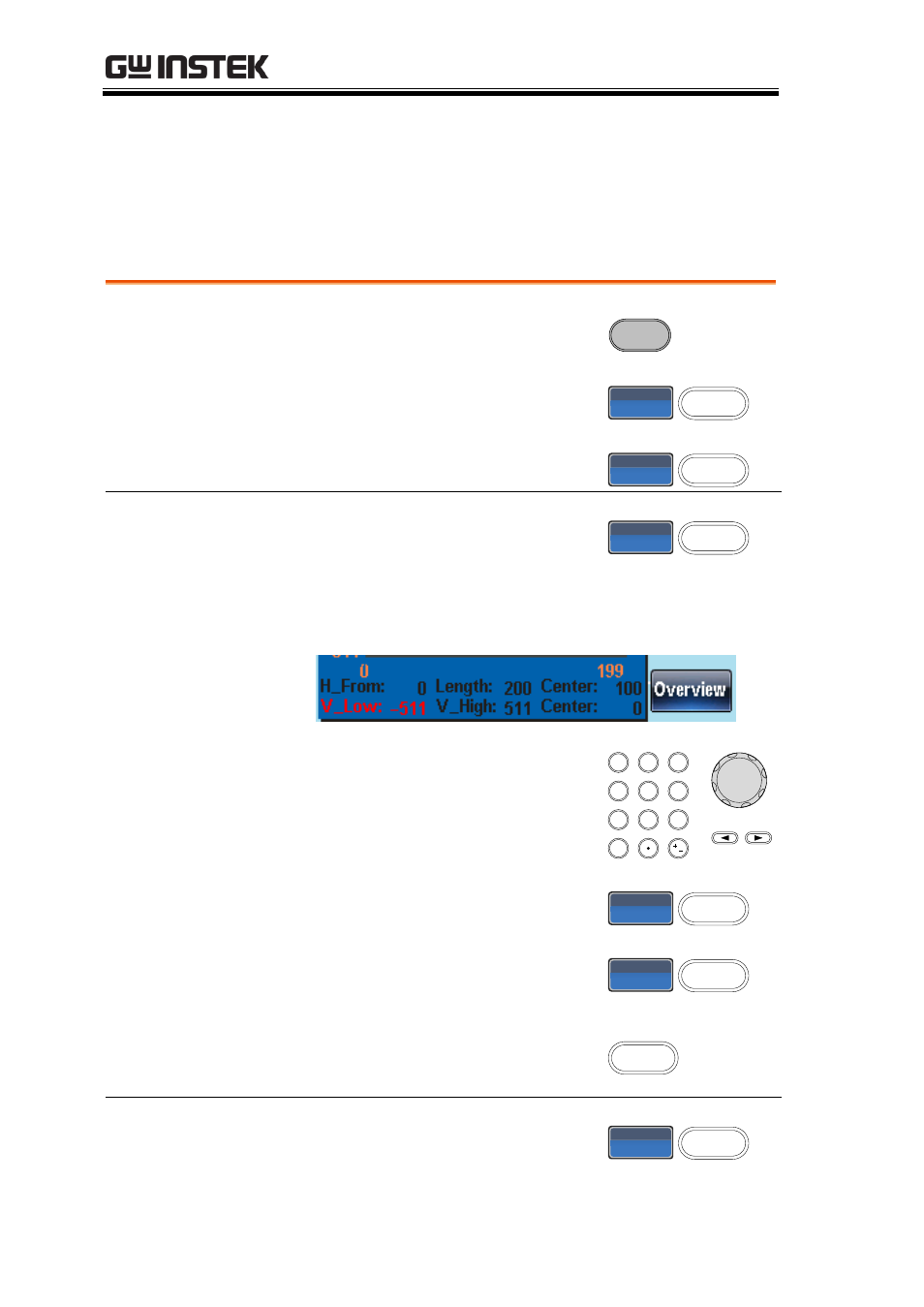

Set the Vertical Display Properties

Like the horizontal properties, the vertical display properties of the
waveform display can be created in two ways: Setting high and low
values, or setting the center point.

Panel Operation

1. Press the ARB key.



2. Press F1 (Display).

splay



3. Press F2 (Vertical).

rtal



Setting the Low
Point

4. Press F1 (Low).

ow



5. The V_Low parameter will become highlighted.

6. Use the arrow keys and scroll

wheel or number pad to enter
the V_Low value.





















7. Press Clear (F1) to cancel.

lar



8. Press F2 (Enter) to save the

settings.

ntr



9. Press Return to return to the

previous menu.

Return

Setting the High
Point

10. Repeat steps 4~9 for V_High

(F2).

h


