ARBITRARY WAVEFORMS
151
Setting the
Length 10. Repeat steps 4~9 for Length
(F2).
nth 
Using a Center
Point 11. Repeat steps 4~9 for Center
(F3).
ntr 
Zoom in 12. To zoom into the arbitrary
waveform, press F4 (Zoom
In). The Zoom In function
will reduce the length by half
each time the function is
used. The minimum
allowable length is 3.
oomn 
Zoom out 13. To zoom out from the center
point of the waveform, press
F5 (Zoom out). The Zoom out
function will increase the
length by 2. The maximum
allowable length is 4096.
oomout 

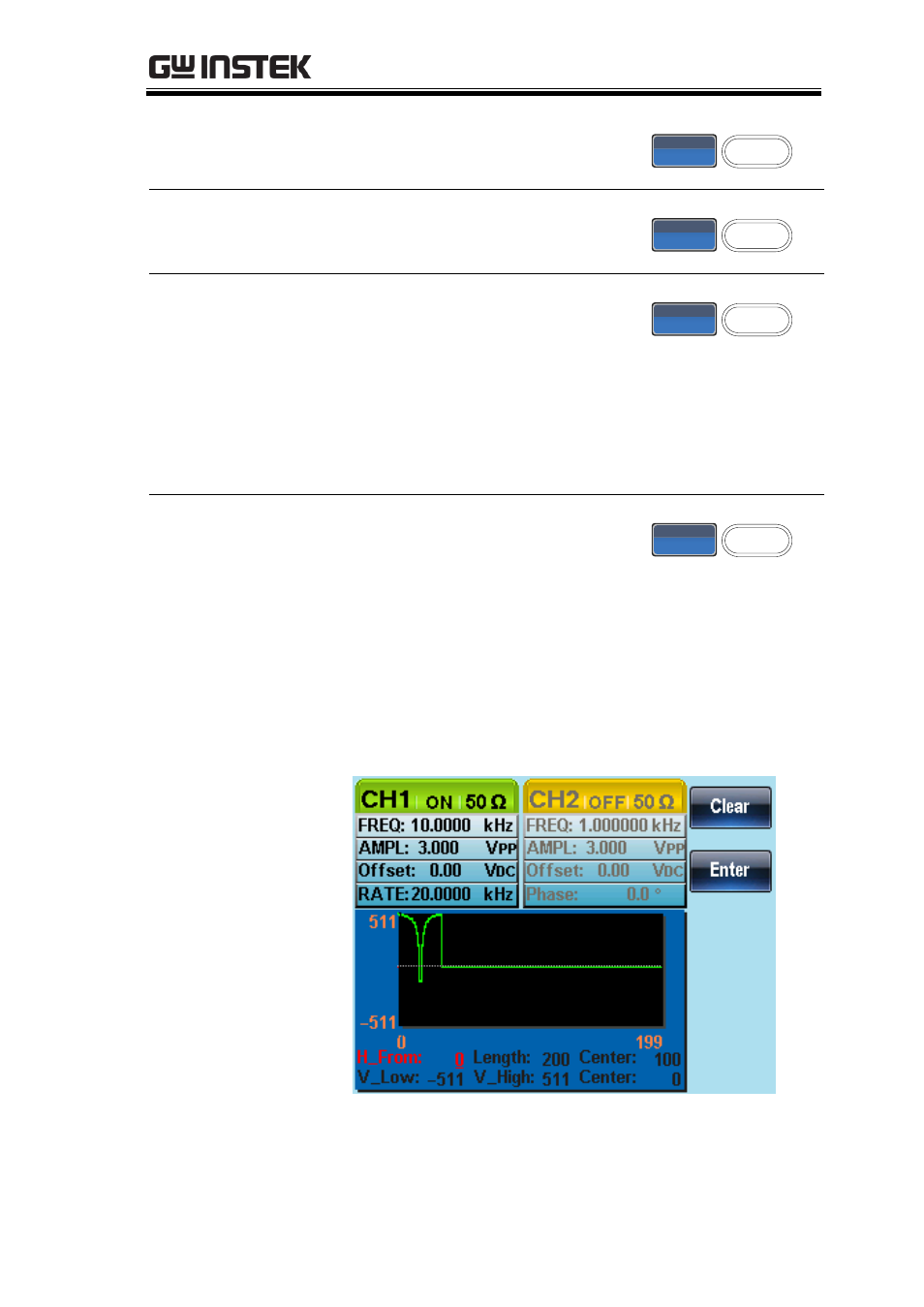

Below, an arbitrary waveform has a start of 0,
length of 200 and is centered at 100.
