AFG-2225 Series User Manual

158

Display

Panel Operation

1. Press the ARB key.



2. Press F1 (Display).

splay



3. To make the display window

cover the whole waveform,
press F5 (Overview).

Horizontal: 0~4095
Vertical: 511~ -511

vrvw



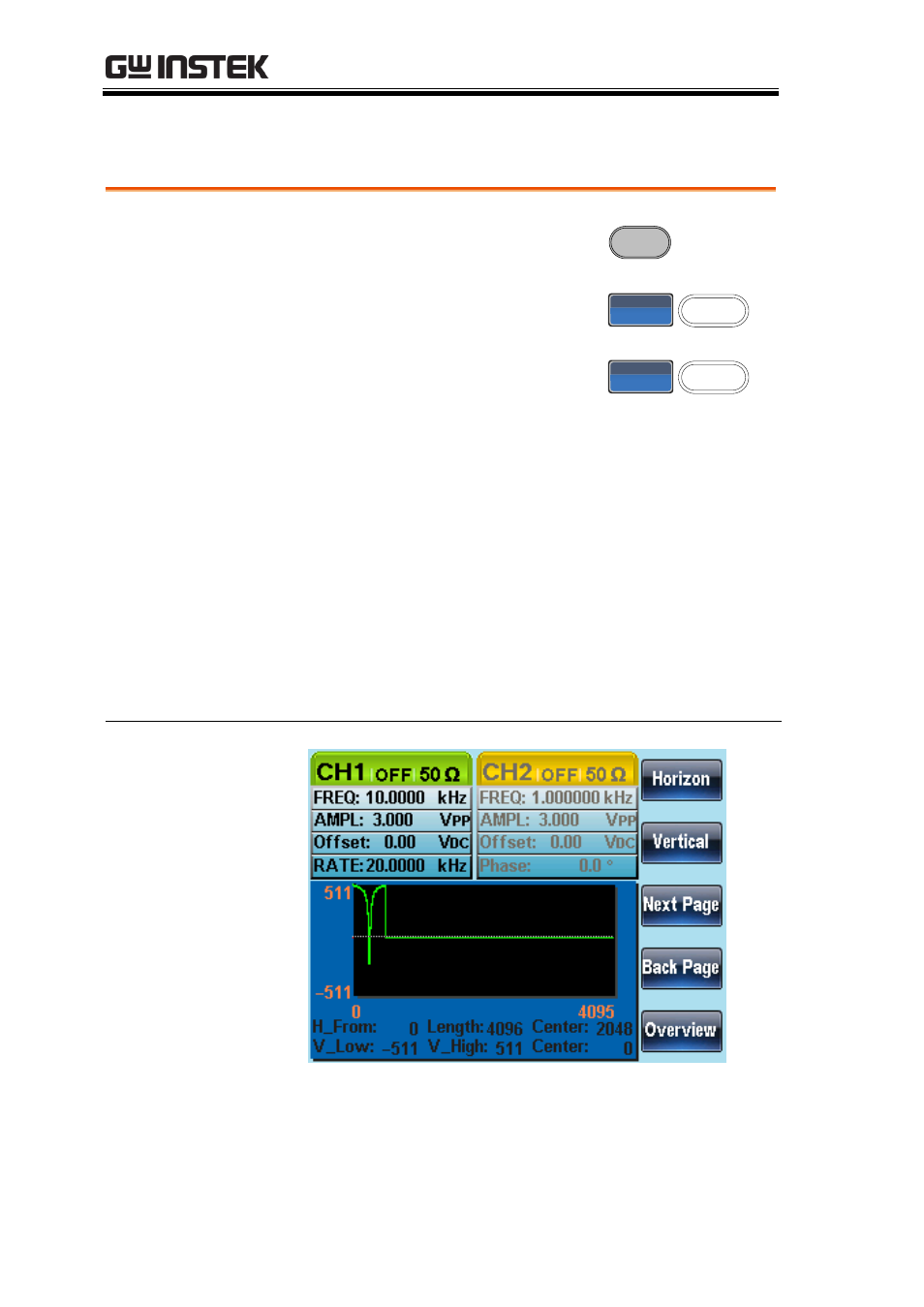

Below shows the display after Overview has been
selected.
H_From: 0  0
Length: 4004096
Center:200 2048
Vertical low/high: ±511
