AFG-2225 Series User Manual
140
Amplitude Coupling
Example: Amplitude Coupling
1. The following assumes that the amplitude has
already been set to 4Vpp with a DC offset of
1Vdc.
2. Press UTIL, F4 (Dual
Chan) to enter the
coupling function.
 ualhan
3. Press F2 (Ampl Cpl),
F1 (ON) to select the
amplitude coupling
function.
mplpl n

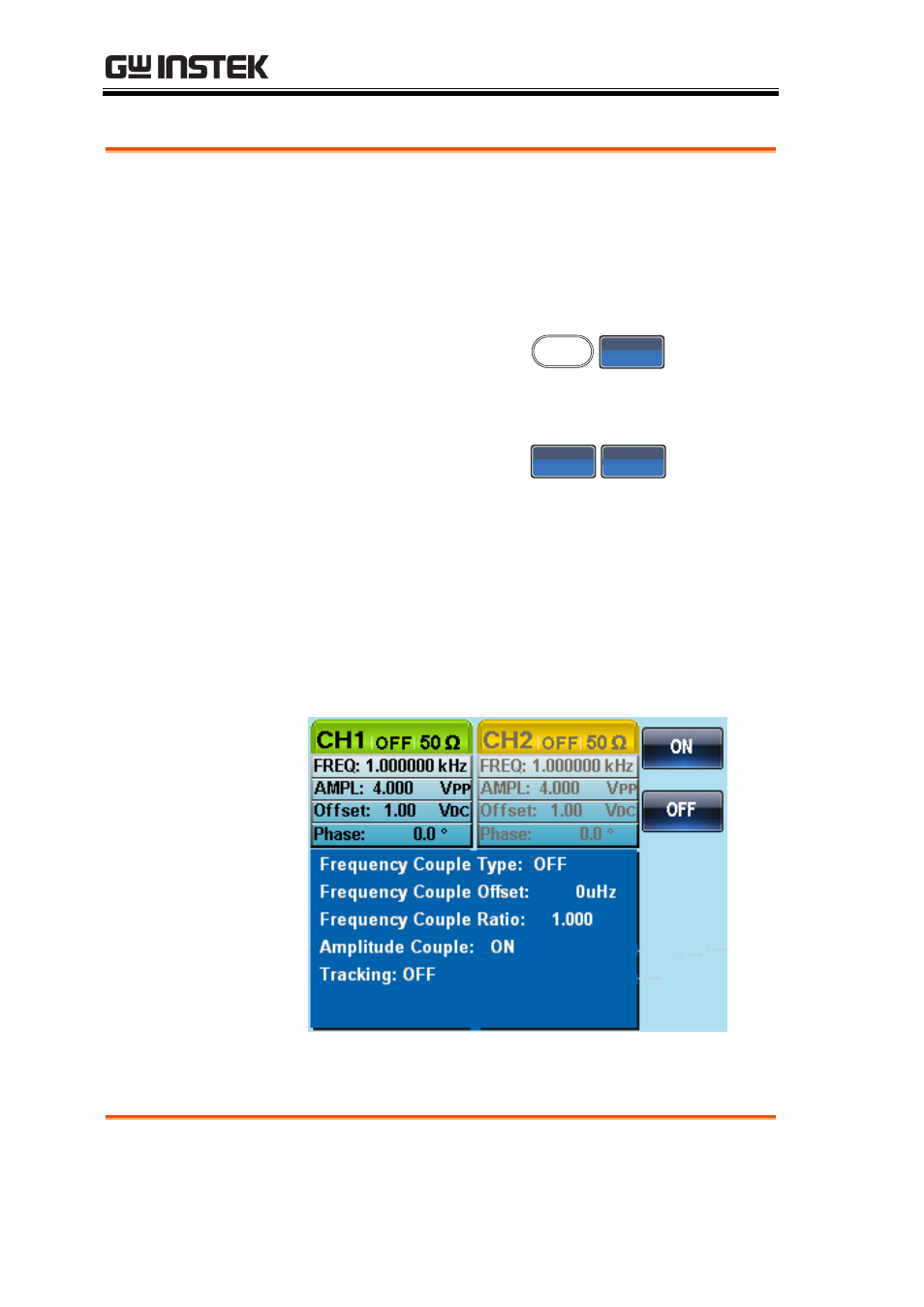

4. The amplitude and offset between both channel
is coupled. Any changes in amplitude in the
current channel is reflected in the other
channel.
Tracking
Example: Tracking
