AFG-2225 Series User Manual

56

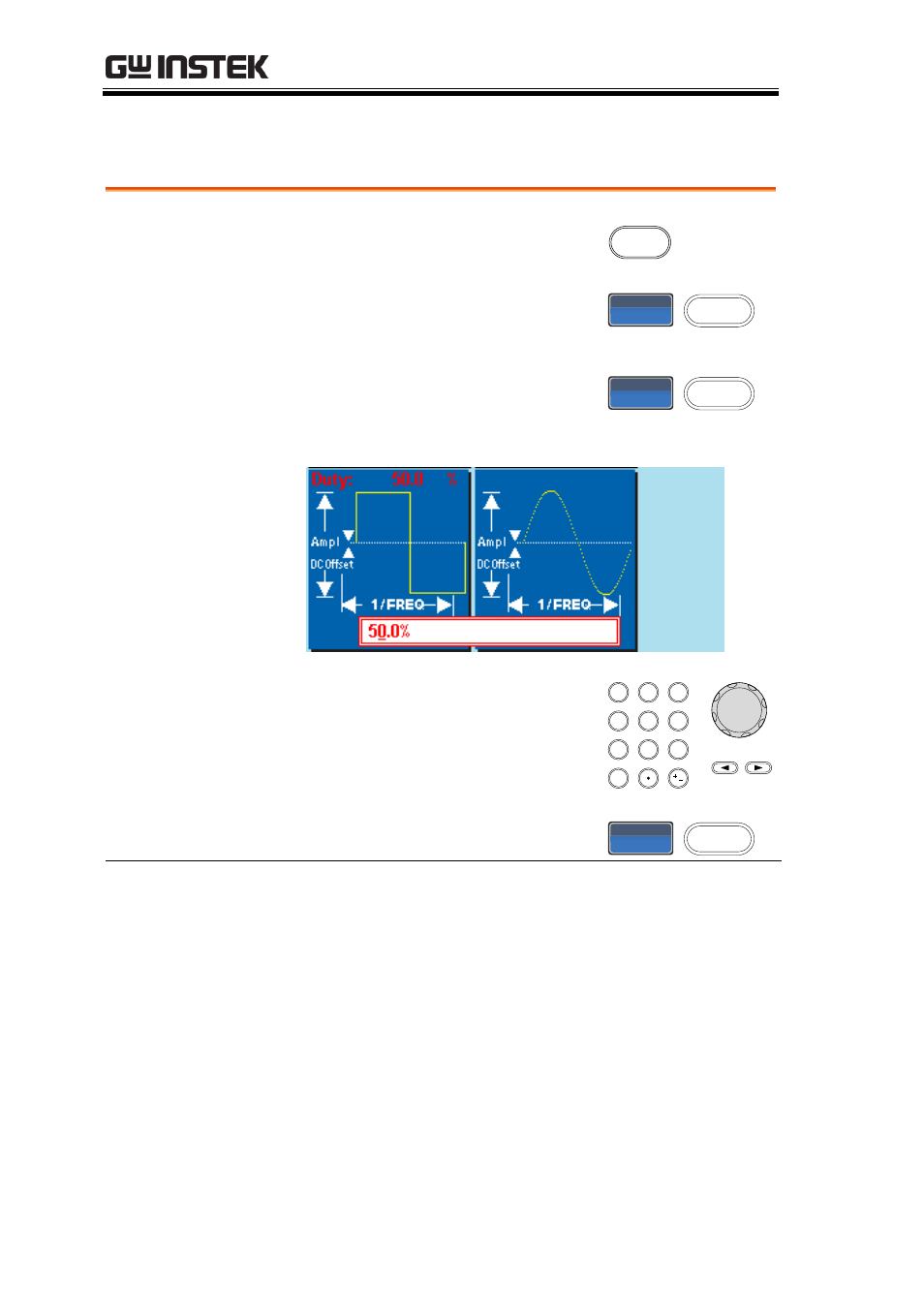

Square Wave

Panel Operation

1. Press the Waveform key.



2. Press F2 (Square) to create a

square waveform.

quar



3. Press F1 (Duty). The Duty

parameter will be highlighted
in the parameter window.

uty



4. Use the arrow keys and scroll

wheel or number pad to enter
the Duty range.

/

5. Press F2 (%) to select % units.

%



Range

Frequency

Duty Range

≤100kHz

1.0%~99.0%

100kHz~≤1MHz

10.0%~90.0%

>1MHz~25MHz

50% (Fixed)
