AFG-2225 Series User Manual
68
Select an
Arbitrary
Waveform Carrier
Shape. 3. See the Arbitrary waveform
quick reference or chapter to
use an arbitrary waveform.
Page 37
Page 147
Range AM Carrier Shape sine, square, Ramp,Pulse,
arbitrary waveform
Carrier Frequency
The maximum carrier frequency depends on the carrier shape
selected. The default carrier frequency for all carrier shapes is 1kHz.

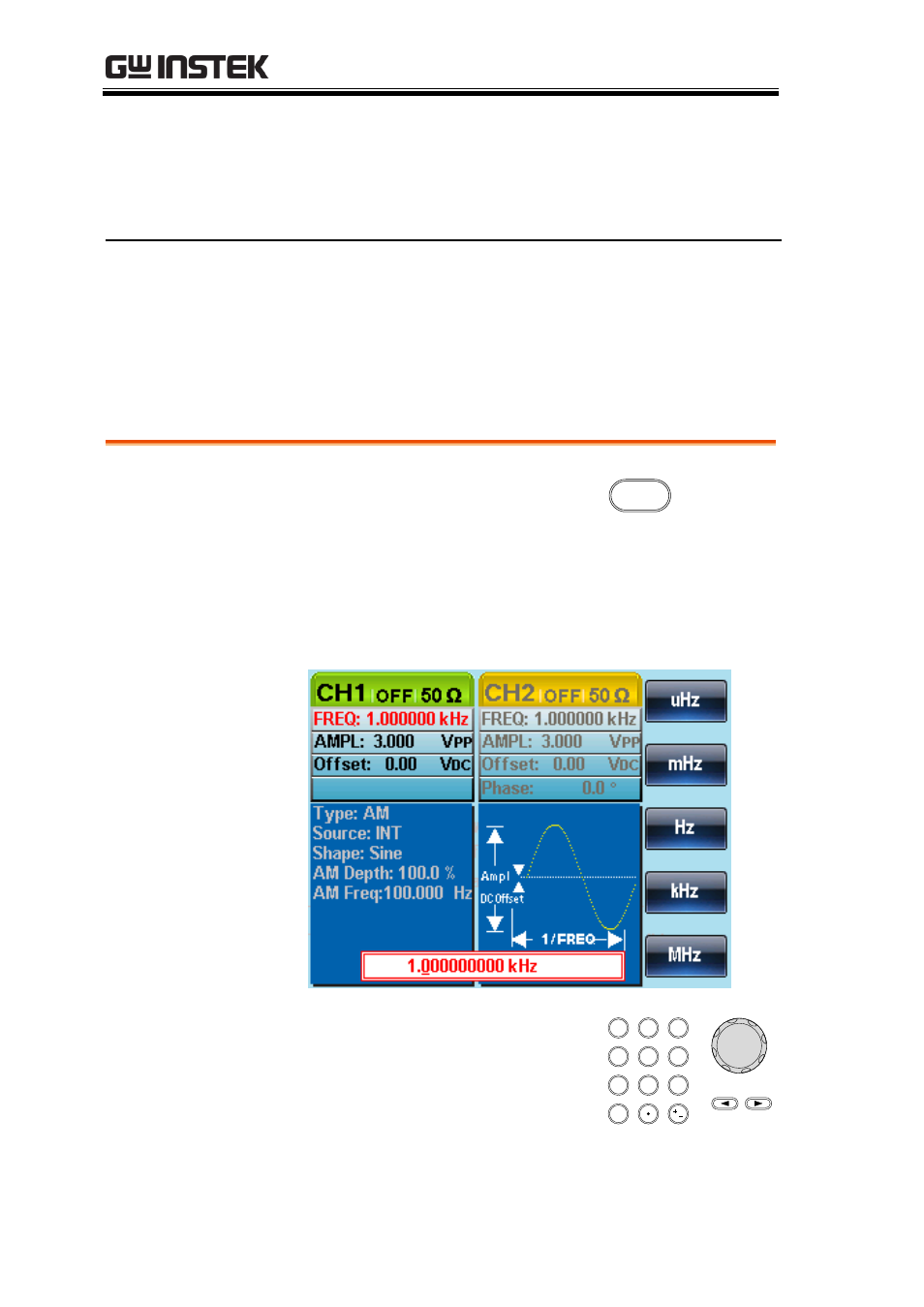

Panel Operation 1. With a carrier waveform
selected, press the
FREQ/Rate key.
/
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the arrow keys and scroll
wheel or number pad to enter
the carrier frequency.
 /
  

 



