QUICK REFERENCE
27

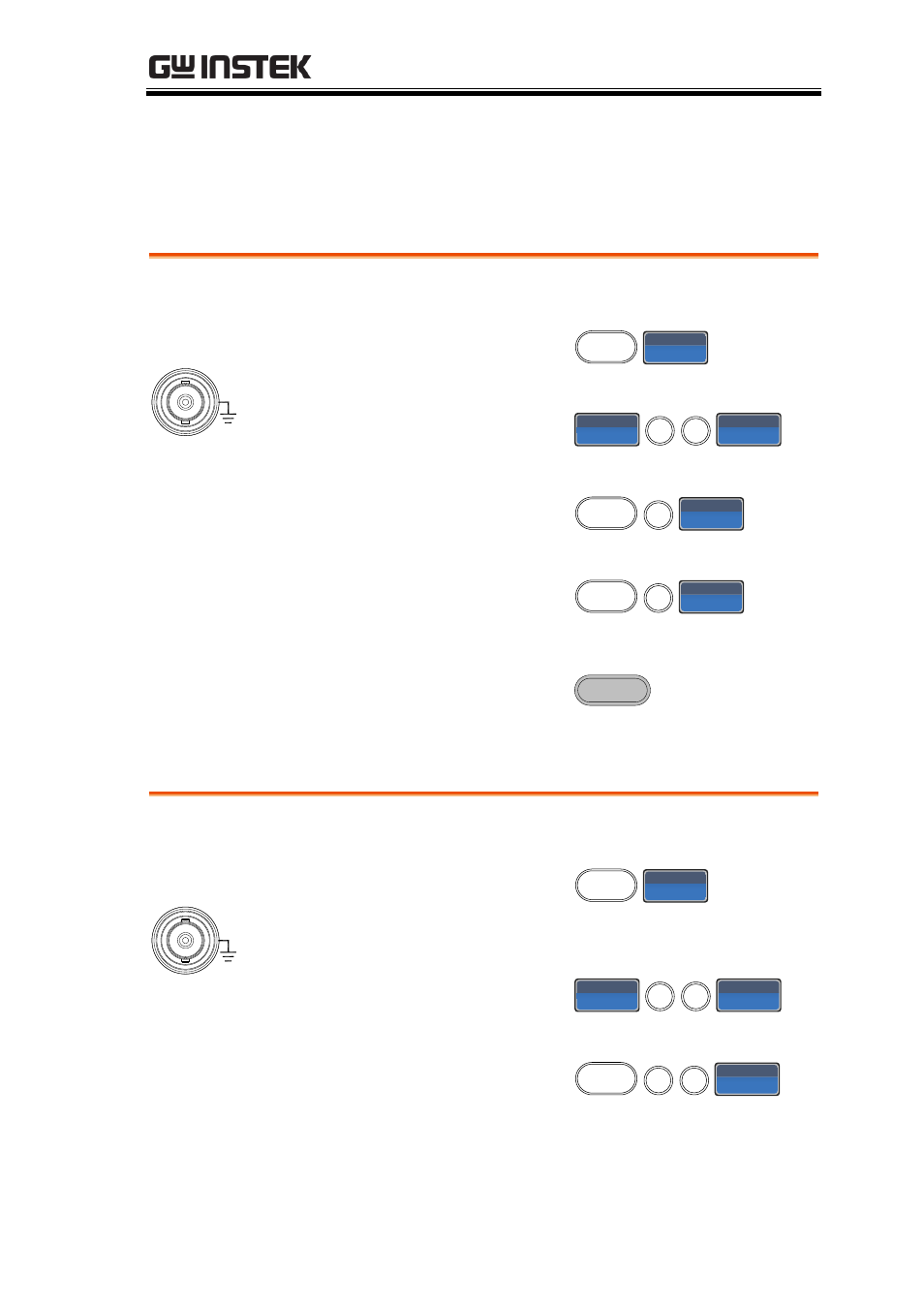

Selecting a Waveform
Square Wave
Example: Square wave, 3Vpp, 75% duty cycle, 1kHz.
Output:
50 Ω
CH1
1. Press Waveform and
select Square (F2).
 quar
2. Press Duty (F1), 7 + 5
+ %(F2).
uty   %
Input: N/A 3. Press Freq/Rate, 1 +
kHz (F4).
/  kz
4. Press AMPL followed
by, 3 + VPP (F5).
  
5. Press the Output key.
OUTPUT
Ramp Wave
Example: Ramp Wave, 5Vpp, 10kHz, 50% Symmetry.
Output:
50 Ω
CH1
1. Press the Waveform
key, and select Ramp
(F4).
 amp
2. Press SYM(F1), 5 + 0
+%(F2).
   %
Input: N/A 3. Press the Freq/Rate
key then 1 + 0 + kHz
(F4).
/  
kz
