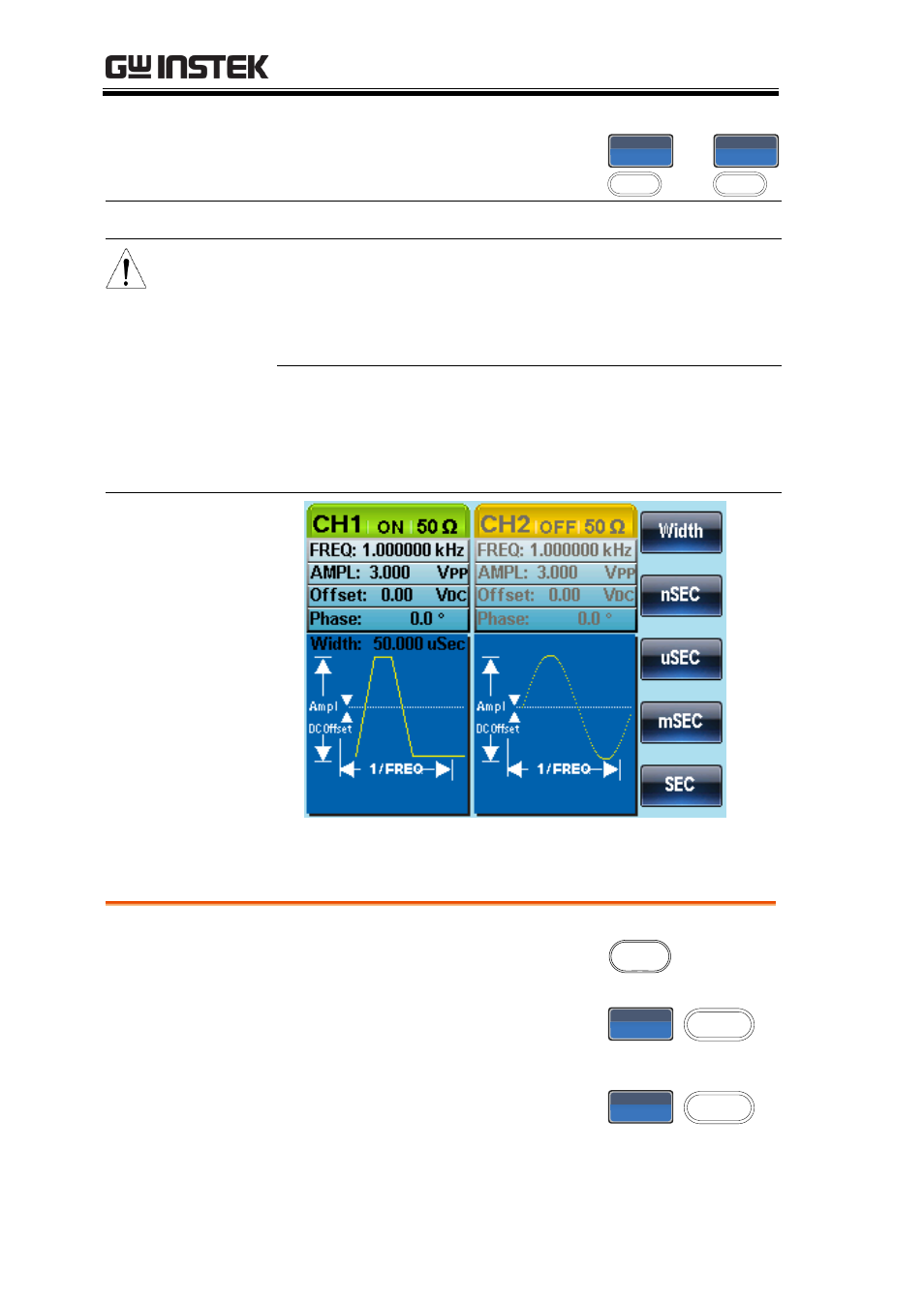

AFG-2225 Series User Manual
58
5. Press F2~F5 choose the unit
range.
n

~


Range Pulse Width 20ns~1999.9s
Note
Minimum Pulse Width Frequency ≤ 25MHz: 20ns
pulse width.
Frequency ≤ 100 kHZ:
1/4096 duty cycle.
Resolution Frequency ≤ 25MHz: 20ns
pulse width.
Frequency ≤100 kHZ:
1/4096 duty cycle.
Setting a Ramp Waveform
Panel Operation 1. Press the Waveform key.

2. Press F4 (Ramp) to create a
ramp waveform.
amp 
3. Press F1 (SYM). The SYM
parameter will be highlighted
in the parameter window.
 
