AFG-2225 Series User Manual

178

Load a Waveform from USB

Panel Operation

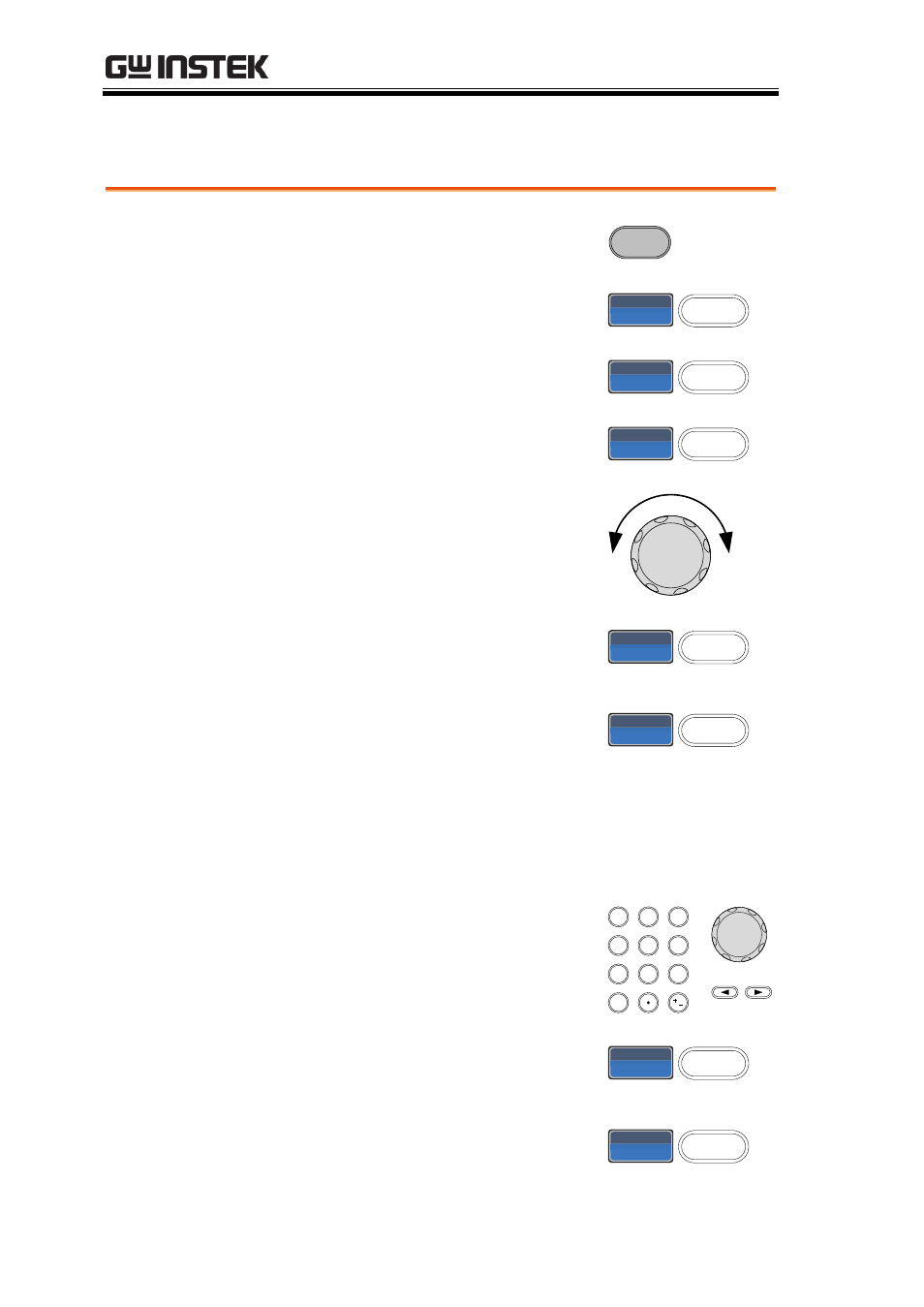

1. Press the ARB key.



2. Press F5 (More).

or



3. Press F2 (Load).

oad



4. Press F2 (USB).





5. Use the scroll wheel to choose

a file name.

6. Press F1 (Select) to select the

file to load.

lt



7. Press F3 (To) to choose the

starting point for the loaded
waveform.

o



8. The Load To property will become highlighted

in red.

9. Use the arrow keys and scroll

wheel or number pad to enter
the starting point.

/

10. Press F2(Enter) to confirm the

Start point.

ntr



11. Press F4(Done).

on


