ARBITRARY WAVEFORMS

161

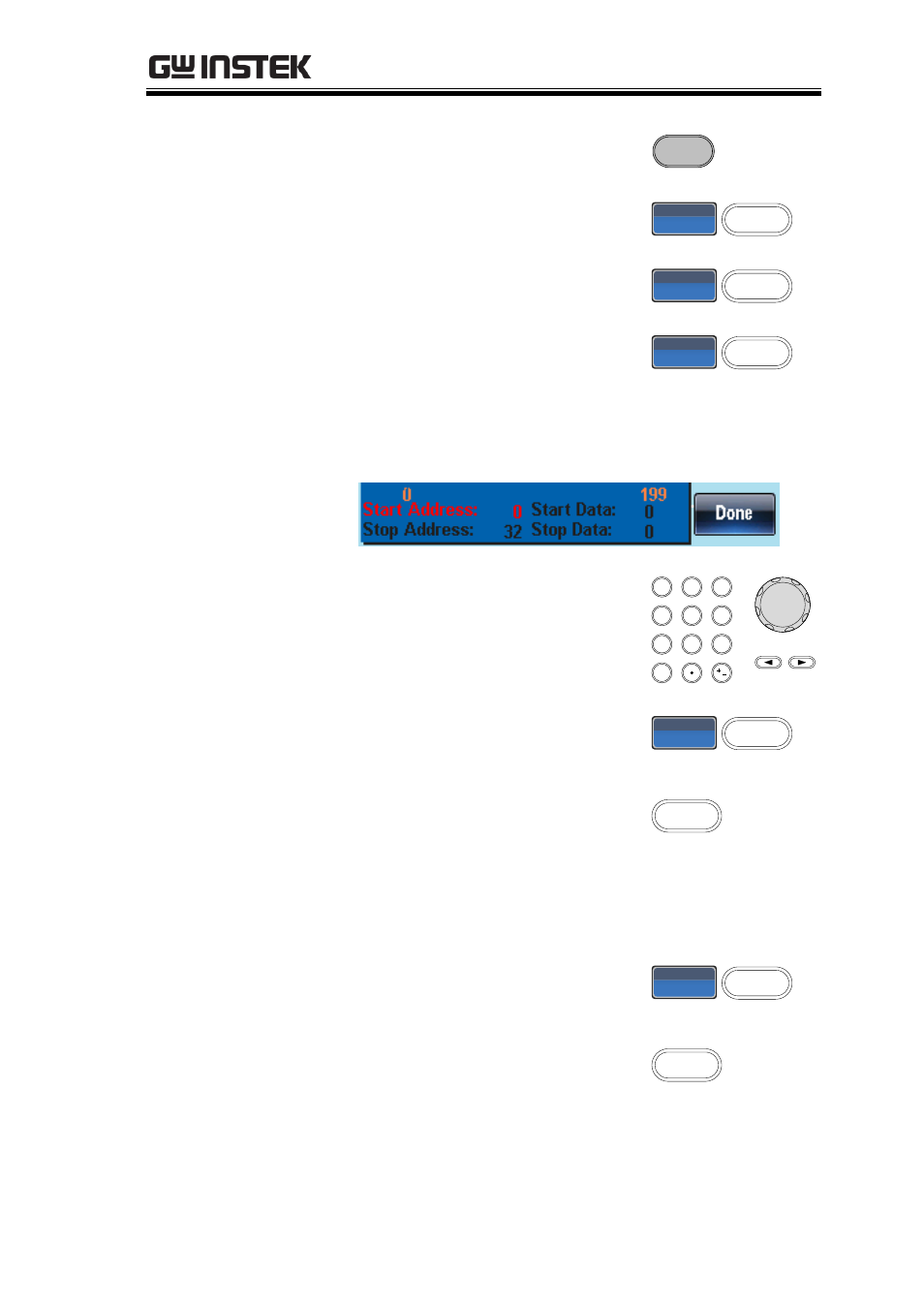

Panel Operation

1. Press the ARB key.



2. Press F2 (Edit).

dt



3. Press F2 (Line).

n



4. Press F1 (Start ADD).

tart



5. The Start Address parameter will be

highlighted in red.

6. Use the arrowkeys keys and

scroll wheel or number pad
to enter the start address.





















7. Press F2 (Enter) to save the

settings.

ntr



8. Press Return to return to the

previous menu.

Return

9. Repeat steps 4~8 for Start Data (F2), Stop

Address (F3) and Stop Data (F4).

10. Press F5 (Done) to confirm

the line edit.

on



11. Press Return to return to the

previous menu.

Return
