ARBITRARY WAVEFORMS

159

Editing an Arbitrary Wavefrom

Adding a Point to an Arbitrary Waveform

Background

The AFG-2225 has a powerful editing function that
allows you to create points or lines anywhere on
the waveform.

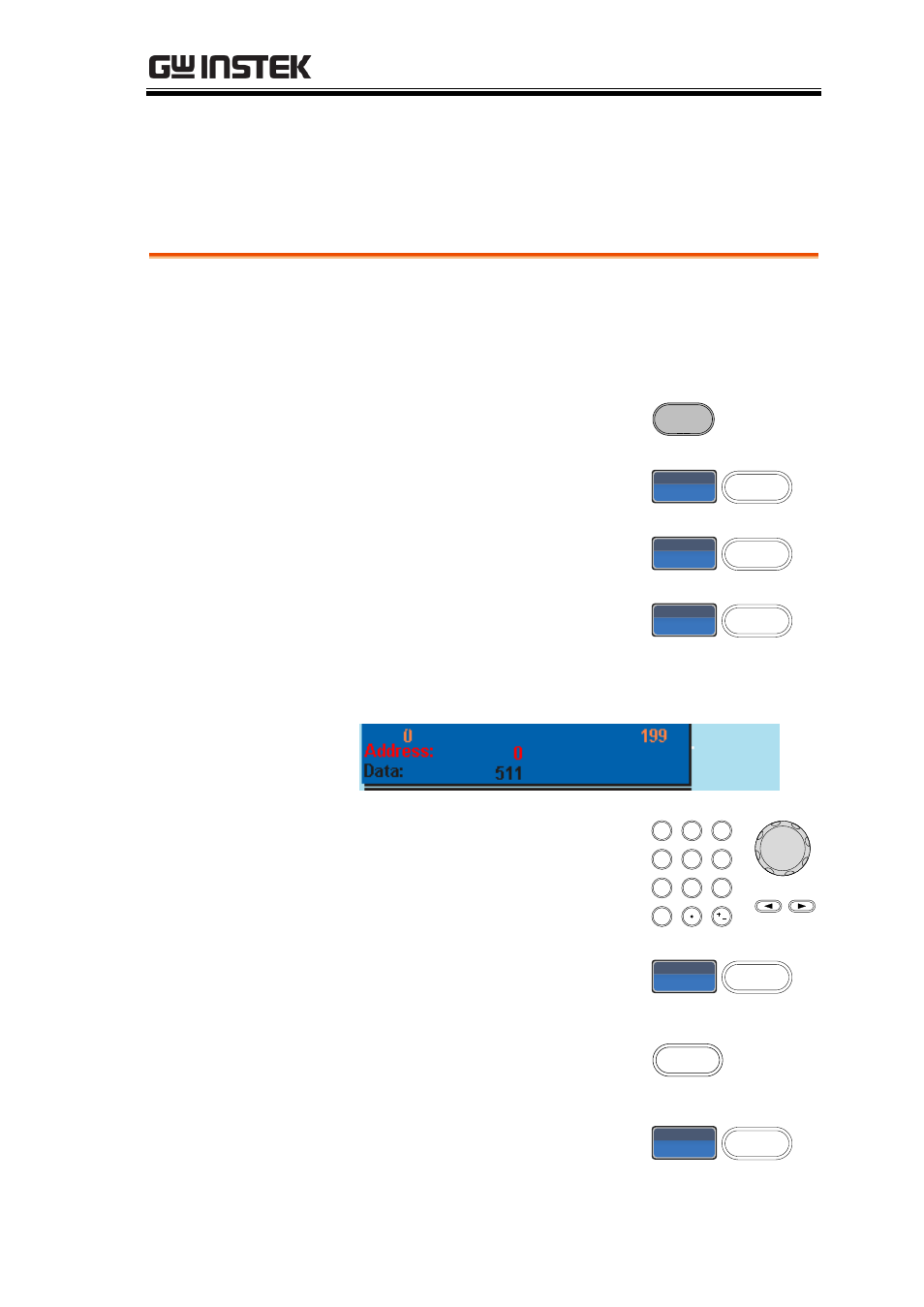

Panel Operation

1. Press the ARB key.



2. Press F2 (Edit).

dt



3. Press F1 (Point).

ont



4. Press F1 (Address).

ddrss



5. The Address parameter becomes highlighted.

6. Use the arrow keys and scroll

wheel or number pad to enter
the Address value.





















7. Press F2 (Enter) to save the

settings.

ntr



8. Press Return to return to the

previous menu.

Return

9. Press F2 (Data).

ata


