AFG-2225 Series User Manual
122

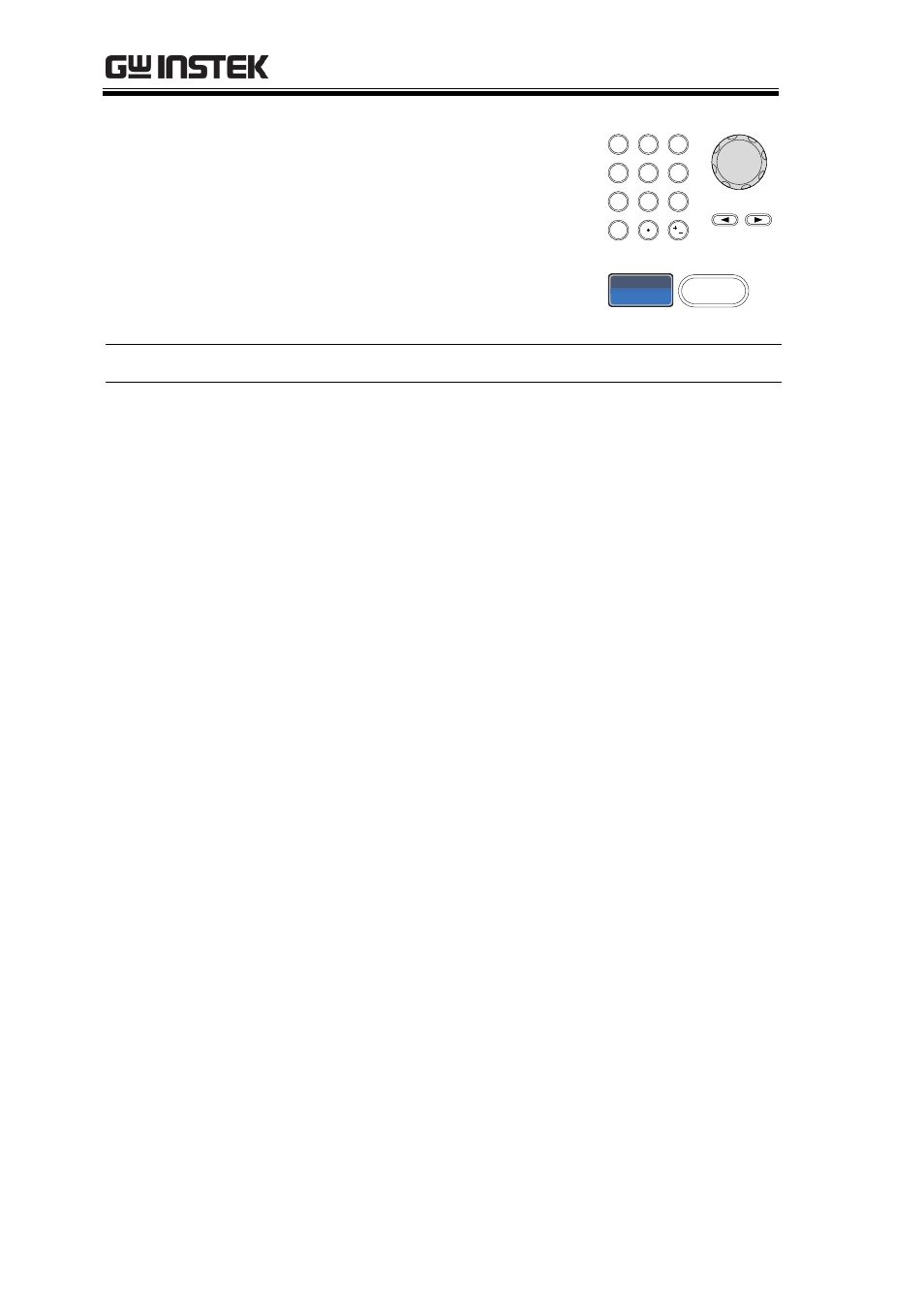

5. Use the arrow keys and scroll
wheel or number pad to enter
the number of cycles.
 /
  

 



6. Press F2 to select the Cyc
unit.
y 
Range Cycles 1~65535
Note Burst cycles are continuously output when the
internal trigger is selected. The burst period
determines the rate of bursts and the time between
bursts.
Burst cycle must be less than the product of the
burst period and wave frequency.
Burst Cycle < (Burst Period x Wave Frequency)
If the burst cycle exceeds the above conditions, the
burst period will be automatically increased to
satisfy the above conditions.
If gated burst mode is selected, burst cycle is
ignored. Though, if the burst cycle is changed
remotely whilst in gated mode, the new burst cycle
is remembered when used next.
