MODULATION
109
Selecting Sweep Mode
The Sweep button is used to output a sweep. If no
settings have been configured, the default settings
for output amplitude, offset and frequency are
used.

Setting Start and Stop Frequency
The start and stop frequencies define the upper and lower sweep
limits. The function generator will sweep from the start through to
the stop frequency and cycle back to the start frequency. The sweep
is phase continuous over the full range sweep range (1μHz-25MHz).
Panel Operation
1. Press the SWEEP key.

2. Press F3 (Start) or F4 (Stop) to
selelect the start or stop
frequency.
tart

~
top


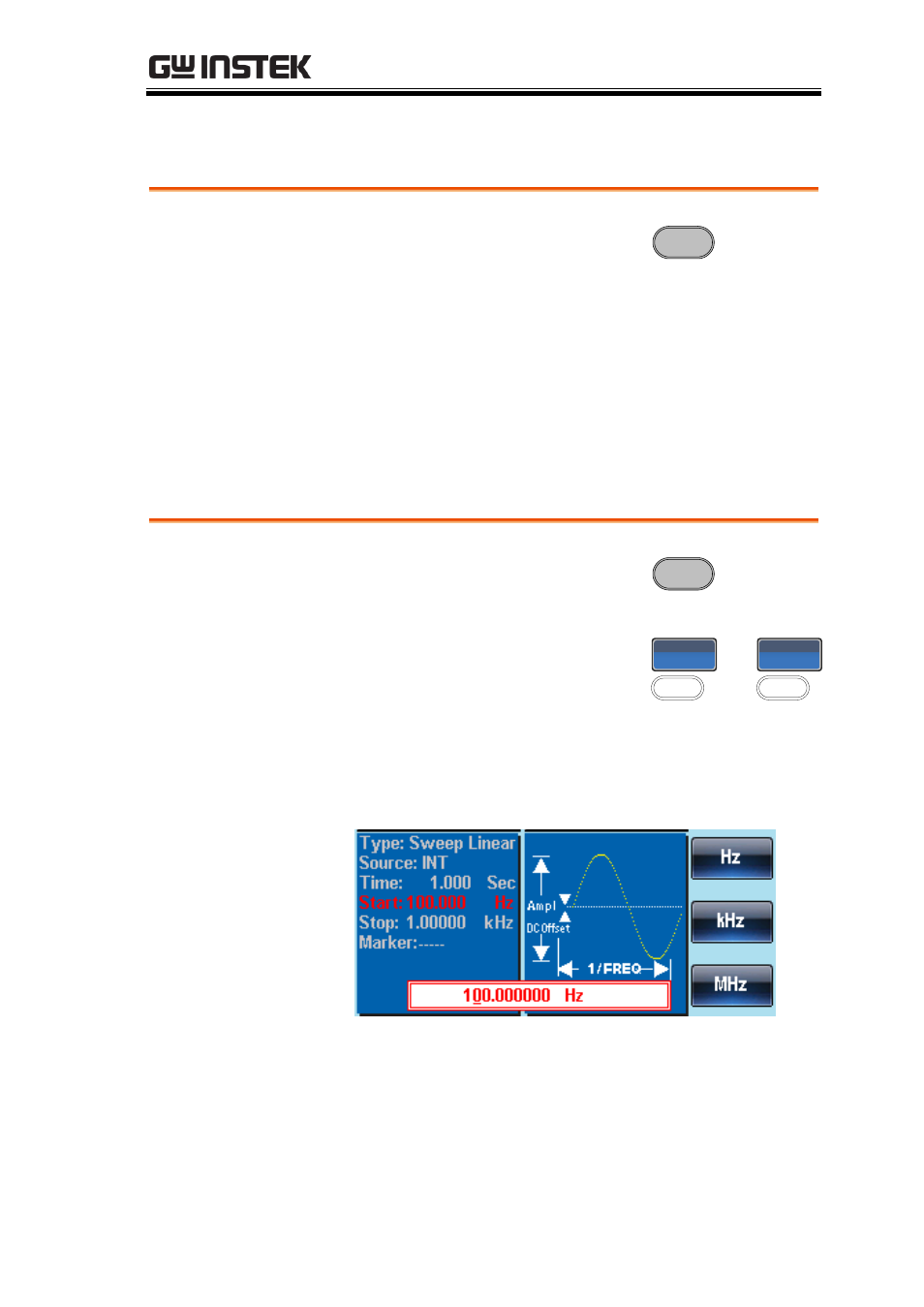

3. The Start or Stop parameter will become
highlighted in the waveform display area.
Start
