Burst Phase

Burst Phase defines the starting phase of the burst waveform. The
default is 0˚.

Panel Operation

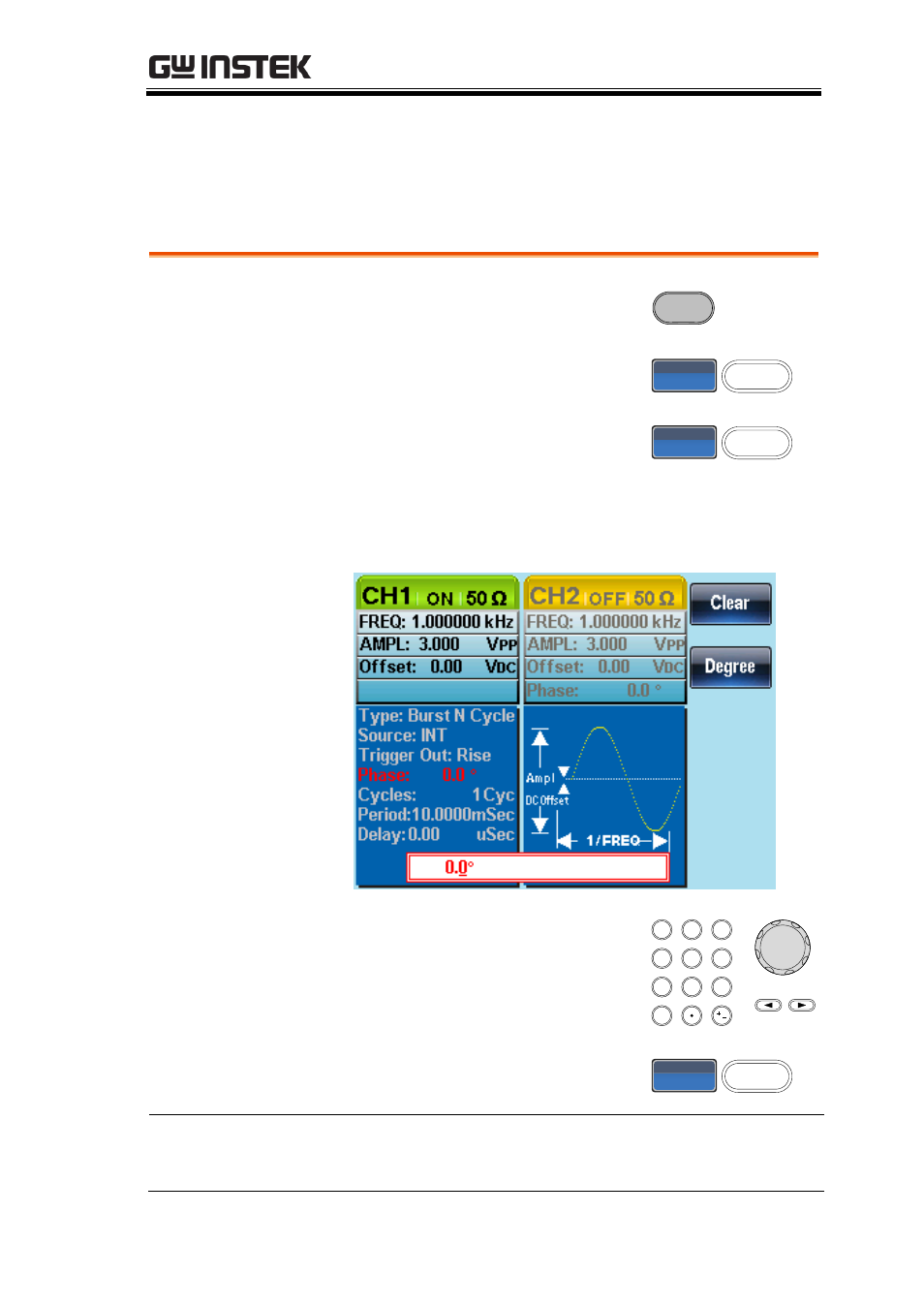

1. Press the Burst key.



2. Press F1 (N Cycle).

yl



3. Press F3 (Phase).

has



4. The Phase parameter will become highlighted

in the Waveform Display area.

5. Use the arrow keys and scroll

wheel or number pad to enter
the phase.





















6. Press F2 (Degreee) to select

the phase unit.

r



Range

Phase

-360˚~+360˚

Default

0˚
