SUM Carrier Frequency
The maximum carrier frequency depends on the selected carrier
waveform. The default carrier frequency is 1kHz.

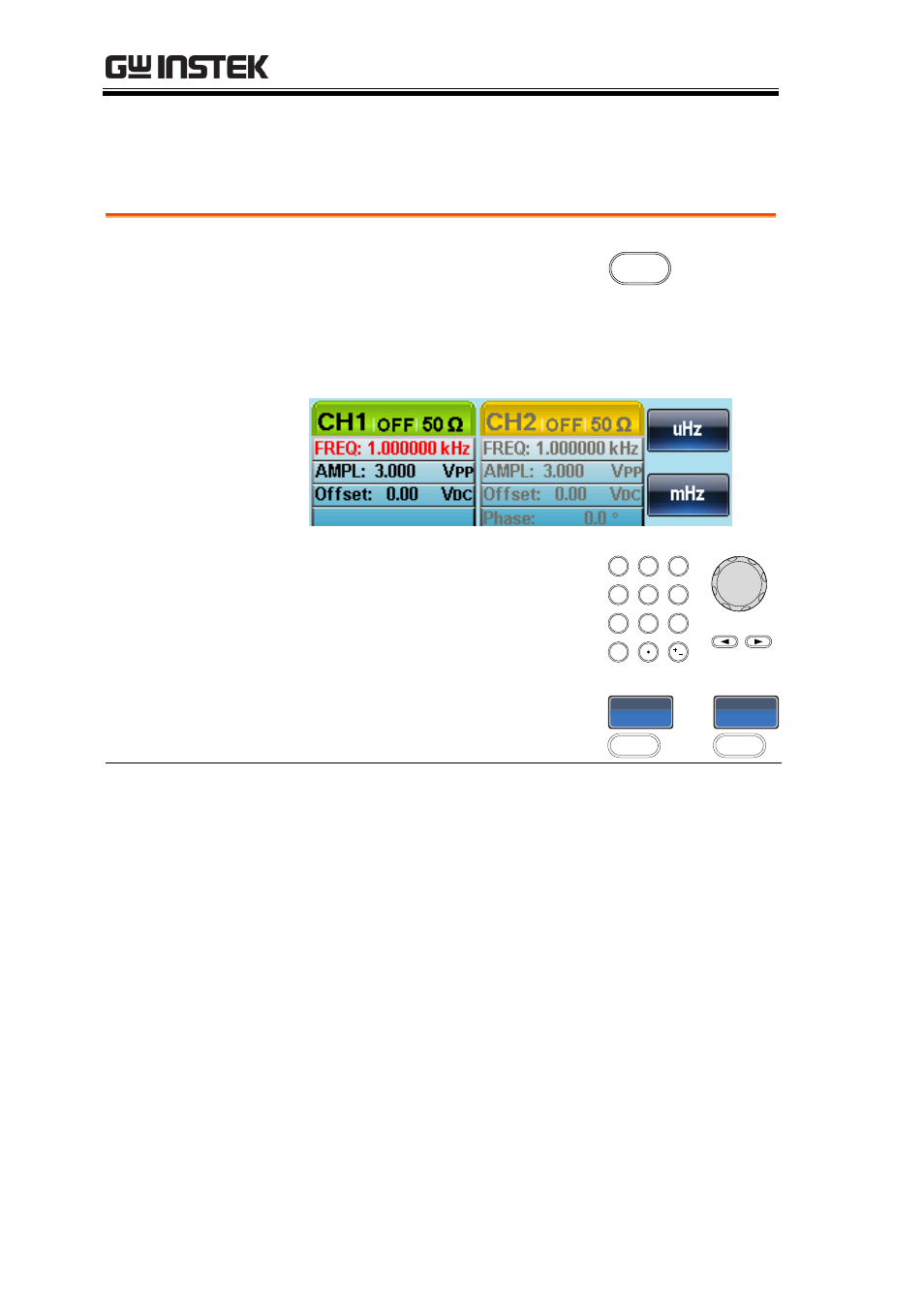

Panel Operation 1. Press the FREQ/Rate key to
select the carrier frequency.
/
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the arrow keys and scroll
wheel or number pad to enter
the frequency.
 /
  

 



4. Press F1 ~ F5 to select the
frequency units.
uz

~
z

Range Carrier Waveform Carrier Frequency
Sine wave 1μHz~25MH
Square wave 1μHz~25MHz
Pulse wave 500μHz~25MHz
Ramp wave 1μHz~1MHz
Default frequency 1 kHz
