MODULATION
103

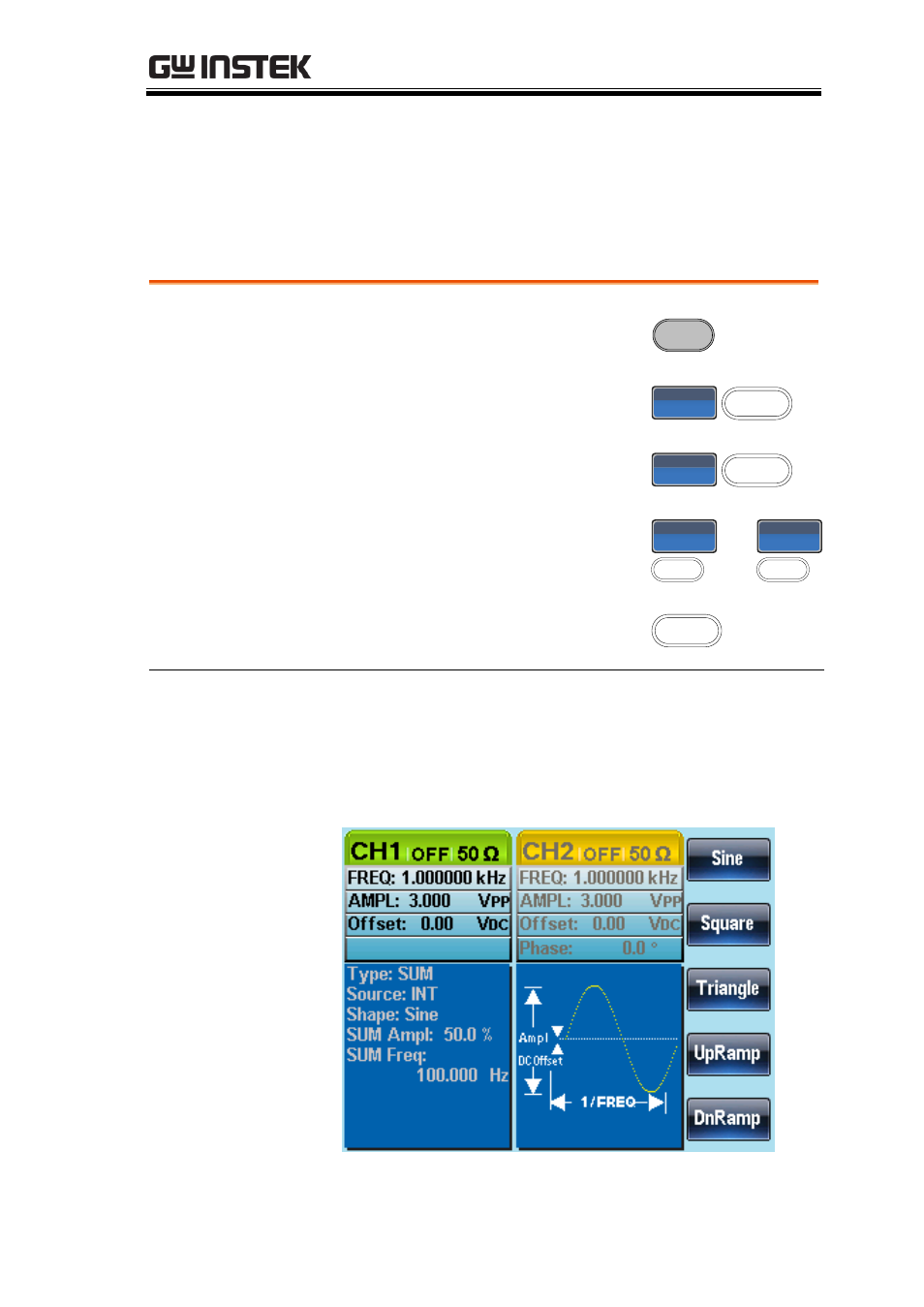

SUM Waveform
The function generator can accept internal and external sources. The
AFG-2225 includes sine, square, triangle, UpRamp and DnRamp as
internal sources. The default waveform is sine.
Panel Operation 1. Press the MOD key.

2. Press F5 (SUM).
 
3. Press F4 (Shape).
hap 
4. Press F1~F5 to select the
source waveform.
n

~
namp

5. Press Return to return to the
previous menu.
Return
Range Square wave 50% Duty cycle
Up ramp 100% Symmetry
Triangle 50% Symmetry
Down ramp 0% Symmetry
