AFG-2225 Series User Manual

150

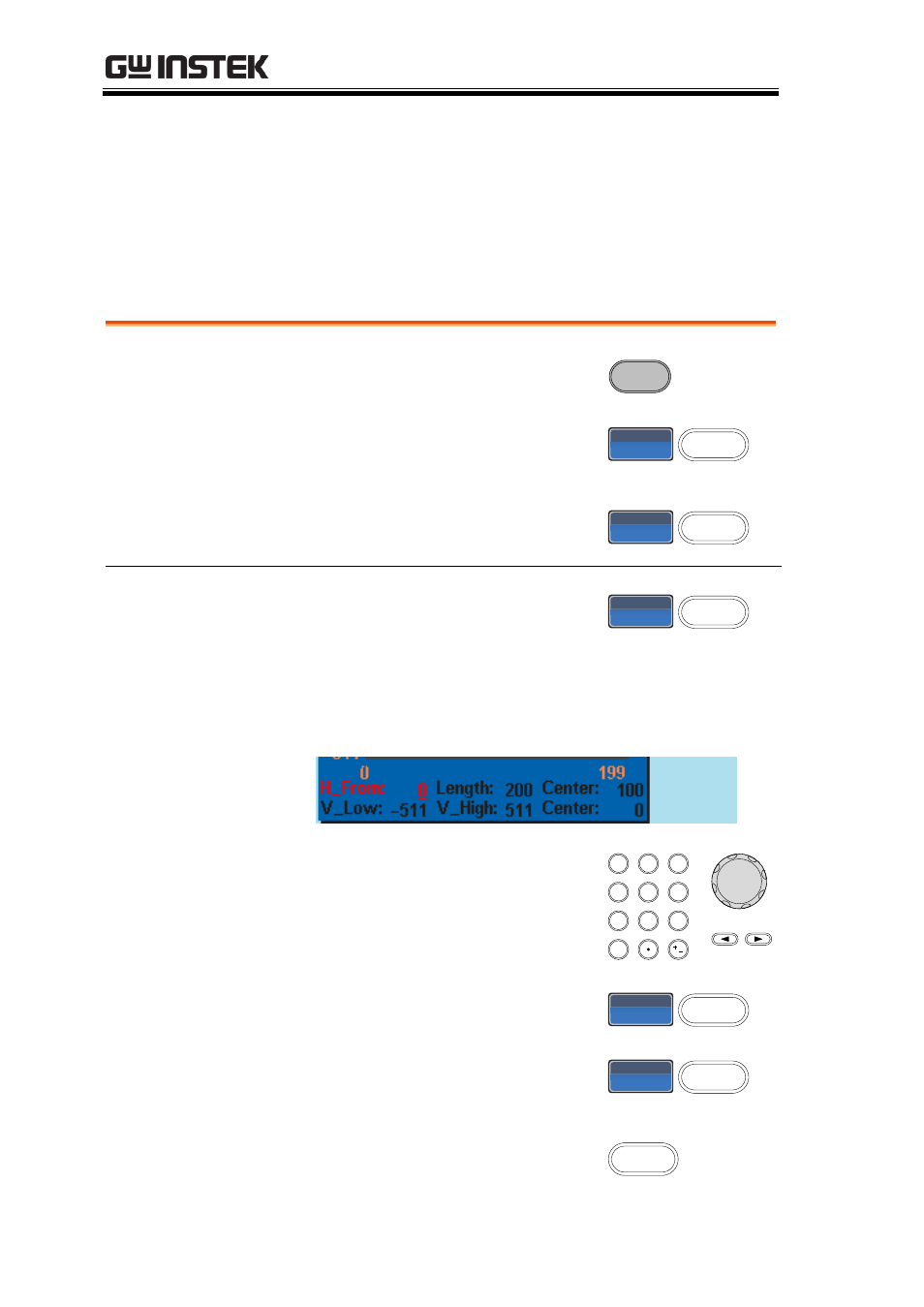

Display an Arbitrary Waveform

Set the Horizontal Display Range

The horizontal window bounds can be set in one of two ways: Using
a start point and length, or a center point and length.

Panel Operation

1. Press the ARB key.



2. Press F1 (Display) to enter the

display menu.

splay



3. Press F1 (Horizon) to enter

the horizontal menu.

orzon



Using a Start
Point

4. Press F1( Start)

tart



5. The H_From parameter will become

highlighted.

6. Use the arrow keys and scroll

wheel or number pad to enter
the H_From value.





















7. Press Clear ( F1) to cancel.

lar



8. Press F2 (Enter) to save the

settings.

ntr



9. Press Return to return to the

previous menu.

Return
