Saving/loading an arbitrary waveform, Saving a waveform to internal memory, Arbitrary waveforms – GW Instek AFG-2225 User Manual User Manual

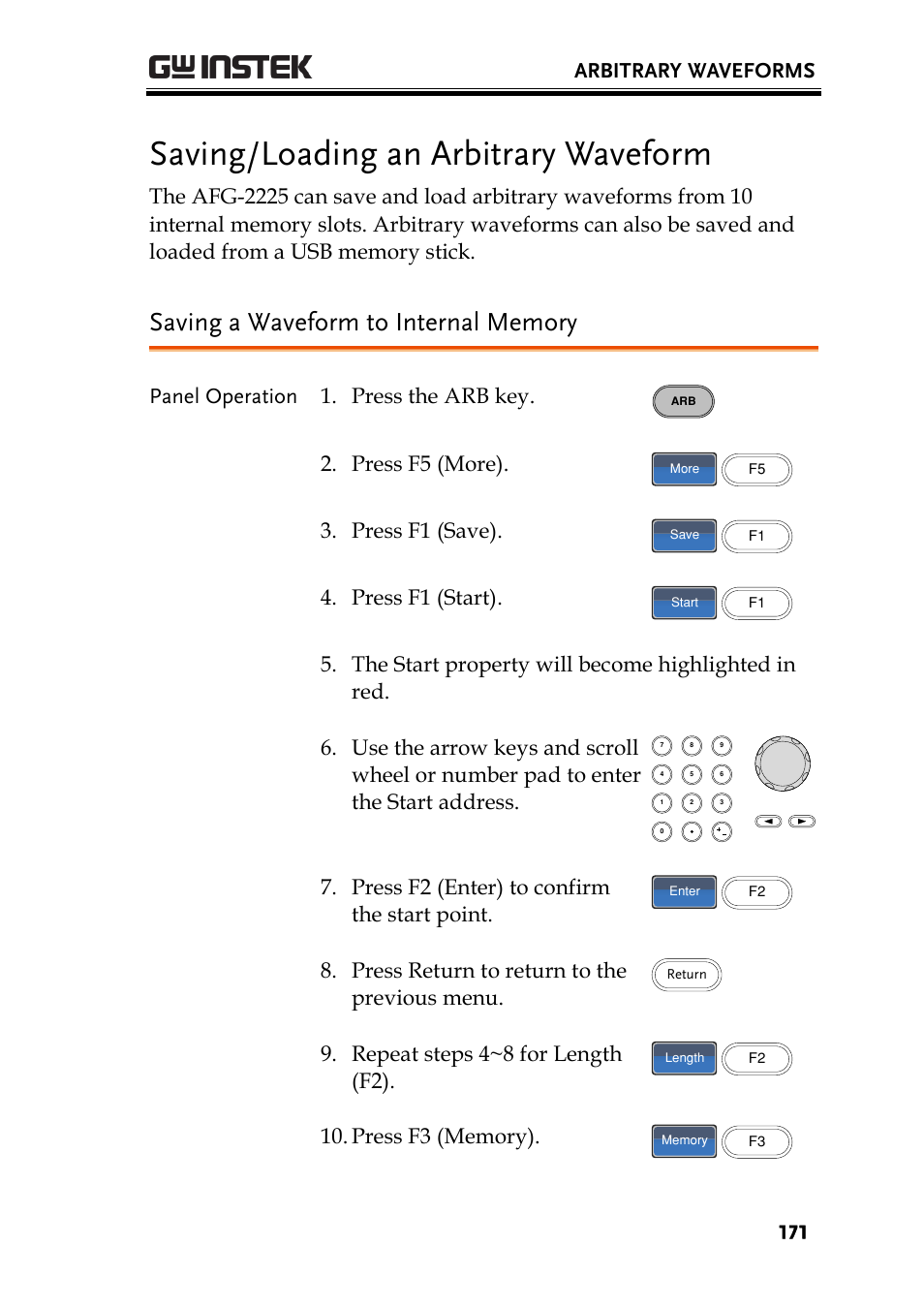

Page 171: Panel operation 1. press the arb key, Press f5 (more), Press f1 (save), Press f1 (start), Press f2 (enter) to confirm the start point, Press return to return to the previous menu, Repeat steps 4~8 for length (f2)
Saving/loading an arbitrary waveform, Saving a waveform to internal memory, Arbitrary waveforms | Panel operation 1. press the arb key, Press f5 (more), Press f1 (save), Press f1 (start), Press f2 (enter) to confirm the start point, Press return to return to the previous menu, Repeat steps 4~8 for length (f2) | GW Instek AFG-2225 User Manual User Manual | Page 171 / 301 See also other documents in the category GW Instek Equipment:
