11. Maintenance and Inspection
79

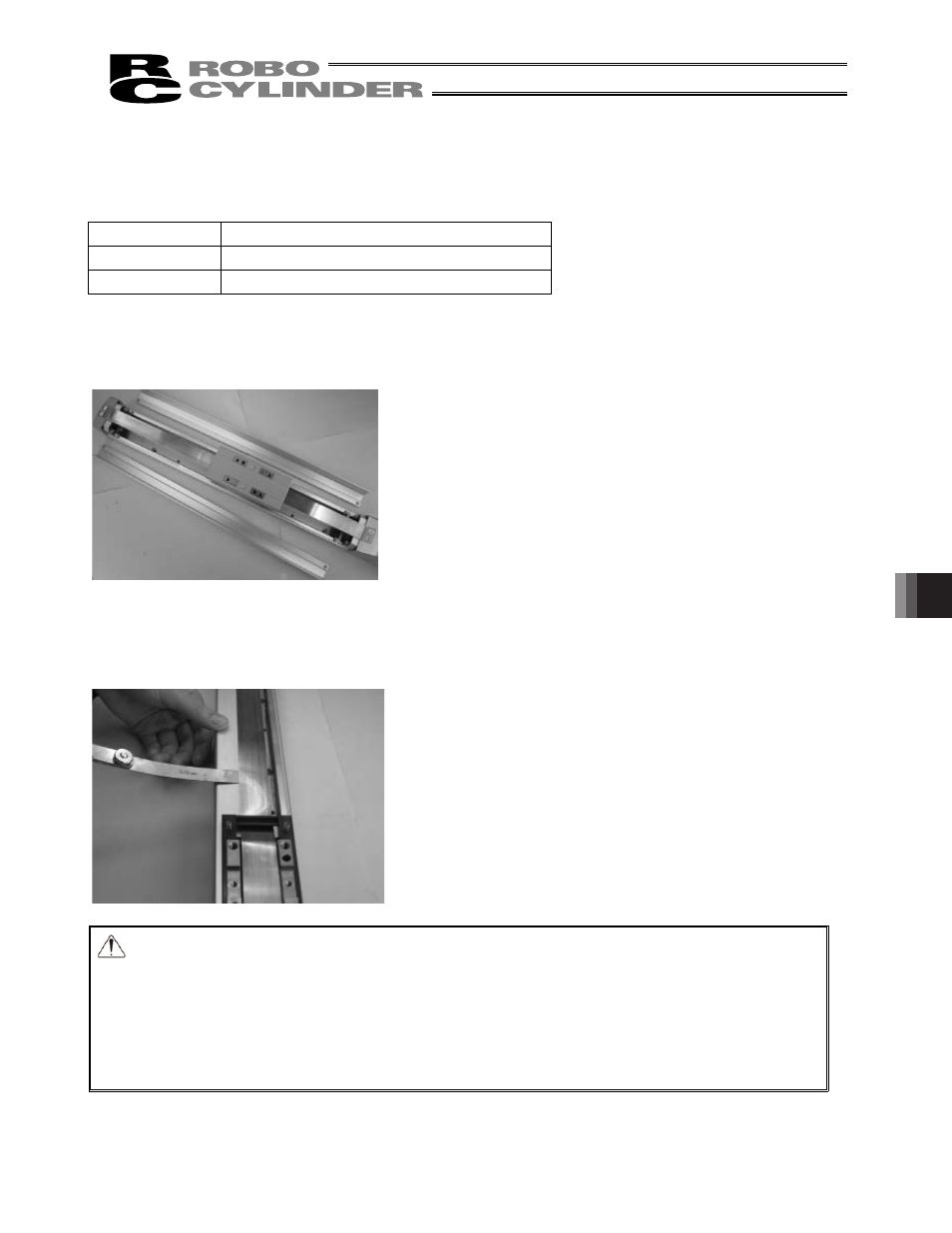

11.5 Interior Inspection
Turn off the power, remove the side covers, and then visually inspect the interior.
Check the following items during interior inspection.
Body Loose mounting bolts?
Guides Lubrication appropriate? Soiling?
Ball screw Lubrication appropriate? Soiling?
[RCS2 (CR)]
How to inspect the interior:
1) Remove both side covers.
Use an Allen wrench of 1.5 mm across flats.
2) If the grease becomes dirty and dull or if the grease has worn away due to extended operating time, lubricate
the parts after cleaning them.
3) When the inspection/maintenance work is complete, install the side covers.
Tightening torque: Thin-head screw M3 x 6 – 87.2 N�cm (8.90 kgf�cm)
Caution: � When checking the interior, be careful not to bend or scratch the stainless sheet.
Wear protective gloves when handling the stainless sheet, because it has sharp
edges that may cause accidental cuts.
The front cover is supporting the ball screw; so do not disassemble the front cover.
If the front cover is misaligned, the shaft centers may become offset, thus increasing
the traveling resistance, reducing the service life of each part, or generating noise.
� If the actuator is equipped with a microswitch (optional), carefully install the side
covers so that the switch cables are not pinched.
Make a visual check of the interior to see if there is
any dust or foreign matter in the unit and check the
lubrication. Even if the grease you see around the
parts is brown, the lubrication is fine as long as the
traveling surface appears shiny.
When installing the side covers, do not let them
contact the end faces of the stainless sheet. It may
damage or bend the stainless sheet, causing the sheet
to deteriorate or wear quickly. To prevent this problem,
insert a shim (approx. 0.1 to 0.2 mm) between the
sheet and each cover to provide an allowance, and
gently push in the cover.
