11. Maintenance and Inspection
127

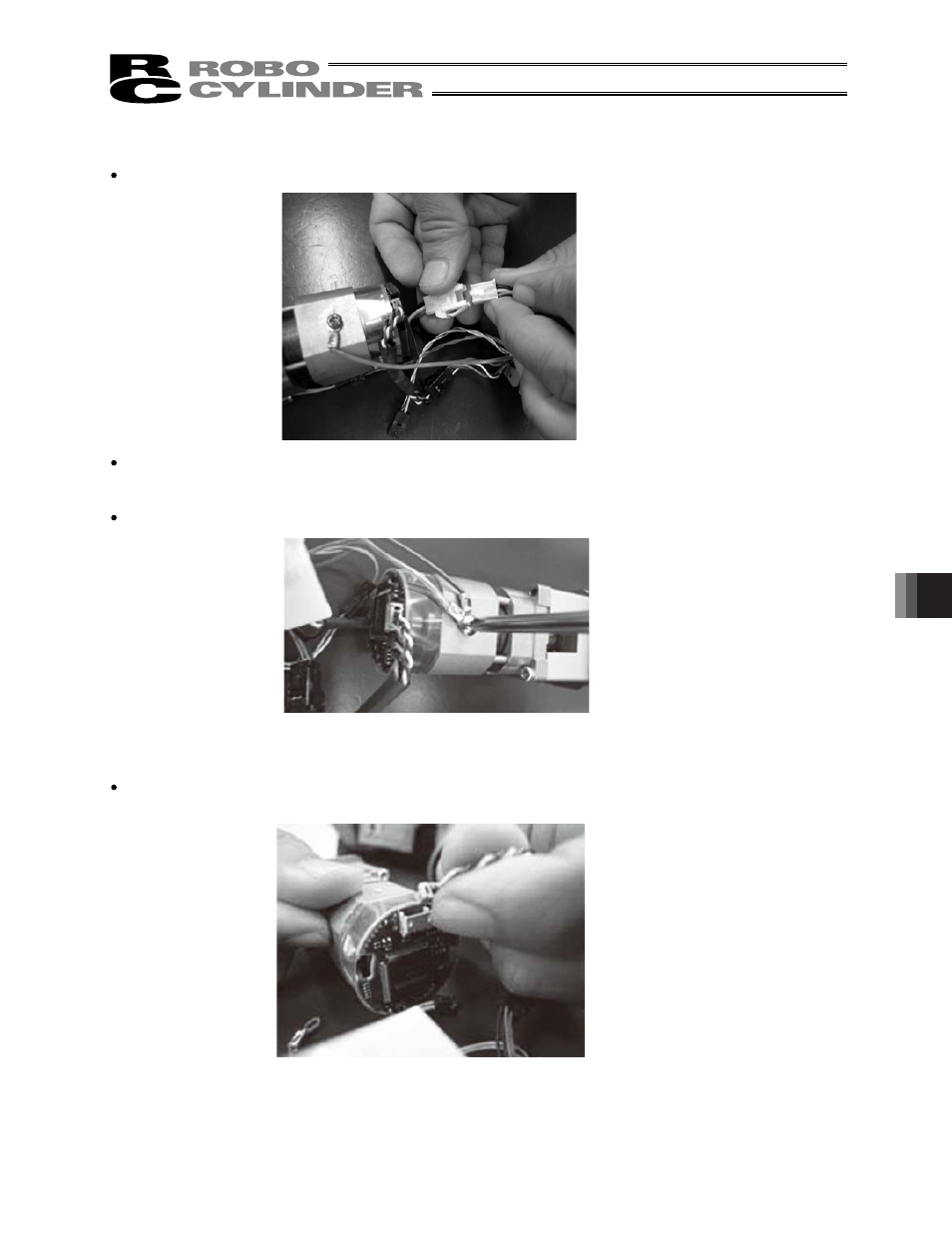

5) Detach the actuator cables.
Pull out the motor connector.
If the actuator has a brake, also detach the brake connector.
Remove the grounding wire using a Phillips screwdriver.
While holding the motor with one hand, pull out the encoder cable.
(The photograph bellow shows the motor (Encoder by IAI).)
