11. Maintenance and Inspection
170

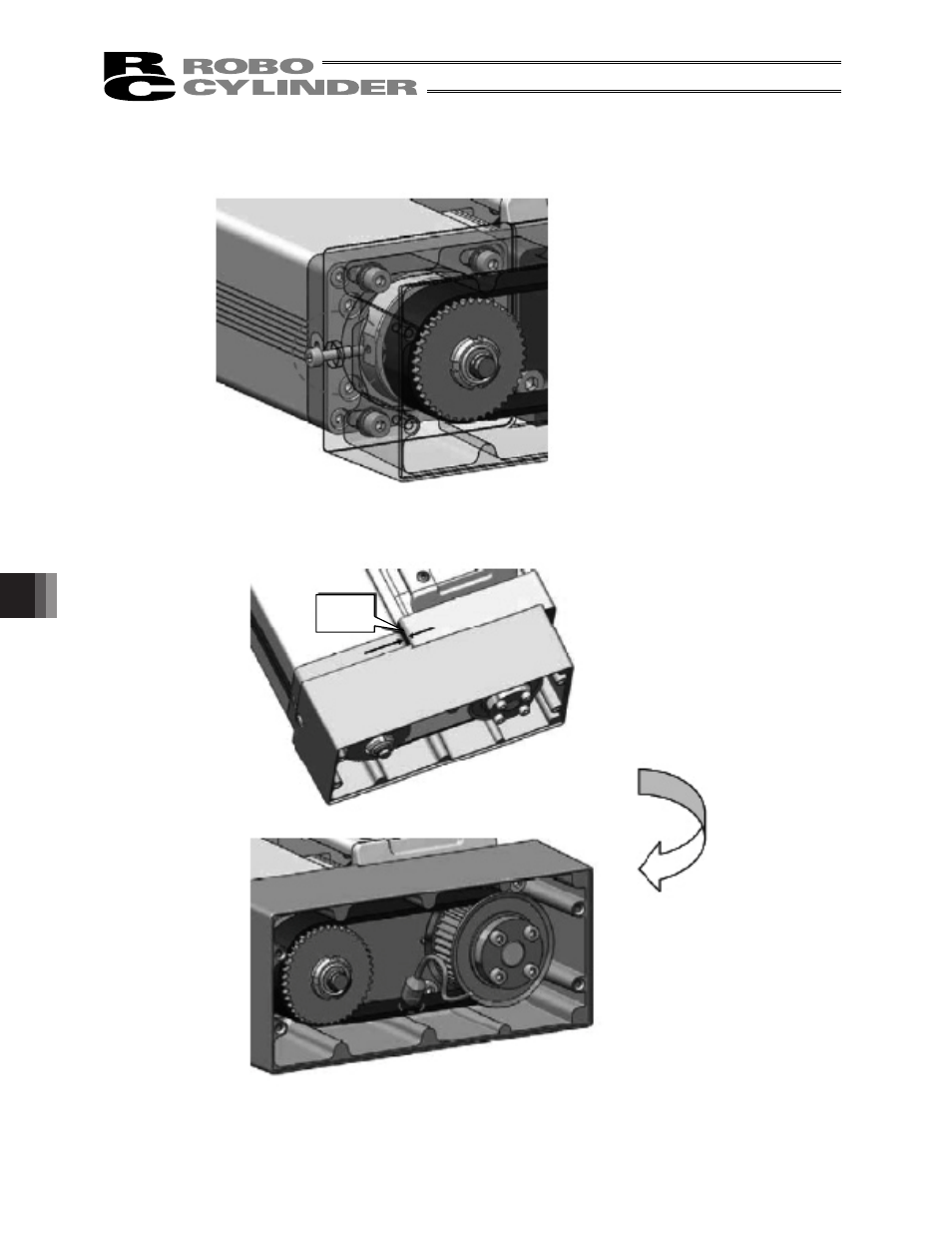

[3] Guide the hexagonal socket head bolt M3 x 15 through the hole left by the screw in [1] until it engages with
the tapped hole in the motor unit flange.
[4] Turn the tension bolt to gradually apply tension.
Once the gap between the motor unit and actuator becomes approx. 3 mm, measure the tension at the
center of the belt span.
Approx.
3 mm
