11. Maintenance and Inspection
90

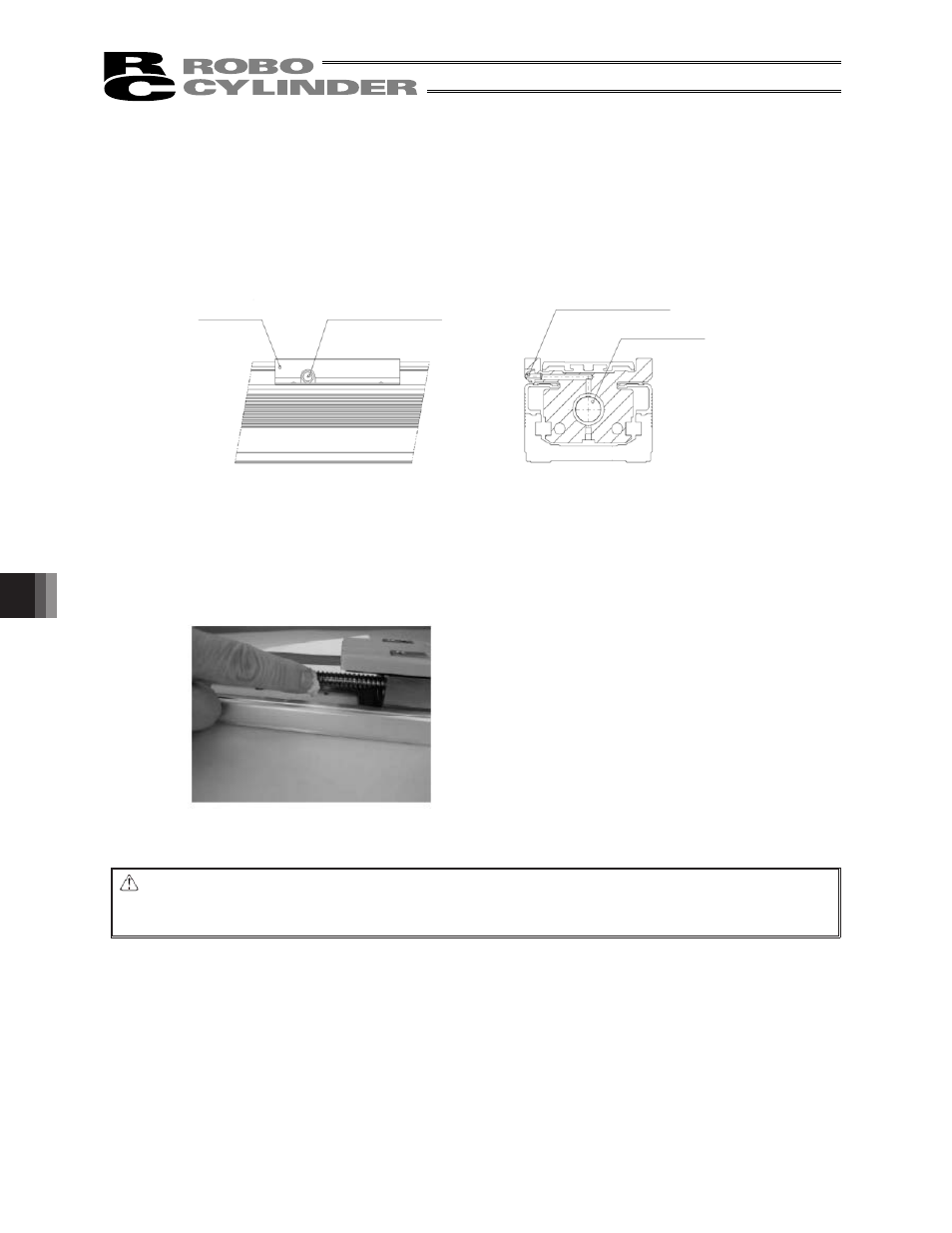

(2) How to apply grease to the ball screw
[RCS3(P) (CR)-SA8]
[1] Use a grease gun to add grease into the grease nipple provided on the side face of the slider.
[2] Move the slider back and forth several times by hand.
[3] Repeat the above steps to apply grease.
[4] Use a waste cloth, etc., to wipe off any grease that has overflowed from the slider.
[RCS3(P) (CR)-SS8]
1) Turn up one side of the stainless sheet to expose the interior.
2) Clean the ball screw, apply grease by hand, and then move the slider back and forth to let the grease
spread evenly.
Be careful not to let the ball screw contact, and deform, the stainless sheet.
Finally, wipe off any excess grease.
3) Install the stainless sheet.
Slider
Grease nipple holes
Grease nipple holes
Ball screw
Caution: In case the grease got into your eye, immediately go to see the doctor to get an appropriate care.
After finishing the grease supply work, wash your hands carefully with water and soap to rinse the
grease OFF.
